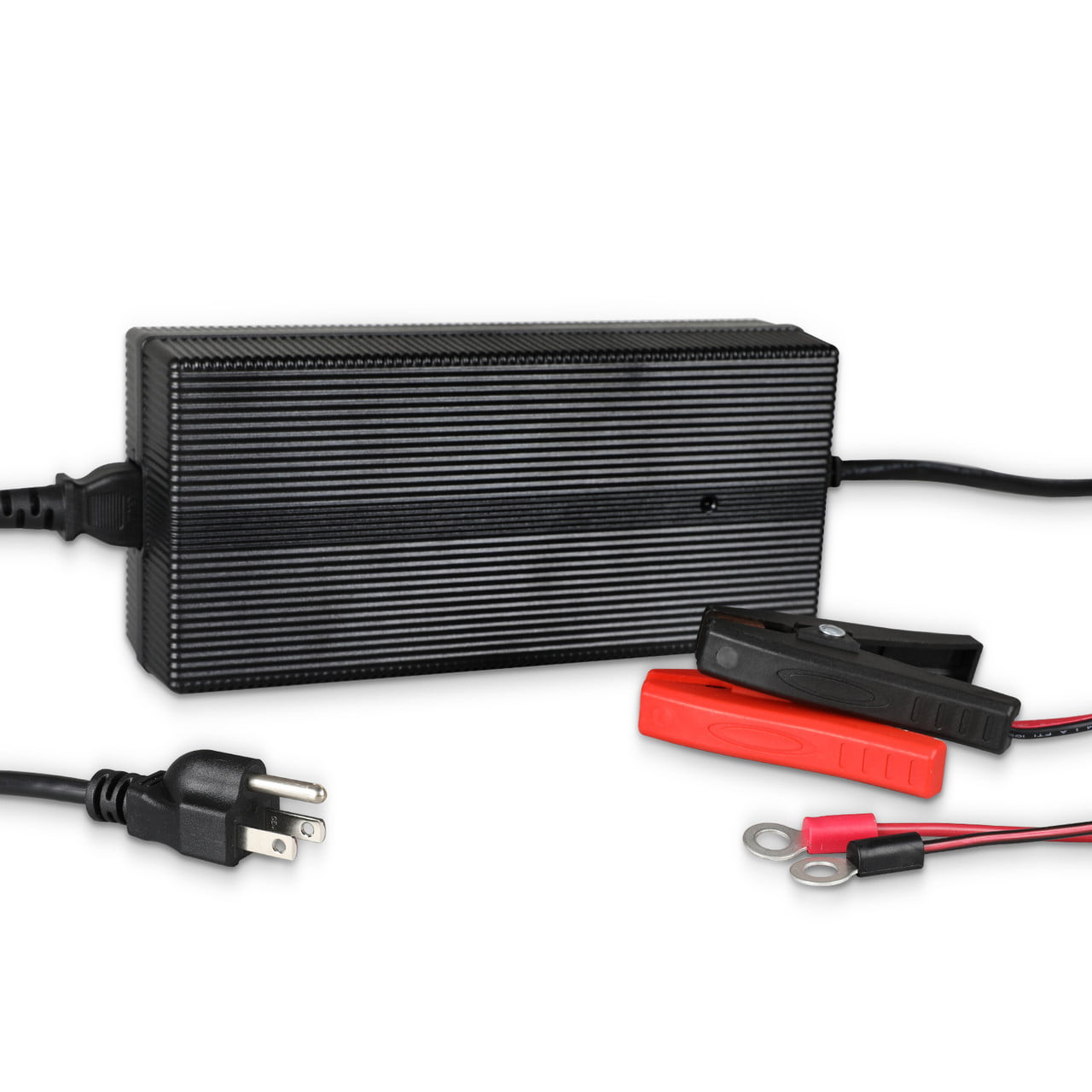

24V 10A AC-to-DC LFP Portable Battery Charger
【Born for Lithium Batteries】 This battery charger is designed for lithium batteries. When the lithium battery triggers the low temperature/low voltage while charging, the BMS will turn on the protection, which means the lithium battery cannot be charged and needs to be activated. This charger provides a lithium battery activation function that quickly exits the protection mode and recharges. Along with CE and UKCA certification, it provides a safe and stable AC charging environment.
【High Adaptability】 This battery charger has a wide AC input voltage range, 100-240 VAC 50/60Hz, which is compatible with various needs. The charger comes with two battery charging cables, one with alligator clips and the other with ring terminals. Rich wiring design to match different needs allows users to quickly establish the connection between the battery and the charger.
【Smart Charging】 The charger has a 3-stage intelligent charging design: high current (cc), constant voltage (cv), trickle. It can accurately identify battery voltage and automatically switch charging mode and provide fast and efficient charging for lithium batteries; the charger’s efficiency can reach up to 92%.
【Build-in Safety Protection】 The charger has six built-in protection functions to ensure charging safety, including short-circuit protection, over-current protection, over-temperature protection, over-voltage protection, under-voltage protection, and reverse polarity protection. The charger’s indicator light can remind the wrong charging status and achieves all-round monitoring and protection.
【Easy to Use】 Just plug and play operation to quickly establish the battery and charger connection. The product uses a patented plastic profile design, and the shell itself can achieve rapid heat dissipation. The fanless design brings users a zero-noise charging experience and reduces concerns about the installation angle and space of the product.
Package IncludesA ACtoDC LFP Portable Battery Charger xAC Charger Power Adapter Cable xRing Terminal Cable xAlligator Clips Cable xUser Manual xBlade Fuse x
100-240 VAC 50/60 Hz
Input Amps (Max):
Output Amps (Max):
91%@ 110VAC ,93%@230 VAC
Operating temperature range:
-29℃ – 45.5℃ / ‘-20.2℉ – 113.9℉
Storage temperature range:
-40℃ – 85℃ /’-40 ℉ – 185℉
90% – 95%
Input Circuit/Short Circuit/Over voltage/Under voltage/Over temperature/Battery reverse connection
Dimensions (L x W x D):
9.17 x 4.25 x 2.52in / 233 x 108 x64mm
1.7kg /3 lb
Ring Terminal Cable ：600 ± 60 mm 14AWG / 1.96 ± 0.19 ft 14AWG
Alligator Clips Cable ： 600 ± 60 mm 14AWG / 1.96 ± 0.19 ft
AC Charger Power Adapter Cable ：1200mm 18AWG / 3.93 ft 18AWG
Blade Fuse :15A
