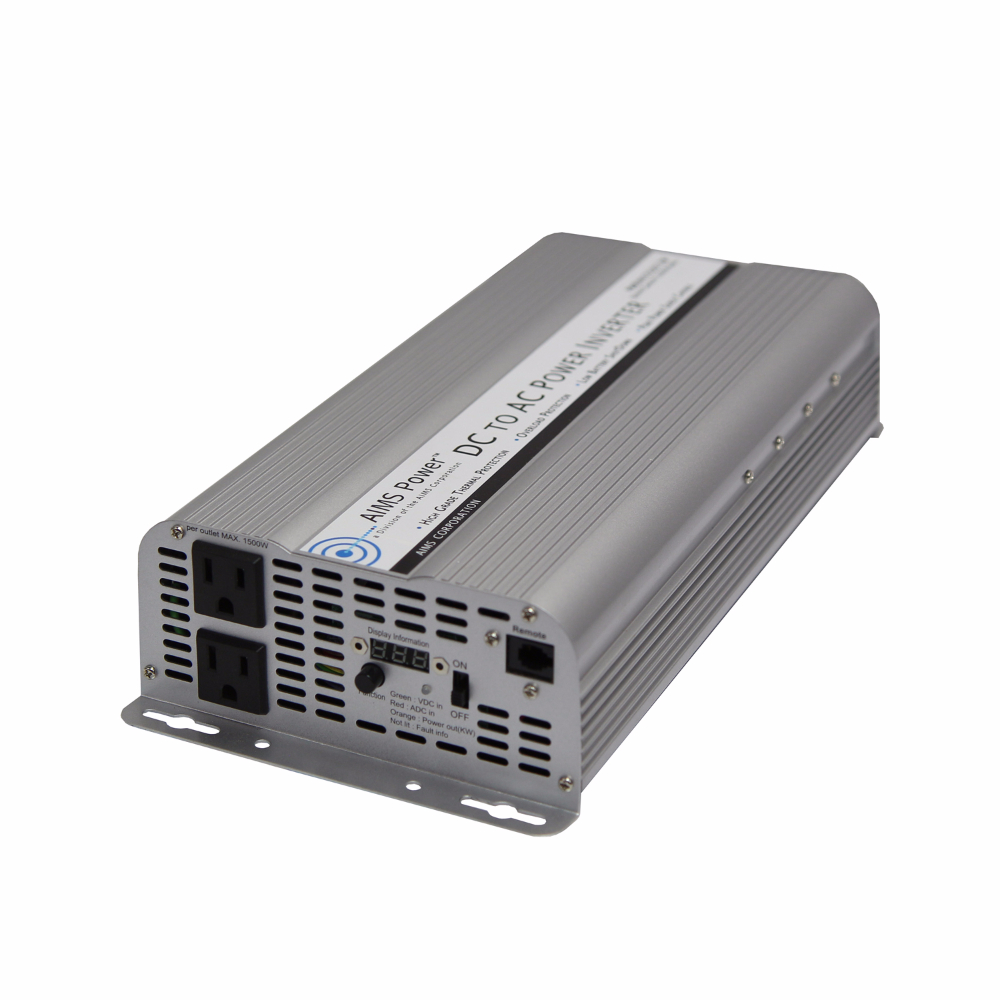

2500 Watt 12 Volt AIMS Power Inverter w/ Features ETA END OF AUGUST

$310.00

In stock

The 2500-Watt 12-Volt AIMS Power Inverter converts DC (direct current) power stored by deep-cycle batteries into AC (alternating current) electricity.

SKU: AP-PWRINV250012W Category:

$310.00

Product Quantity Discount Price per Unit
2 - 4 5% $294.50
5+ 10% $279.00

Description

  • 2500Watt max continuous power
  • 12 Volt Power Inverter
  • Modified sine wave
  • Volt meter on front panel to monitor your battery voltage
  • Amp meter on front panel to monitor your current use (rate at which battery is drained)
  • Over Temperature LED indicator
  • Over Load LED indicator
  • 2 AC receptacles (UL rated 1500 watts max per an outlet)
  • On/off switch
  • Over Temperature protection
  • Over Load protection Single cooling fan operation thermally controlled Internally fuse protected ac output short circuit protection
  • Auto reset on most fault conditions
  • Aluminum case for optimal cooling
  • Pre-wired for remote on/off switch
  • Pre-slotted mounting plate
  • Instruction manual
  • Free 1 year tech support
  • 1 Year Warranty Parts and Labor
  • Continuous output power: 2500 Watts
  • Surge power capability (peak power): 5000 Watts
  • dc input / operating voltage: 10.5 to 17 Volts
  • Output voltage: 120 Volts ac +/- 10%
  • Output wave form: modified sine wave with phase correction
  • Output frequency: 60 Hz +/- 1 Hz
  • Battery low voltage alarm: 10.5 +/- 0.5 Volts
  • Battery low voltage shutdown: 10 +/- 0.5 Volts
  • No load current: < 0.2 Amps
  • Full load efficiency: 90%
  • 1/3 load efficiency: 95%
  • No load minimum operating temperature: -15 degrees Celsius
  • Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
  • AC Output Socket Type: quadruple Type 2 -3 prong
  • High input voltage protection: 17 volts
  • Low input voltage shutdown: 10 volts
  • Internal fuse protection
  • Product size (L x W x H): 14.5”X 6.5”X 3.0rdquo;
  • Weight: unit 10 lbs boxed 12 lbs
  • UL maximum recommended per outlet 1500W
