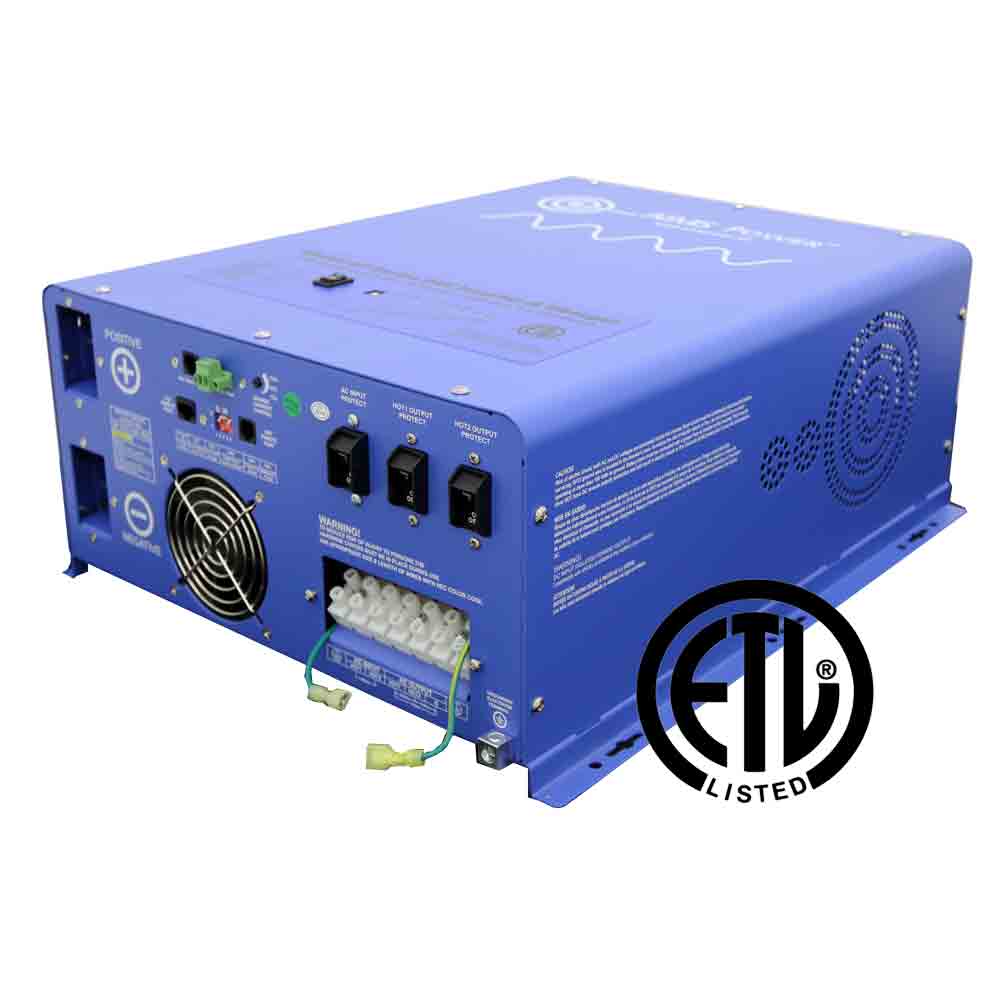

6000 WATT PURE SINE INVERTER CHARGER 24Vdc TO 120Vac OUTPUT LISTED TO UL & CSA

$2,459.00

In stock

AIMS Power 6000 Watt Pure Sine Low Frequency Inverter, single phase with built-in battery charger and transfer switch. This inverter charger is perfect for large-sized industrial applications that depend upon power being available even under heavy load. This heavy-duty inverter charger is ready to go wherever you need it. Use this product for renewable solar, off-grid, business back up power, mobile and emergency backup power applications anywhere that uses 100/110/120 volts of alternating current. This product also has auto frequency detection that allows users to operate at either 50 or 60 hertz.

SKU: AP-PICOGLF6024120UL Category:

$2,459.00

Product Quantity Discount Price per Unit
2 - 4 5% $2,336.05
5+ 10% $2,213.10

Description

  • 6000 watt low frequency inverter
  • 18000 watt surge for 20 seconds 300% surge capability
  • 24 Volt DC
  • Single phase 120Vac output
  • Listed to UL 458, 1741, 1012 and CSA 22.2 NO. 107.1 & 107.2
  • Battery priority selector
  • Terminal block
  • Marine coated and protected
  • Multi stage smart charger 60 Amp charges GEL, Lead, AGM, Lithium
  • Remote panel available LED or LCD
  • Auto frequency
  • 10msec typical transfer time
  • Selectable 25W power save mode (hibernation)
  • 7 battery type settings for charger
  • Allows start up and through power with depleted batteries
  • Continuous output power: 6000 Watts
  • Surge rating: 18000 Watts (20 Seconds)
  • Output waveform: Pure Sine/Same as input (Bypass Mode)
  • Output voltage 100-110-120Vac
  • Output breaker: 80 Amps
  • Nominal efficiency: >88% (Peak)
  • Line mode efficiency: >95%
  • Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical transfer time: 10ms (Max)
  • THD: < 10% DC
  • Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)
  • Input Specifications
    • Nominal input voltage: 24.0Vdc
    • Minimum start voltage: 20.0Vdc
    • Low battery alarm: 21.0Vdc-22.0Vdc
    • Low battery trip: 20.0Vdc-21.0Vdc
    • High voltage alarm: 32.0Vdc
    • Low battery voltage restart: 26.6Vdc
    • Idle consumption: 52.5 watts
    • Idle consumption with power saver mode ON: <25 watts

    Charger Specifications

    • Output voltage: depends on battery Type
    • Charger rate: 60A
    • Over charge protection shutdown 31.4V
    • Selectable charge setting based on battery type
    • Adjustable charge current: off-15%-100%
    • Four stage smart charger

    Transfer Switch Specifications

    • 80 amp automatic transfer switch
    • 10 ms (max)
  • Listed to UL 458, 1741, 1012 and CSA 22.2 NO. 107.1 & 107.2
  • 2 Year warranty
    Dimensions

    • Unit Weight: 108 lb.
    • Unit Size L x W x H: 19 x 16.5 x 8 inches
    • Shipping Weight: 113 lb
    • Shipping L x W x H 30.5 x 14.25 x 13.75 inches
