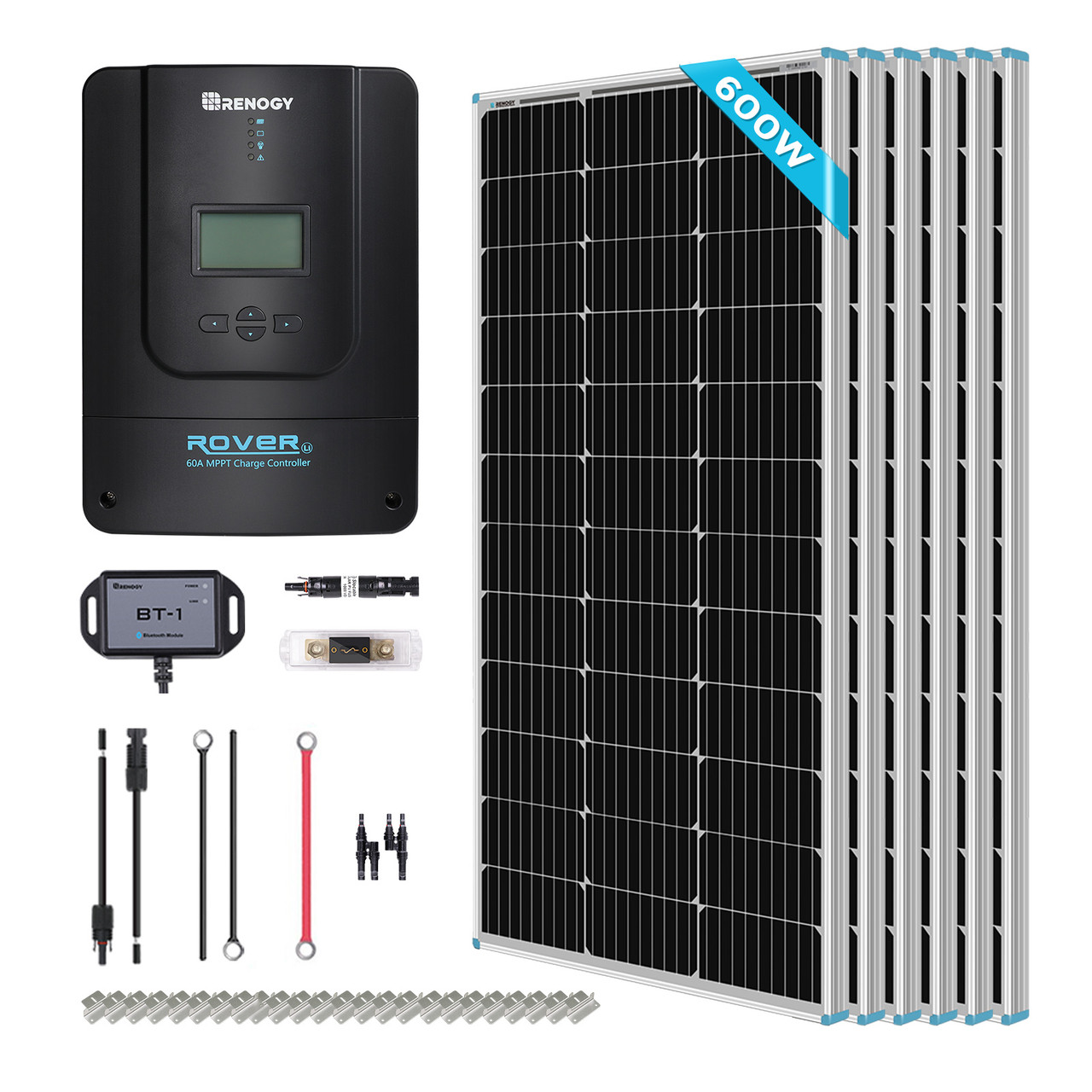

600W 12V/24V Monocrystalline Solar Premium Kit w/Rover 60A Charger Controller
【Work with Renogy ONE】 Add Renogy ONE Core to achieve smart energy monitoring with intuitive visuals and real-time data. This all-in-one display provides you access to accurate energy system data anywhere, anytime via the DC Home app.
【Efficient Performance】 The Premium Kit will produce an average of 2.5-3kWh of electricity per day (Based on 5 hours of direct sunlight conditions). The bypass diode can ensure the panel has an excellent performance in a low-light environment and the TPT back sheet dissipates excess heat to ensure smooth output performance. The Module Efficiency can reach 17.9%.
【Solid Quality】 Advanced encapsulation material with multi-layered sheet laminations protects cells from physical damage or distortion, improving cell performance and providing a long service life.
【Ready to Install】 This Renogy Solar Kit includes the equipment necessary for building a new system, such as necessary cables, Z-brackets, and pre-drilled holes on the back frame of the panel, allowing fast and secure mounting. With the Rover Li 60A MPPT charge controller, the kit can meet your further power needs by adding more of the same solar panels; for example, a 12V system expandable up to 800W solar wattage and a 24V system expandable up to 1600W.
【Stay Connected】 Easily monitor by your phone. The BT1 Bluetooth module can pair with Renogy DC Home App and transmits system operation data directly to your phone, the Bluetooth signal available up to 82ft.
【Full System Protection】 The Rover Li 60A MPPT Charge Controller has built-in protection to safeguard your systems, such as reverse polarity protection, overcharging protection, overload protection, short circuit protection, etc. This kit is also equipped with an In-line fuse and ANL fuse components, devised to add overcurrent protection on your charge controller and battery bank.
Package IncludesW Mono Solar Panel xRover Li A MPPT Charge Controller xft AWG AKft AWG Fuse Cableft AWG Tray Cable xMounting Z Brackets Set xA Inline Fuse andA ANL Fuse xRenogy Solar Y Branch Connectors MMFFFM Pair xBT Bluetooth Module x
Maximum System Voltage:
600V DC (UL)
Open-Circuit Voltage (Voc):
Optimum Operating Voltage (Vmp):
Short-Circuit Current (Isc):
Optimum Operating Current (Imp):
41.8 x 20.9 x1.4 in
12V/24V/36V/48V Auto Recognition (for non-lithium batteries)
Rated Charge Current:
Rated Load Current:
Max. PV Input Voltage:
150 VDC (25°C), 140VDC (-25°C)
Max. PV Input Power:
800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Renogy BT-1 Bluetooth module
-40°F to +185°F
AC Uo/U 0.6/1 KV, DC 1.8KV
-40°F to +194°F
-40°F to +185°F
1000 V DC
Copper, Silver Plated
Cylindrical PV Fuse (10x38mm
All Renogy Controllers with RJ12 port
-20°C~85°C (-4°F to 185°F)
1000V DC(TUV), 600V(UL)
-40°F to 194°F
Eight Long Cap Bolts and Four Short Bolts:
Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets:
25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
1-year material and workmanship warranty
