EV27A-A 12v 100ah Discover Battery Deep Cycle AGM Floor Scrubbers, and More


In stock

SKU: 404082308990 Category:


Product Quantity Discount Price per Unit
2 - 4 5% $407.55
5+ 10% $386.10

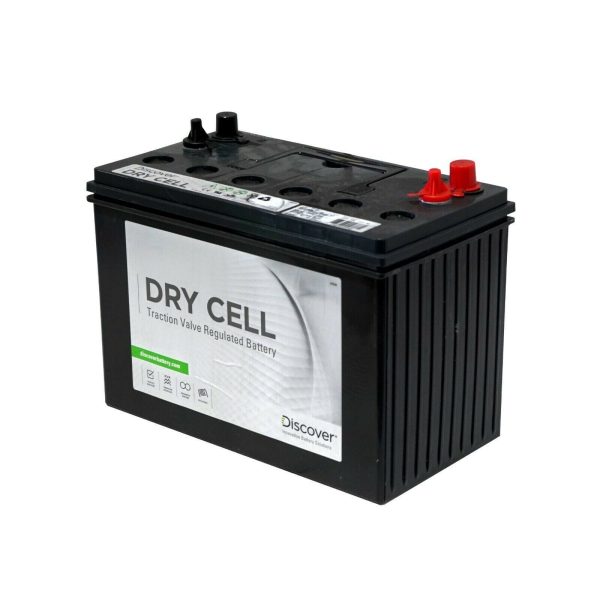

Discover EV27A-A  PERFORMANCE SPECIFICATIONS  Amp Hours (AH) 3 HR 5 HR 20 HR 80 90 100 3 HR: 1.70VPC; 5 HR: 1.75VPC; 20 HR: 1.80VPC. All at 25°C/77°F   Minutes of Discharge @25A @56A @75A @85A @100A 205 73 50 45 35   BCI: 27 JIS: D31R OLD JIS: N70 Discover® DRY CELL Traction Industrial batteries outperform traditional Flooded, AGM, and Gel deep-cycle batteries in demanding traction and industrial applications. The batteries are designed to deliver a long runtime, high operating current and withstand deep discharge and are ideal for powering equipment that is used multiple times a day. DRY CELL Traction Industrial batteries have been used and trusted for more than ten years by the world’s largest industrial Original Equipment Manufacturers. Specific charge algorithms are available that support optimal battery performance and longevity. MECHANICAL SPECIFICATIONS Industry Reference BCI: 27 JIS: D31R OLD JIS: N70 Length A (in/mm) 12.1 308 Width B (in/mm) 6.8 172 Height C (in/mm) 8.3 212 Total Height D (in/mm) 9.1 232 Weight (lbs/kgs) 62.7 28.5 Terminal * AM Technology DRY CELL AGM, VRLA NOTE 1: Dimensions have a ±2 mm (0.08 in) tolerance. Weights may vary.NOTE 2: Refer to terminal guide on website for torque values. ELECTRICAL SPECIFICATIONS Voltage (V) 12 Voltage Cutoff (80% DOD) 11.40 Internal Resistance (mΩ) 5 Short Circuit (A) (20°C / 68°F) 2900 Self-Discharge (20°C / 68°F) 2-3% per month Charge Temperature Min: -10°C (14°F) | Max: 50°C (122°F) Discharge Temperature Min: -40°C (-40°F) | Max: 50°C (122°F) Storage Temperature Min: -20°C (-4°F) | Max: 60°C (140°F) NOTE 3: Extra considerations must be given when designing systems for use at maximum temperatures.NOTE 4: Internal Resistance is approximate. FEATURES HYDRO POLYMER Organic capillary separators with hydro polymer electrolytes resist dry-out and prevent thermal runaway Maintains performance characteristics over operational life ENHANCED ALLOYS Thick plates with graphite-enhanced alloys deliver maximum runtime over the operational life CARBON BOOST Carbon additives to increase duty cycle performance, charge acceptance, and partial state of charge operation AUTOMATED THROUGH-THE-PARTITION WELD Improved intercell weld consistency, and less lead waste than manual welding process (key models) Supports higher current loads and lowers internal resistance POLYPROPYLENE CASE High heat resistance and durability (key industry models) High precision pressure relief valves reduce water loss and extend life Integrated flame arrestors prevent fire and explosion BENEFITS ENHANCED RUNTIME High amp hour capacity High operational voltage over lifetime Delivers 80% DoD above 1.9 VPC EXTENDED SERVICE LIFE Long life superior to deep-cycle FLA / AGM / Gel batteries 550+ cycles 70% DoD (IEC 254-1 Traction Lead-Acid) 350+ cycles 100% DoD (DIN 43 539 VRLA) RESILIENCE Partial stage of charge operation superior to AGM Intense duty cycling superior to AGM / Gel Overcharge and over-discharge resilience superior to AGM Compatible with AGM / Gel semi-traction charge profile EXTREME TEMPERATURES High-temperature life superior to AGM Low-temperature operation superior to FLA / AGM / Gel batteries EXTREME VIBRATION RESISTANCE Vibration resistance superior to AGM / Gel Shock tested (IEC 61373, DIN EN 61373, SAE J537) OEM TRUSTED Exceeds OEM specifications Innovative technology Global service and support RELIABLE AND SAFE Valve Regulated Lead-Acid, Dry Cell AGM Maintenance-free, nonspillable, no-gassing Spark and explosion tested (SAE J1495) CERTIFIED QUALITY Discover® manufacturing facilities are fully certified to ISO 9001/14001 and OSHA 18001 standards. Designed in accordance with and published in compliance with applicable standards, including: IEC 60254-1. Lead-Acid Traction DIN 43 539. VRLA SAE J537. Storage UL, CE Health Safety Certified Due to self-discharge characteristics of lead-acid battery technologies, batteries should be top charged within 6 months of storage to ensure optimum performance, prevent sulphation and permanent capacity loss. Charge profile recommendations correspond to battery voltages at 25°C (77°F). For temperatures below, adjust +5mVPC/°C (+3mVPC/°F). Temperatures above, adjust -5mVPC/°C (-3mVPC/°F). Temperature compensated charging helps ensure optimum battery runtime and life performance. Charge profile recommendations depend on application and charger. IUI (or IUI with Pulse) is appropriate for applications that require frequent and deep discharges. IUU is appropriate for applications that are on standby and cycled less frequently. IUI with Pulse algorithm uses a pulse termination criterion. The finish current is pulsed on and off in order to keep the battery voltage at a minimum while still reaching target overcharge. If average VPC exceeds U4 and the charger output has been on for more than 30 seconds, the output is shut off until VPC falls to U3. IUI Charge Profile (if applicable), may have a continuous float phase added (2.27VPC).


Additional information

Weight 59.00 lbs
Dimensions 14 × 14 × 14 in
