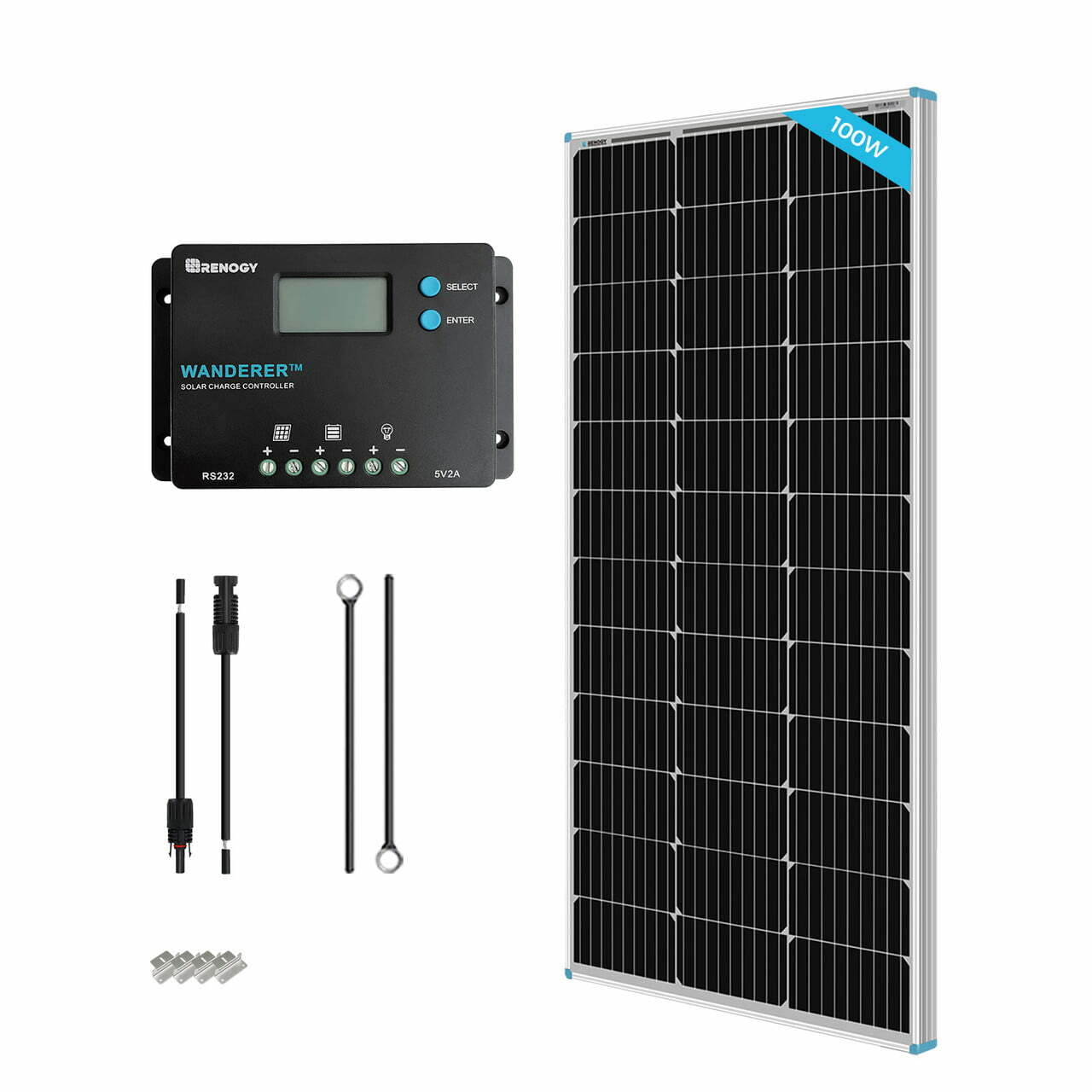

Open Box 100W 12V Monocrystalline Solar Starter Kit w/Wanderer 10A Charge Controller
$142.00
【Efficient Performance】 The Starter Kit will produce an average of 500Wh of electricity per day (Based on 5 hours of direct sunlight condition). The Cell Efficiency can reach 22%. The bypass diode can ensure the panel has an excellent performance in a low-light environment and the TPT back sheet dissipates excess heat to ensure smooth output performance.
【Solid Quality】 Advanced encapsulation material with multi-layered sheet laminations protects cells from physical damage or distortion, improving cell performance and providing a long service life.
【Smart Function】 The Wanderer PWM Charge Controller is compatible with four different types of batteries: sealed, Gel, Flooded, and Lithium batteries. It also features advanced 4-stage charging (bulk, boost, float, and equalization) to ensure your battery is efficiently and safely charged to 100%.
【Full System Protection】 The Wanderer PWM Charge Controller has built-in protection to safeguard your systems, such as reverse polarity protection, battery overcharging protection, overload protection, and short circuit protection.
【Ready to Install】 This Renogy Solar Kit includes the equipment necessary for building a new system. The necessary cables, Z-brackets, and pre-drilled holes on the back frame of the panel allow fast and secure mounting.【NOTE】All items that have been returned by a customer. There may be scratches on the surface or other cosmetic damage to the items, but this will not affect the performance of the products. All items listed have been thoroughly tested before being repackaged. Pictures may vary from the actual charge controllers received.
Description
Package IncludesW Mono Solar Panel xWanderer A PWM Charge Controller xMounting Z Brackets xRenogy ft AWG Solar Adaptor Kit A pair xRenogy ft AWG Tray Cables A pair x
Maximum Power:
100W
Maximum System Voltage:
600V DC (UL)
Open-Circuit Voltage (Voc):
22.3V
Optimum Operating Voltage (Vmp):
18.6V
Short-Circuit Current (Isc):
5.86A
Optimum Operating Current (Imp):
5.38A
Dimensions:
1062x530x35mm (41.8×20.9×1.38in)
Weight:
14.3lbs/6.5kg
Nominal Voltage:
12V/24V Auto Recognition
Rated Charge Current:
10A
Max Gauge Size:
Up to 12AWG
Max. PV Input Voltage:
50 VDC
Self-Consumption:
<10mA
Temperature Compensation:
-3mV/°C/2V
Dimensions:
4.7 x 3.0 x 1.1 in / 119 x 75 x 27.5mm
Weight:
0.27 lbs / 122.47g
Length:
8ft
AWG:
12
Rating Voltage:
600/1000V
Temperature:
-40°F to +185°F
Length:
20ft
AWG:
12
Rating Voltage:
600/1000V
Temperature:
-40°F to +185°F
Eight Long Cap Bolts and Four Short Bolts:
Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets:
Four Nuts
Panels:
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 10-year material and workmanship warranty
Accessories:
1-year material warranty
