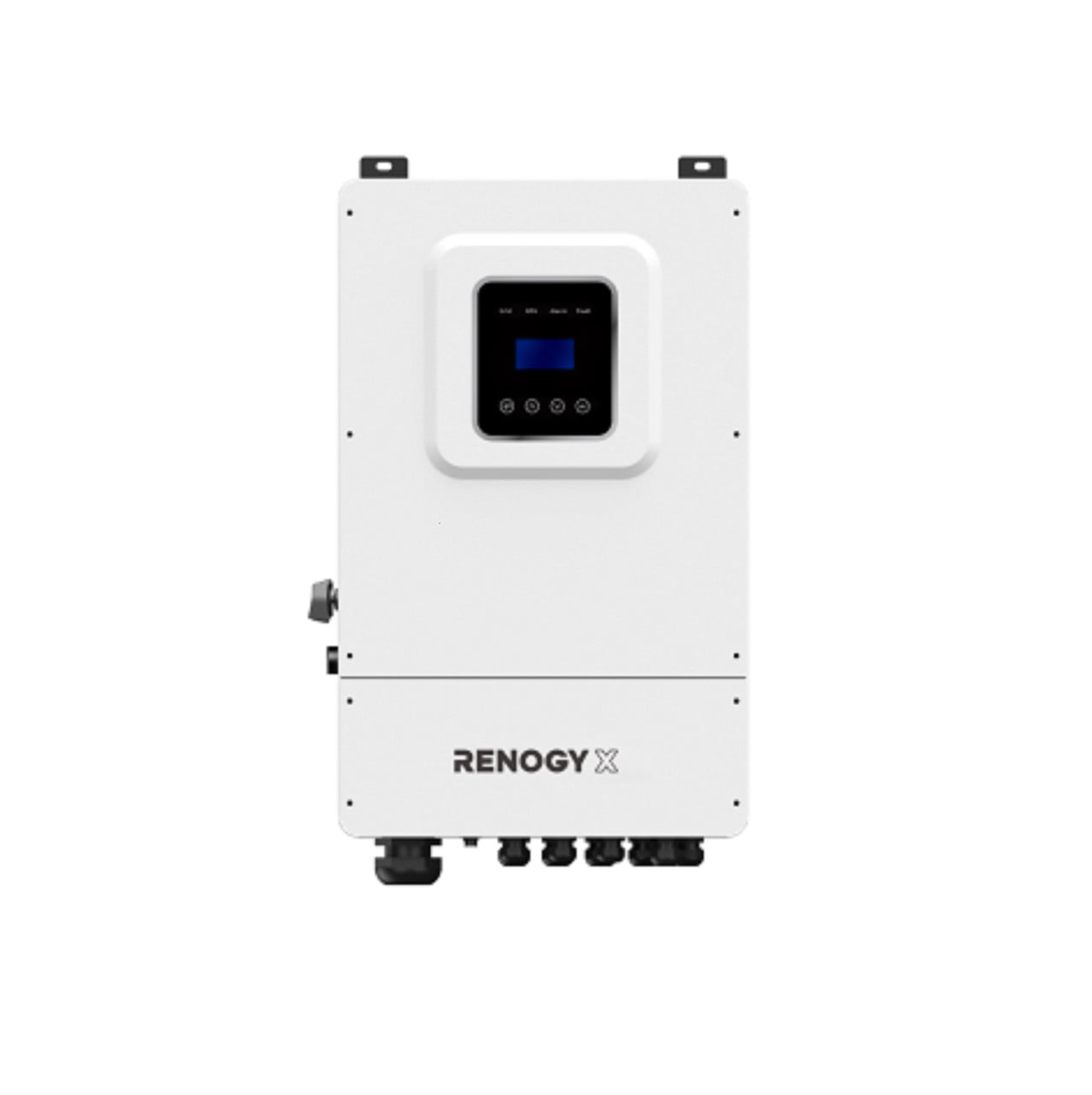

Renogy X Inverter

Package IncludesRenogy X InverterRenogy X Invrter x

Max. Power (kw):
12

Max. DC Voltage (V):
500

MPPT Voltage Range (V):
120-500

Max. Input Current of Single MPPT (A):
12

MPPT Tracker/Strings:
4/1

opc:


Rated Output Power (kVA):
7.6

Max. Output Current (A):
35

AC Output Voltage (V):
120/240 (split phase)

THDi:
<3%

Battery Voltage Range (V):
40-58

Max. Charging Voltage (V):
58

Max. Charge/Discharge Current (A):
190/190

Battery Type:
Lithium / Lead-Acid

Rated Power (kVA):
8

Rated Output Voltage (V):
120/240 (split phase)

Rated Output Current (A):
38.3

Automatic Switching Time (ms):
<20

Max. Efficiency:
≥98.2%

Ingress Protection:
IP65/NEMA 3R

Operation Temperature (F/C):
-13°F to 140°F (-25°C to 60°C)

Cooling:
Natural

Dimensions W x D x H (in):
17.72 x 8.66 x 27.95

Weight (lbs):
90.39

Display:
LCD

Interface:
RS485/Wifi/4G/CAN

Safety Standard:
UL1741SA All Options, UL1699B, CSA 22.2

EMC:
FCC Part 15, Class B

Warranty:
10 Years

opc:
