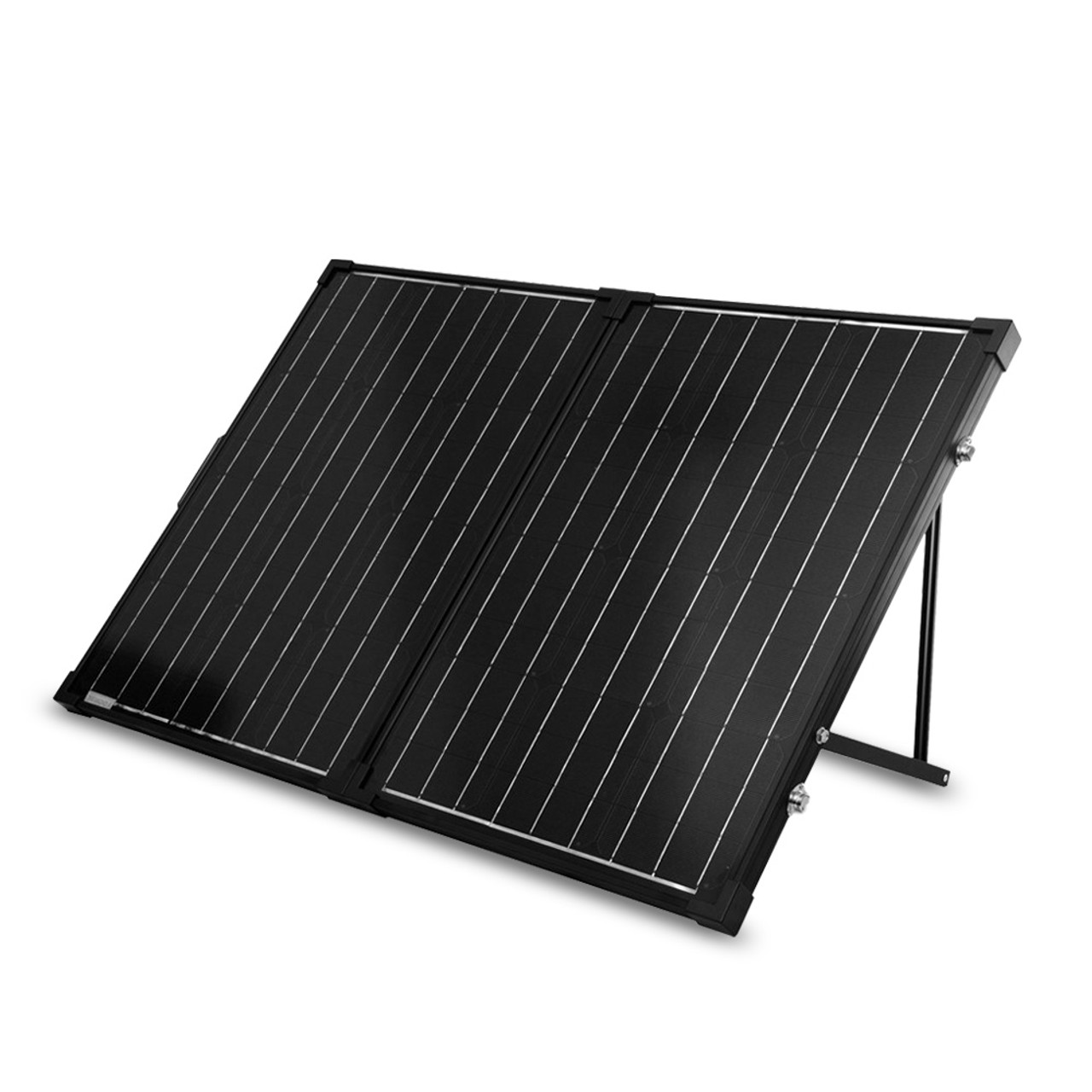

100 Watt 12 Volt Monocrystalline Foldable Solar Suitcase w/o Controller

Package Includes Renogy Watt Mono Foldable Solar Suitcase wo Controller x

Junction Box:
One single hole and one double hole junction box

Cell Type:
158 monocrystalline

Number of Cells:
72(3*12*2)

opc:


Maximum Power at STC:
100W

Cell Efficiency:
22%

Optimum Operating Voltage (Vmp):
20.3V

Open-Circuit Voltage (Voc):
24.3V

Optimum Operating Current (Imp):
2×2.47A

Short-Circuit Current (Isc):
2 x 2.73A

Operating Temperature:
40°F to 185°F

Maximum Series Fuse Rating:
20A

Maximum System Voltage:
600VCD(UL)

Weight:
9.3kg /20.5lbs

Maximum AWG Size Range (MC4):
30A

Dimensions:
630x509x70 mm/24.8x20x2.8 in

Material and workmanship warranty:
3 years

Performance Warranty:
5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
