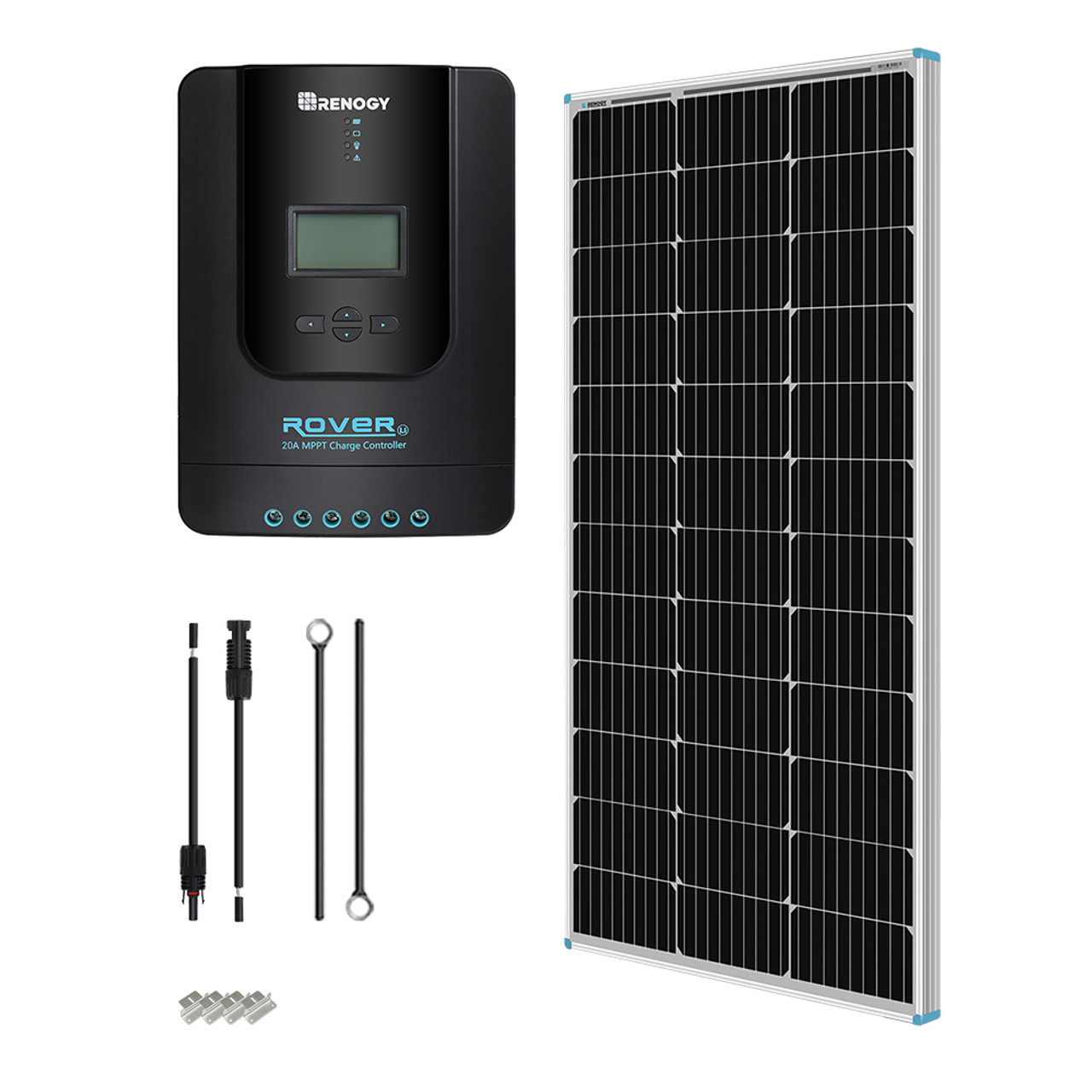

100 Watt 12 Volt Solar Starter Kit with 20A/40A MPPT Charge Controller

Maximum Power::
100W

Maximum System Voltage: 600V DC (UL):
600V DC (UL)

Optimum Operating Voltage (Vmp)::
18.9V

Open-Circuit Voltage (Voc):
22.5V

Optimum Operating Current (Imp):
5.29A

Short-Circuit Current (Isc):
5.75A

Dimensions:
47.0 X 21.3 X 1.4 inches

Weight:
16.5lbs

Nominal system voltage:
12V/24V Auto Recognition

Rated Battery Current:
20A

Rated Load Current:
20A

Max. PV Input Short Current:
25A

Max. Battery Voltage:
32V

Max Solar Input Voltage:
100 VDC

Rated Battery Current:
40A

Rated Load Current:
20A

Max. PV Input Short Current:
50A

Max. Battery Voltage:
32V

Max Solar Input Voltage ::
100VDC

opc:


Length:
8ft

AWG:
8 Or 10

Rating Voltage:
600/1000V

Temperature:
-40°F to +185°F

Length:
20ft

AWG:
10

Rating Voltage:
600/1000V

Temperature:
-40°F to +185°F

Eight Long Cap Bolts and Four Short Bolts:
Four Spring Washers and Four Washers

Four Z Shape Solar Panel Brackets:
Four Nuts

Panels:
25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories:
1-year material and workmanship warranty
