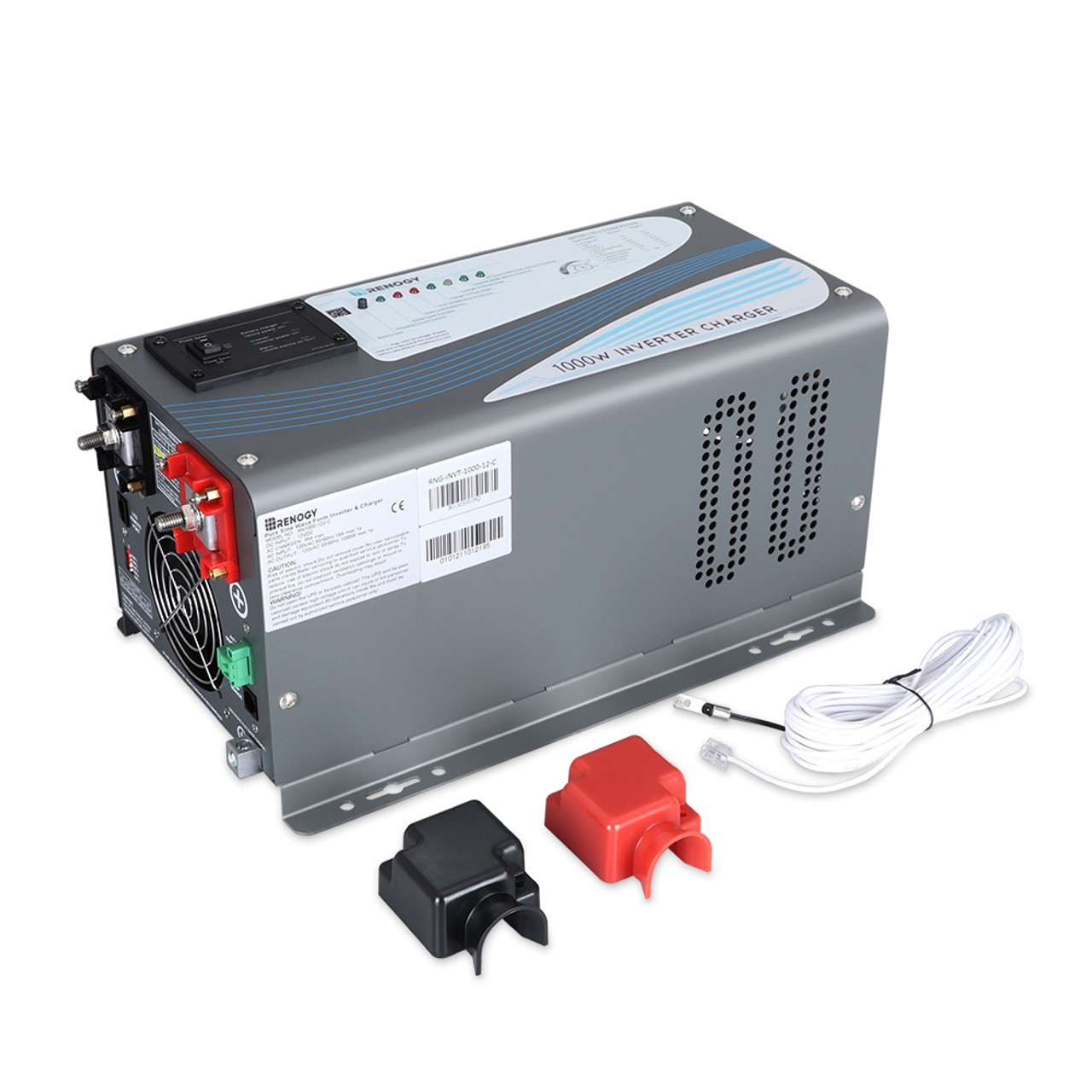

1000W Pure Sine Wave Inverter Charger

$289.99

Out of stock

SKU: RY-RNG-INVT-1000-12V-C-US Category:

$289.99

Description

Package Includes Renogy W Pure Sine Wave Inverter Charger xRenogy Battery Temperature sensor x


General

Nominal Voltage:
120 VAC

Low Voltage Re-engage:
100V ± 4%

High Voltage Re-engage:
135V ± 4%

Nominal Input Frequency:
50Hz or 60Hz (Auto Detect)

High Frequency Trip:
55Hz for 50Hz

Overload Protection:
Circuit Breaker

Transfer Switch Rating:
10A

Line Transfer Time:
10ms

Dimensions:
15×8.5×7 Inches

Low Voltage Trip:
90 ± 4%

High Voltage Trip:
140V ± 4%

Max AC Input Voltage:
150 VAC

Low Frequency Trip:
47Hz for 50Hz

Output Waveform:
Bypass Mode

Short Circuit Protection:
Circuit Breaker

Efficiency on Line Transfer Mode:
95%

Bypass Breaker Rating:
10A

Weight:
39.68lbs

cables:
Inverter charger does not include the inverter cables

opc:



Inverter Charger Specification Output

Output Wave Form:
Pure Sine Wave

Continuous Power VA:
1000W

Nominal Output Voltage RMS:
120VAC

Output Frequency:
50Hz ± 0.3Hz

Surge Ratings:
2000W

Output Continuous Watts:
1000W

Power Factor:
0.9-1.0

Output Voltage Regulation:
± 10% RMS

Nominal Efficiency:
>88%

Short Circuit Protection:
Yes, fault after 1 second


Inverter Charger Specification Input

Nominal Input Voltage:
12V

Low Battery Alarm:
10.5V

High Voltage Alarm:
16V

Minimum Start Voltage:
10V

Low Battery Trip:
10V

Power Saver:
<25W


Inverter Charger Mode Specification

Input Voltage Range:
99-130VAC

Output Voltage:
12V

Charge Current:
30A MAX

Battery Initial Voltage for Startup:
10V

Over Charge Protection Shutdown:
15.7V

opc:


WARRANTY INFORMATION

Inverters:
1-year material and workmanship warranty
