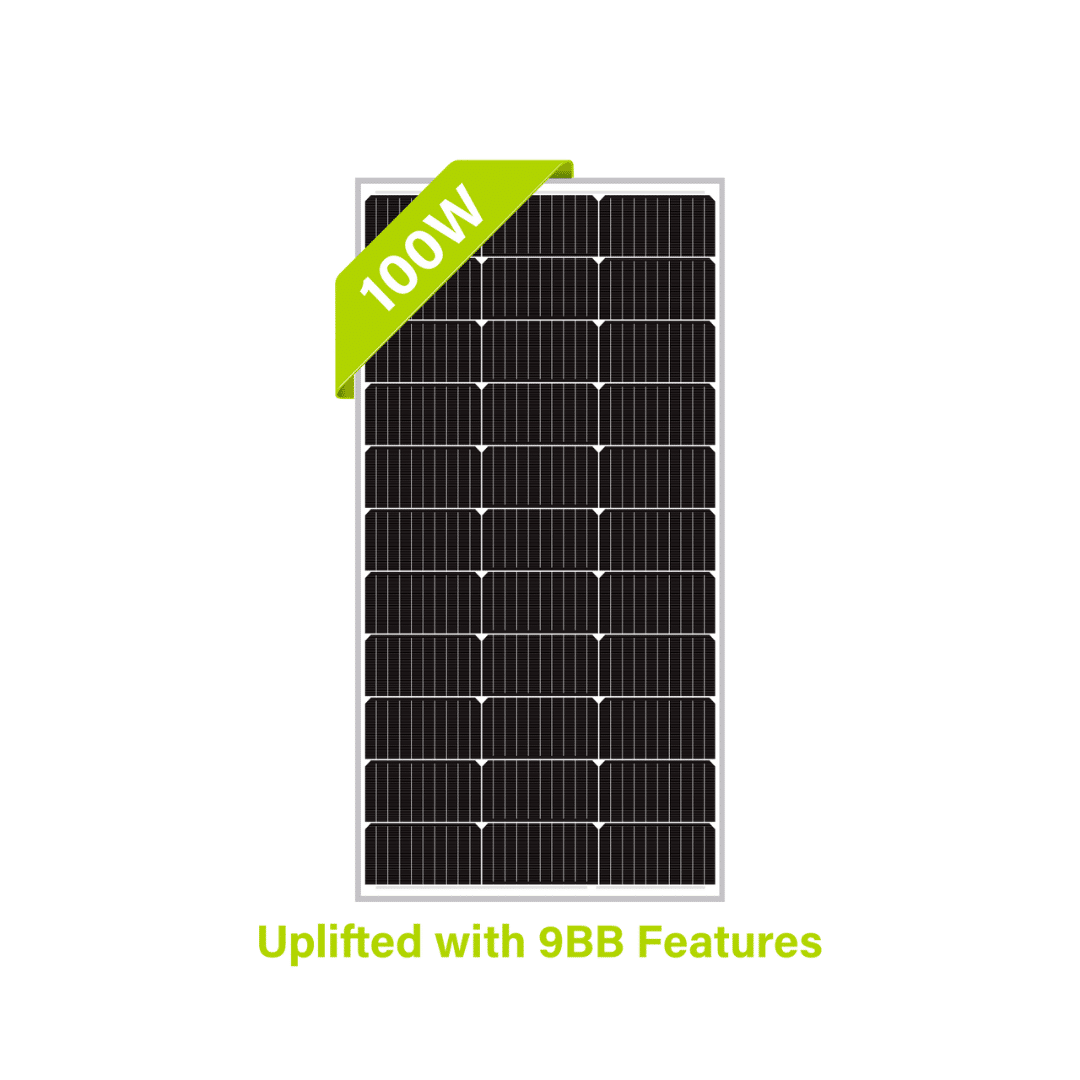

100W 12V Monocrystalline Solar Panel
$104.50
Newpowa’s 100W 12V Monocrystalline High-efficiency Solar Panel is ideal for bringing power to applications when away from the grid. It is commonly used in RV, marine, gate opener, boat, camping, and many other off-grid applications. This panel has a refreshed design with a reduction in footprint, the same output, and higher efficiency.
Description
Features
- 100W/12V monocrystalline high-efficiency solar panel
- High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
- Maximum Efficiency: 21.3%
- Nominal 12V DC for standard output
- Heavy-duty anodized frame with pre-drilled holes for mounting
- Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa)
- High-transparent, low iron tempered glass
- Durable TPT back sheet – dissipates heat to insure better panel performance and lifespan
- Pre-installed bypass diodes inside junction box that minimize power drops caused by shading
- Pre-attached 3ft wire with connectors (M/F)
- Product dimensions: 980 x 530 x 30mm (38.58 x 20.87 x 1.18 in)
- Compatible mount brackets (sold separately): NPB-UZ, NPB-100P, NPB-200P, NPB-400P
Tech & Specs
- Product Code: NPA100S-12I
- Maximum power (Pmax): 100W
- Voltage at Pmax (Vmp): 19.23V
- Current at Pmax (Imp): 5.21A
- Open-circuit voltage (Voc): 22.12V
- Short-circuit current (Isc): 5.50A
- Temperature coefficient of Voc: -(80±10)mV/°C
- Temperature coefficient of Isc: (0.065±0.015)%/ °C
- Temperature coefficient of power: -(0.5±0.05)%/ °C
- NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s): 47±2°C
- Operating temperature: -40°C to 85°C
- Maximum system voltage: 1000V DC
- Power tolerance: ± 3%
- Maximum Series Fuse Rating: 15A
Specification
Additional information
| Brand | Battle Born |
|---|
