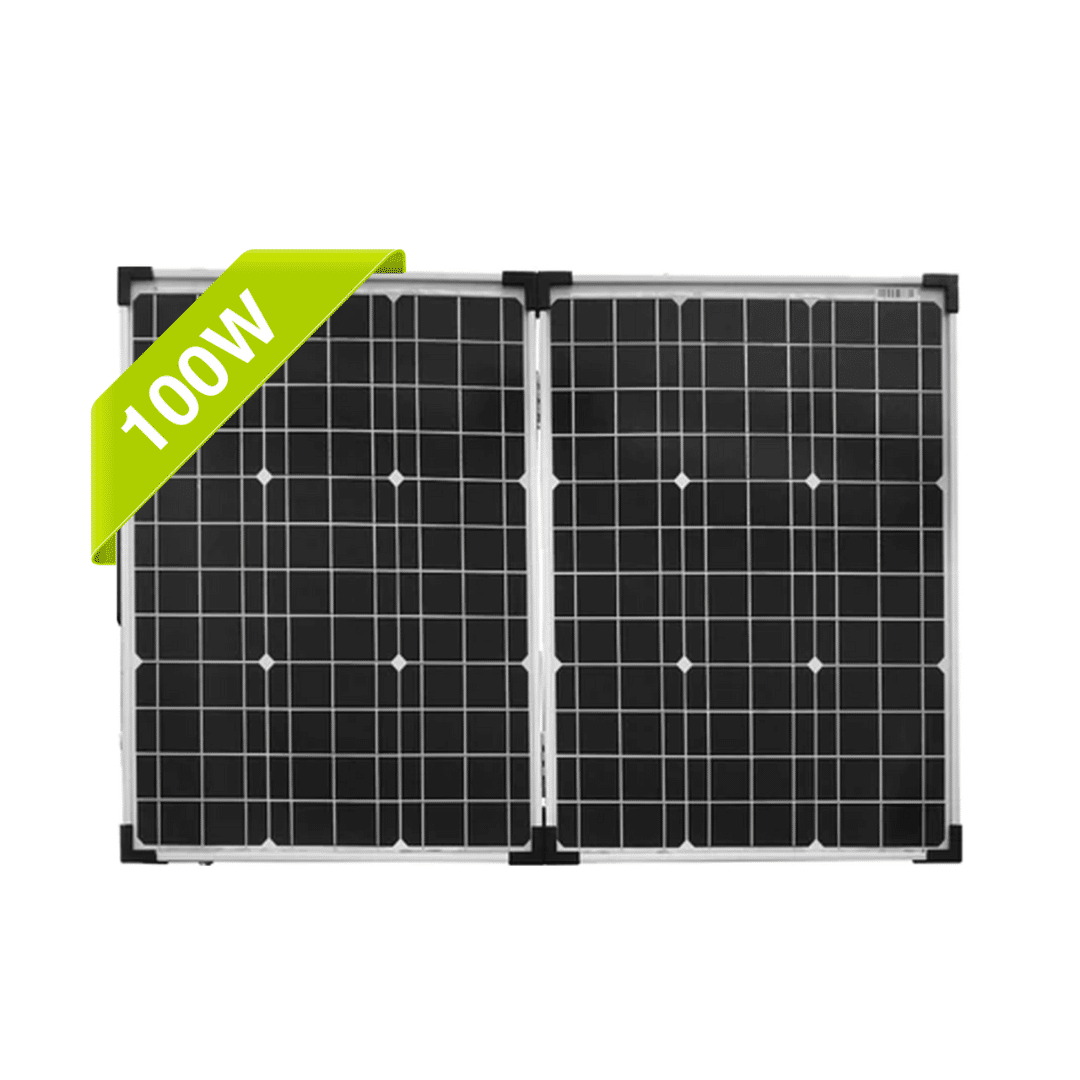

100W Portable Solar Briefcase

Features

• Product Code: SWD100-12P
• Maximum power (Pmax): 100W (2x50W panels)
• Voltage at Pmax (Vmp): 17.8V
• Current at Pmax (Imp): 5.62A
• Open-circuit voltage (Voc): 21.30V
• Short-circuit current (Isc): 6.07A
• Power tolerance: ± 5%
• Operating temperature: -40°C to 85°C
• Dimensions kit: 520mm x 550mm x 30mm (20.47″ x 21.65″ x 1.18″)
• Weight kit: 8.91kg/19.64 lbs
• Maximum Series Fuse Rating: 15A
