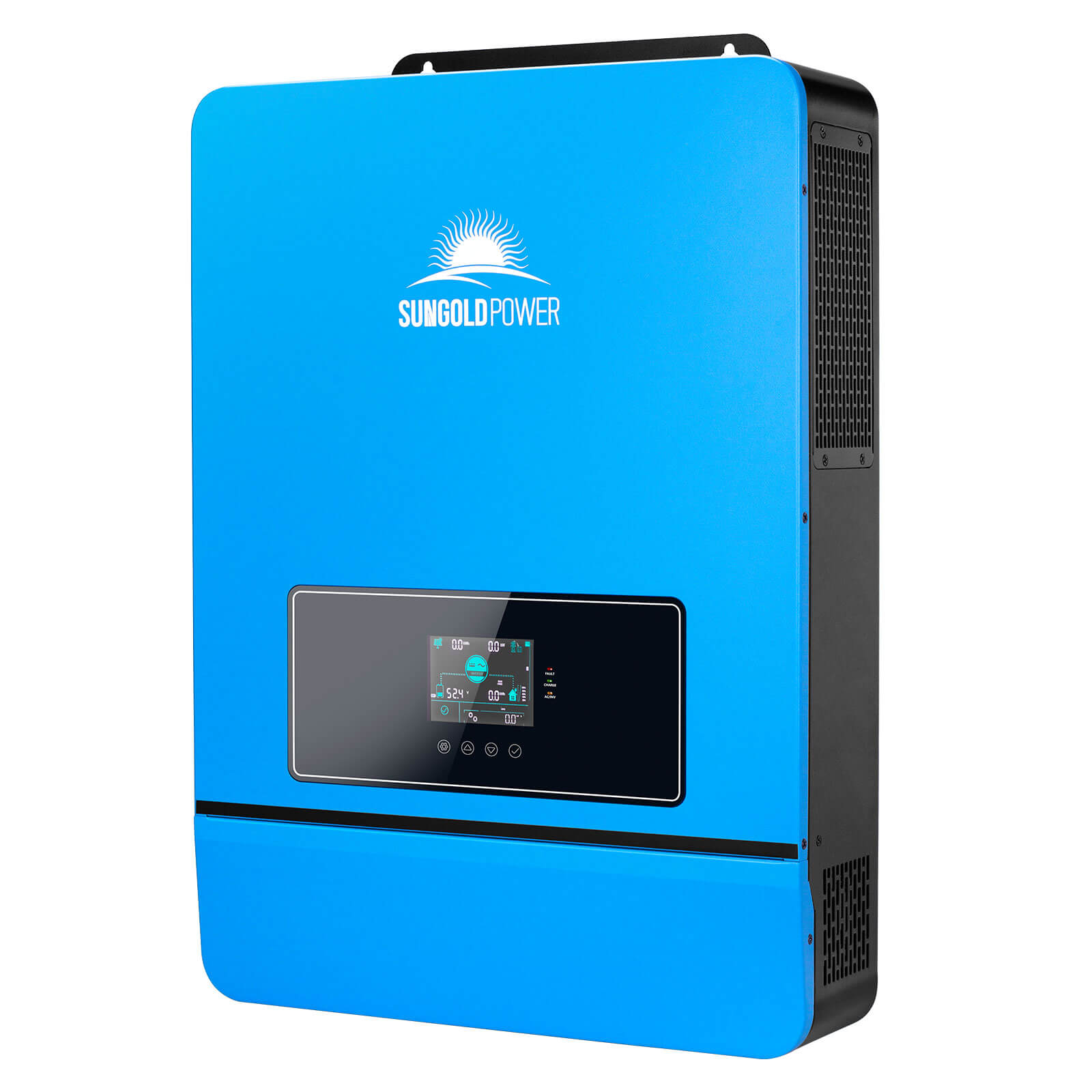

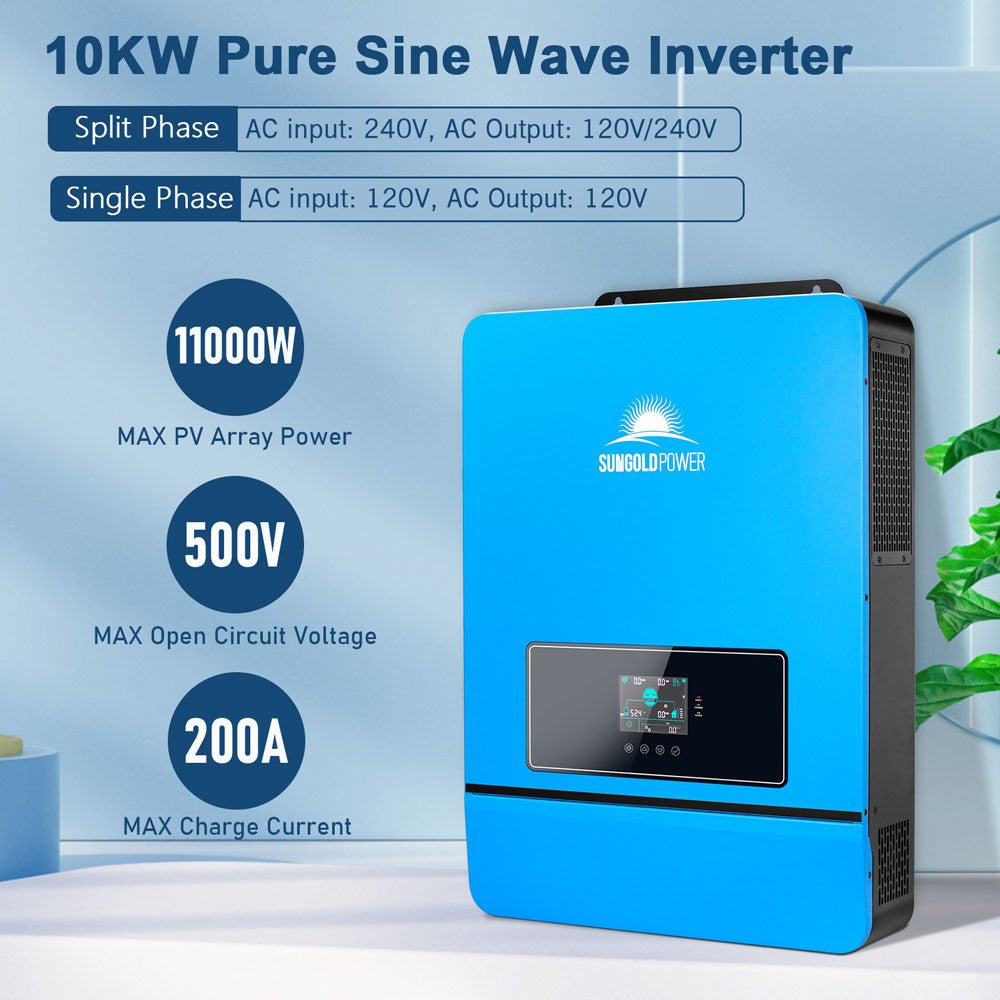

10KW 48V Split Phase Solar Inverter

Highlight:

• All-in-one: 10KW Pure Sine Wave Solar Inverter Combined with Max 200A battery charging, 2 MPPT Solar controller inbuilt w/ Max. Voltage of Open Circuit: 500VDC at each input. Run Split phase (120V/240V) or Single phase (120v) output. Wifi module is included for adjusting and monitoring via the mobile app. Certified UL 1741 by ETL for Off Grid Solar System

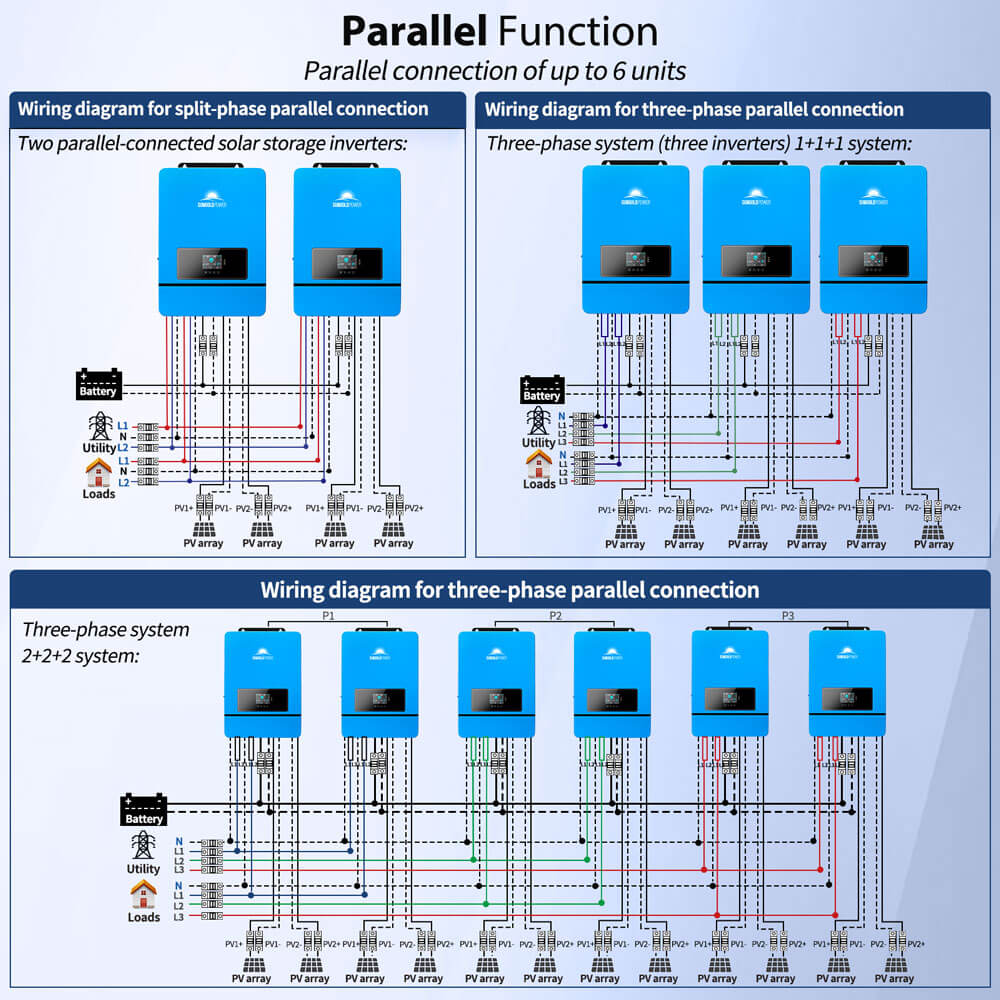

•  Parallel Kit: Parallel up to 6 units for 60kW power output for 120V Single Phase, 120V/240V Split Phase or 208V 3-Phase Support, which also increases the inverter power and surge capacity.
•  Stable AC output and Smart Protection: Rated Output Power: 10000W, Max Peak Power: 20,000W, loaded motor capacity 6HP, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection, Over-load protection and so on.

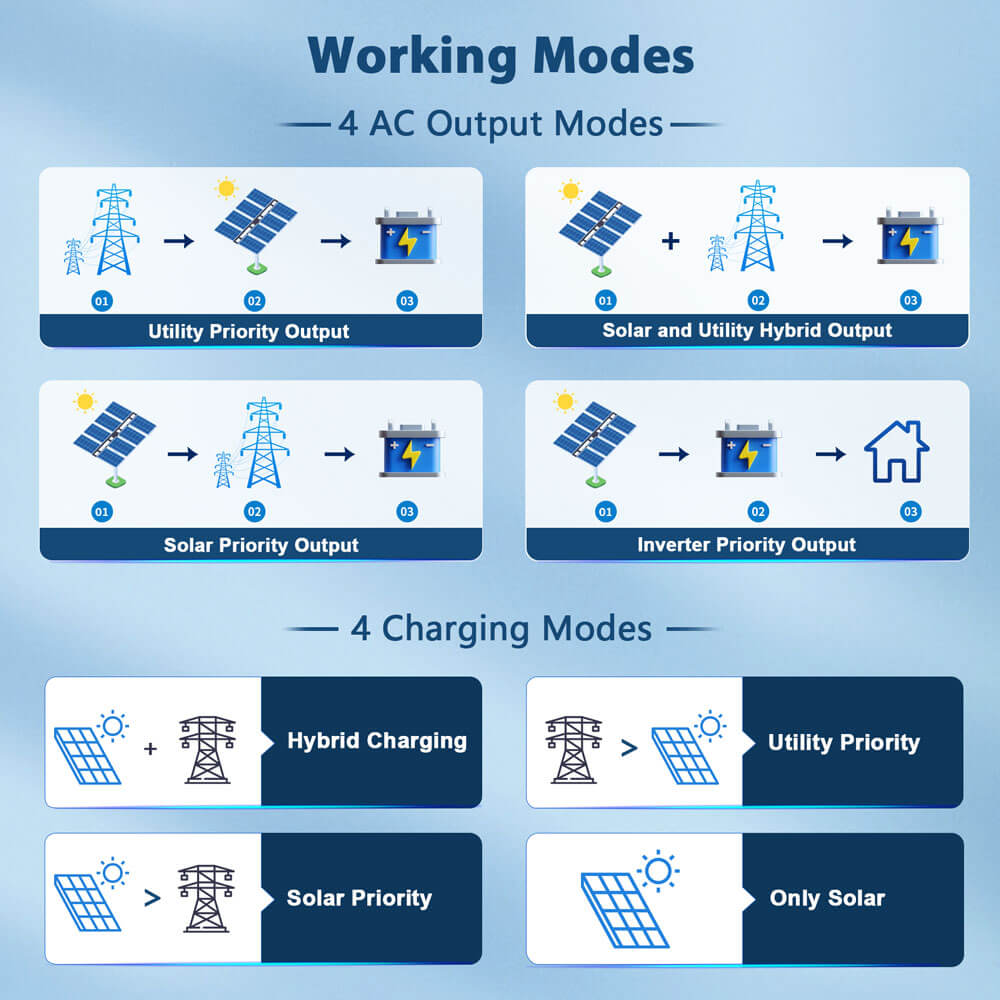

•  Four charging / Output modes: Charging modes include – Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Solar-only Charging. AC Output modes include:  Utility Priority / Solar + Utility Hybrid / Solar Priority / Inverter Priority. Schedule and adjust your system as your needs change.

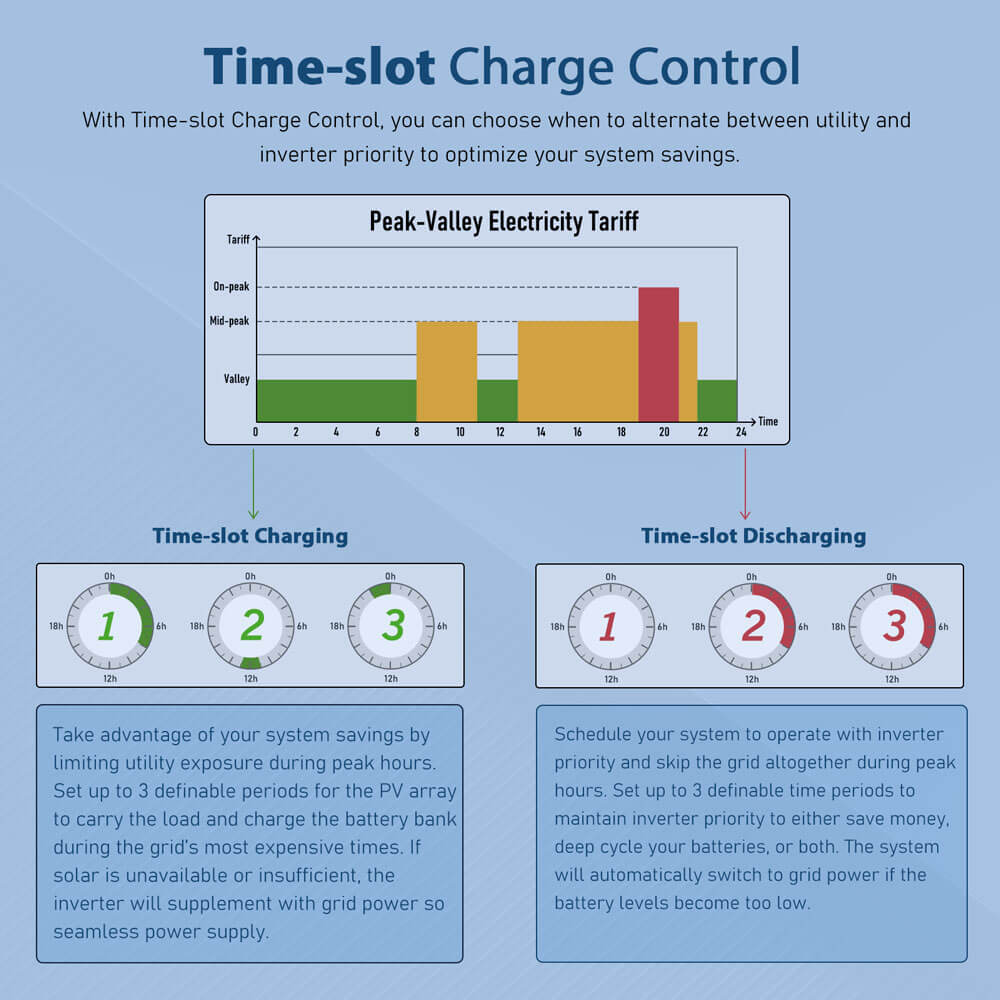

• Time-slot charging/discharging function: This inverter is equipped with a time-slot charge/discharge function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs.

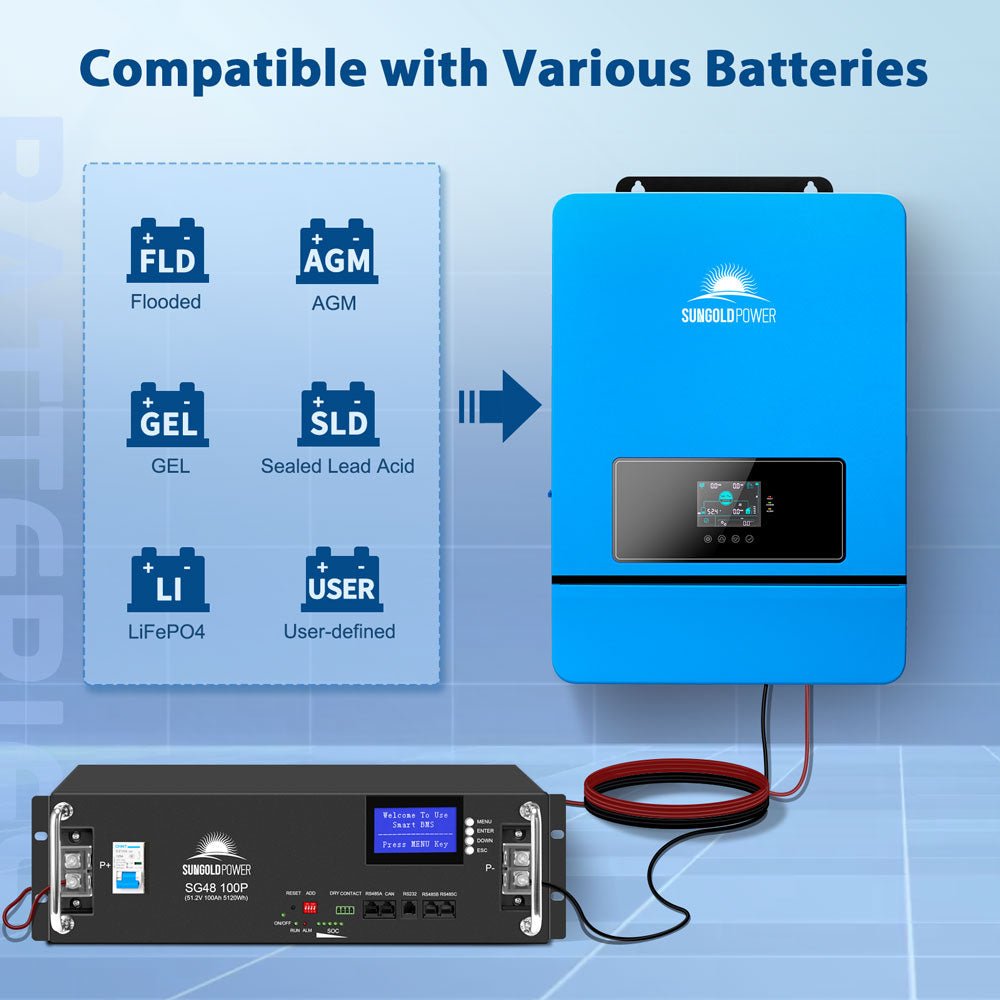

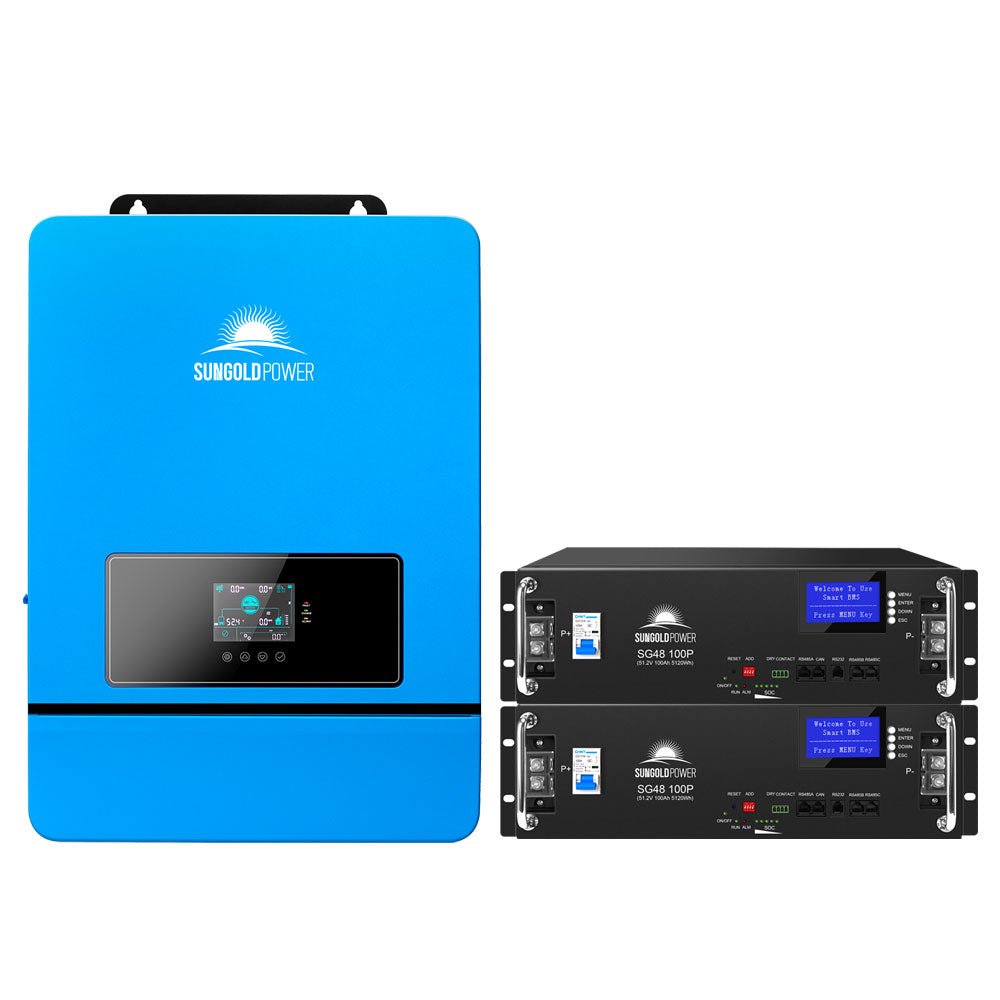

•  Battery types: Supports all 48V battery types including AGM/Sealed, Gel, Flooded, LiFePO4, batteries as well as a User Mode to work with all battery types. Supports battery-free activation from the grid or PV Panels if the battery is ever discharged too low.  Supports CAN and RS485 communication with SunGoldPower batteries.
