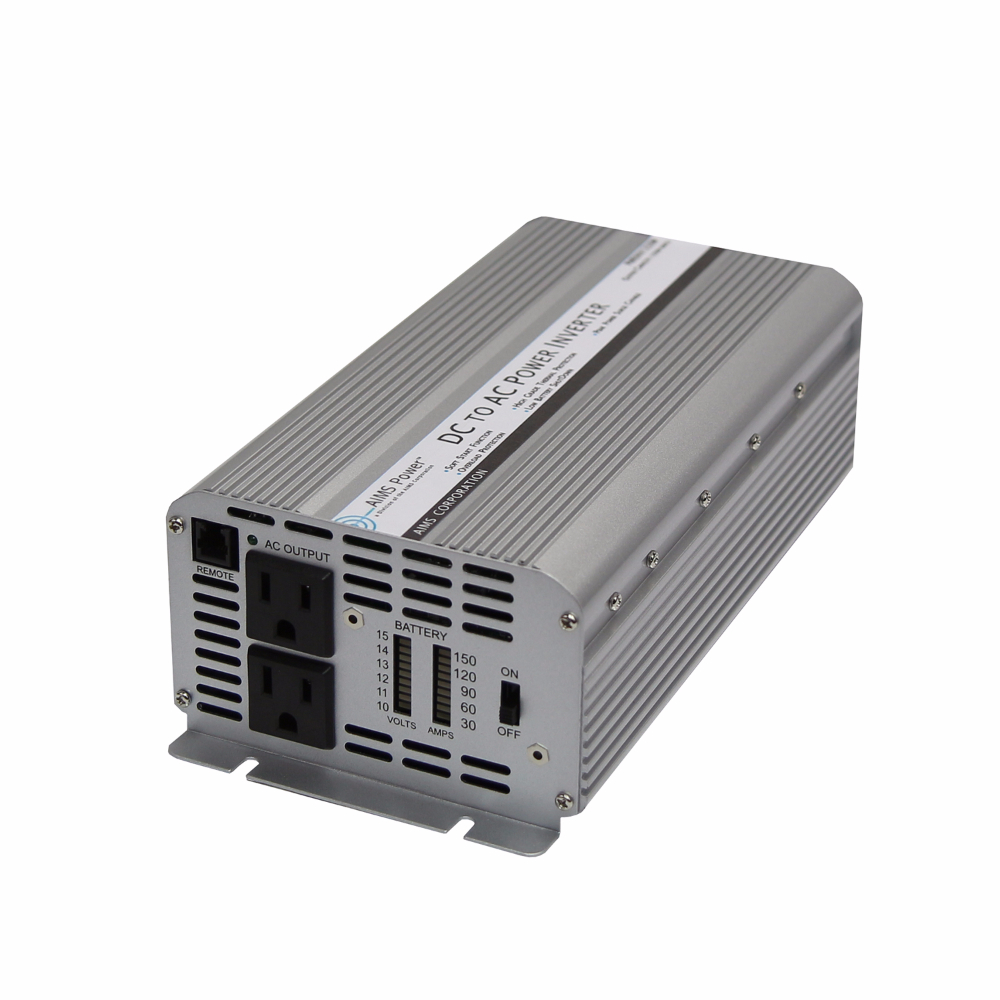

Description
1250W max continuous power
Modified sine wave
Volt meter on front panel to monitor your battery voltage
Watt meter on front panel to monitor your
Isolated ground neutral
LED (green/red) indicator that monitors ready or fault
Dual ac receptacle with protective rubber covers
On/off switch
Over Temperature protection
Over Load protection
Dual cooling fan operation thermally controlled
Internally fuse protected
ac output short circuit protection
Auto reset on most fault conditions
Aluminum case for optimal cooling
Pre-wired for remote on/off switch – RJ11 port
Pre-slotted mounting plate
Instruction manual
Free 1 year tech support
1 Year Warranty Parts and Labor
Continuous output power: 1250 Watt. Use 150 inline fuse.
Surge power capability (peak power): 3100 Watts
dc input / operating voltage: 10 to 15 Volts
Output voltage: 120 Volts ac
Output wave form: modified sine wave
Output frequency: 60 Hz
Battery low voltage alarm: 10.5 +/- 0.5 Volts
Battery low voltage shutdown: 10.0 +/- 0.5 Volts
No load current: <.5 Amps
Full load efficiency: 90%
1/3 load efficiency: 95%
No load minimum operating temperature: -15 degrees Celsius
Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
AC Output Socket Type: dual Type 2 -3 prong
High input voltage protection: 15V to 17V
Low input voltage shutdown: 10V
Internal fuse protection
Product size (L x W x H): 11.25”X 8.25”X 3”
Weight: 5 lbs
