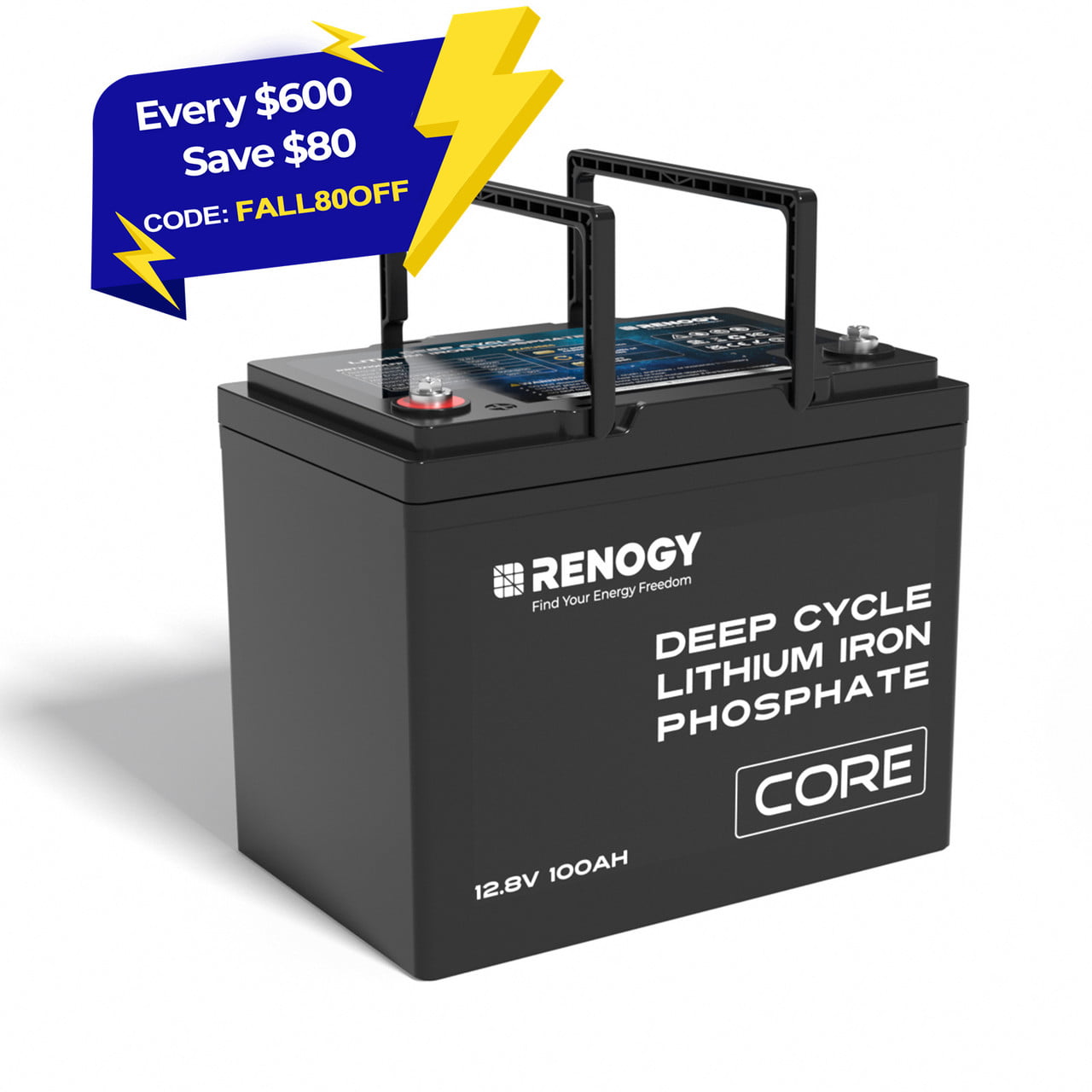

12V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery
$385.99
-One stop for upgrade from lead-acid to lithium.
-Max. 6% positive capacity tolerance.
-Support series, parallel, or series-parallel connections.
-A true 100A BMS with low-temperature cut-off.
-5-year limited warranty & 24-hour timely assistance.
Description
Package IncludesBattery only optionCore V Ah Lithium Iron Phosphate Battery x Long Terminal Bolts x Insulating Sleeve x User Manual x
Battery Type:
Lithium Iron Phosphate
Rated Capacity (0.5C, 25°C):
100Ah
Nominal Voltage:
12.8V
Cycle Life (0.5C/1C, 25℃):
5000 Cycles (80% DOD, 80% EOL)
Charge Voltage:
14.4V
Maximum Charge Current:
100A
Maximum Discharge Current:
100A
Charge Temperature Range:
32°F to 131°F (0°C to 55°C)
Discharge Temperature Range:
-4°F to 140°F (-20°C to 60°C)
Connection Method:
“Series (Up to 4);Parallel (Up to 8); Series & Parallel (4P4S)”
Communication Protocol:
N/A
Recommended Terminal Torque:
10 N·m
Protection Rating:
IP65
Housing Material:
ABS
Terminal Bolt Size:
M8
Dimensions:
10.6 x 6.9 x 8.6 inch (260 x 169 x 211 mm)
Weight:
23.15 lbs. (10.5 kg)
opc:
Long Terminal Bolts (2):
M8
opc:
MSDS, UN38.3, FCC , PSE, CE, UKCA:
YES
opc:
Material and Workmanship Warranty:
5 Years
opc:
Specification
Additional information
| Brand | Renogy |
|---|
Reviews
There are no reviews yet.
