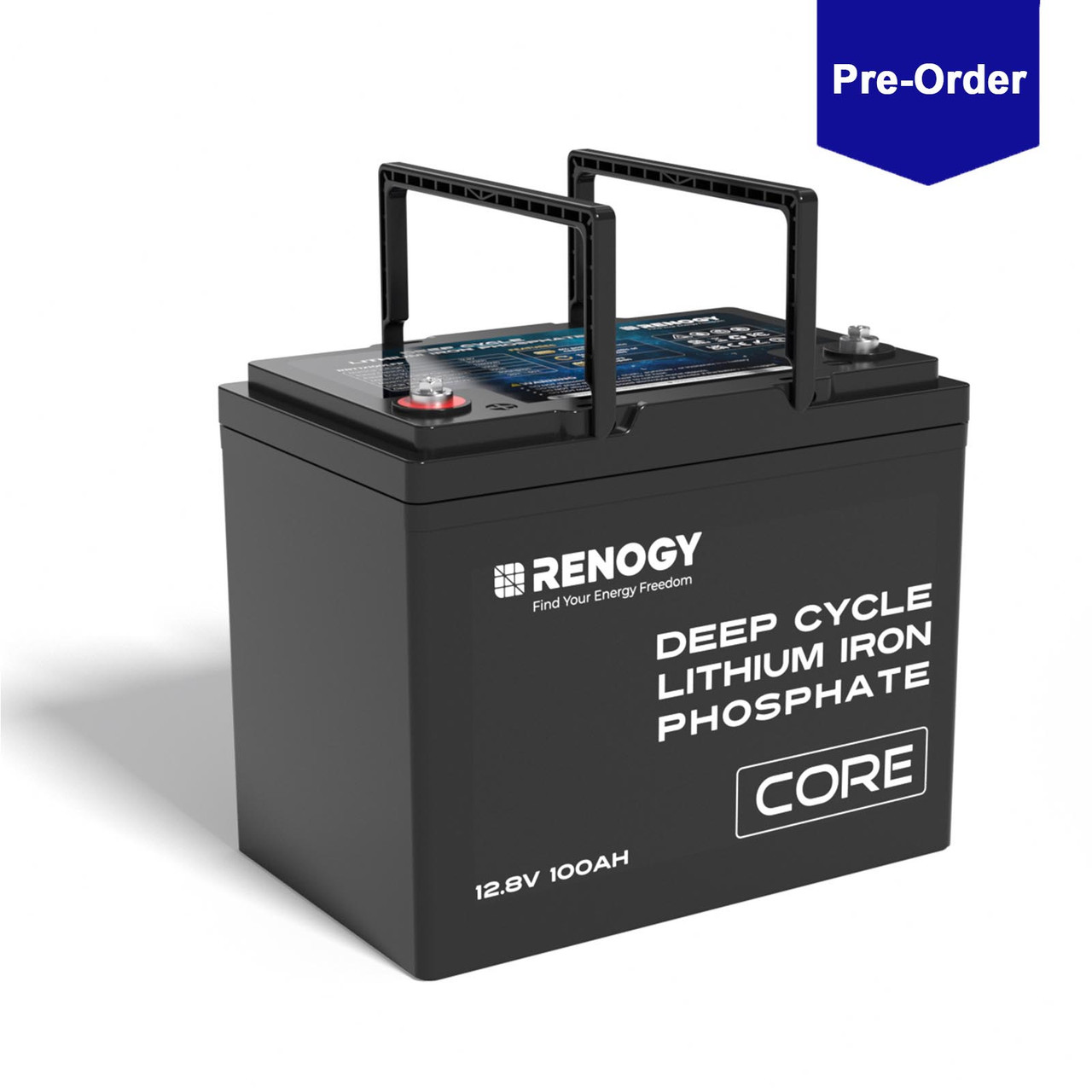

12V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery-Pre Order

Package IncludesBattery only optionCore V Ah Lithium Iron Phosphate Battery x Long Terminal Bolts x Insulating Sleeve x User Manual x

Battery Type:
Lithium Iron Phosphate

Rated Capacity (0.5C, 25°C):
100Ah

Nominal Voltage:
12.8V

Cycle Life (0.5C/1C, 25℃):
5000 Cycles (80% DOD, 80% EOL)

Charge Voltage:
14.4V

Maximum Charge Current:
100A

Maximum Discharge Current:
100A

Charge Temperature Range:
32°F to 131°F (0°C to 55°C)

Discharge Temperature Range:
-4°F to 140°F (-20°C to 60°C)

Connection Method:
“Series (Up to 4);Parallel (Up to 8); Series & Parallel (4P4S)”

Communication Protocol:
N/A

Recommended Terminal Torque:
10 N·m

Protection Rating:
IP65

Housing Material:
ABS

Terminal Bolt Size:
M8

Dimensions:
10.6 x 6.9 x 8.6 inch (260 x 169 x 211 mm)

Weight:
23.15 lbs. (10.5 kg)

opc:


Long Terminal Bolts (2):
M8

opc:


MSDS, UN38.3, FCC , PSE, CE, UKCA:
YES

opc:


Material and Workmanship Warranty:
5 Years

opc:
