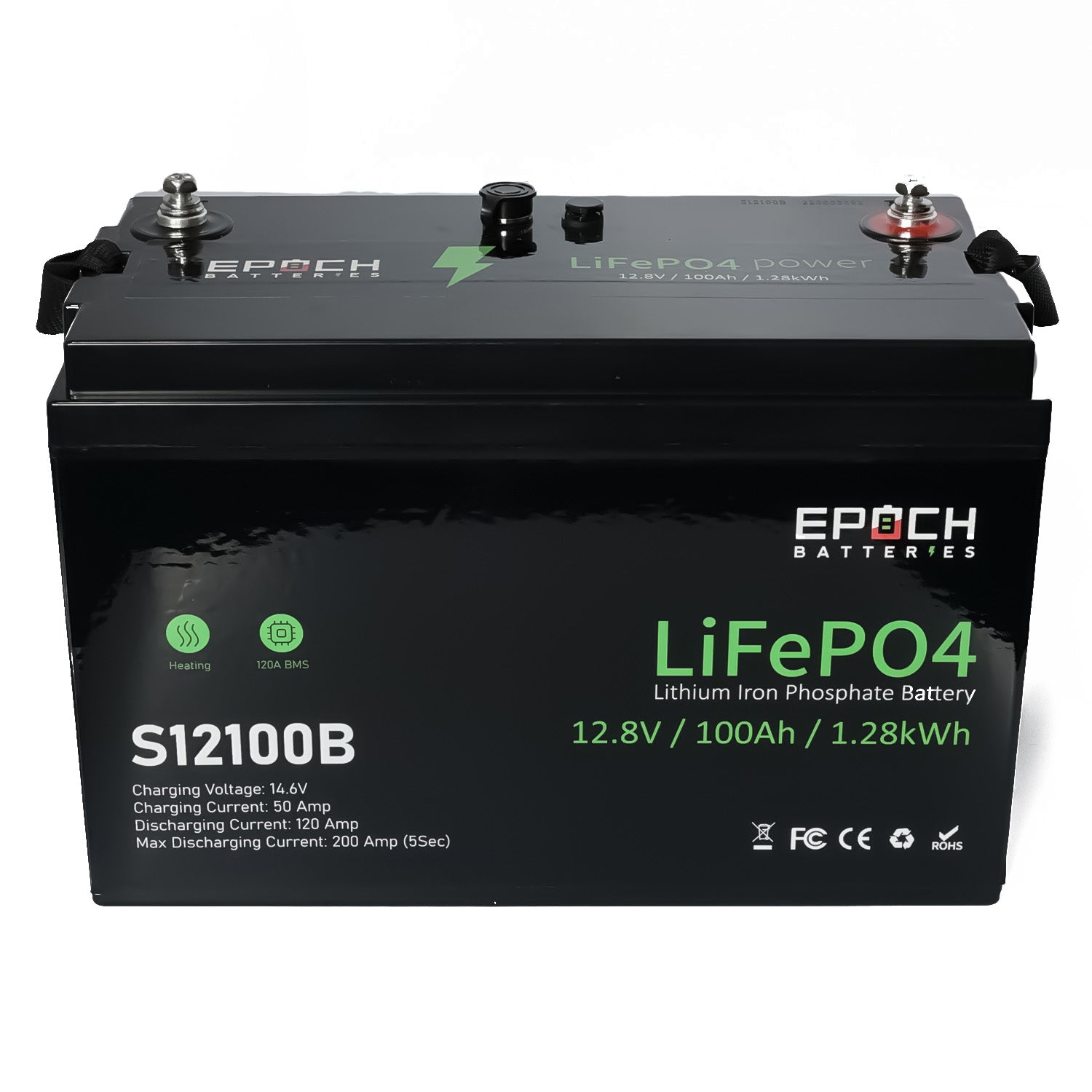

12V 100Ah | Self Heating | LiFePO4 Battery

SKU:

S12100B

Voltage:

12V

Chemistry:

LiFePO4

Charging Voltage Range:

14.0 – 14.6

Max Charge Voltage:

14.6V

Operating Voltage Range:

10.8 – 14.6V

kWh Capacity:

1.28 kWh

Ah Capacity:

100Ah

Cell configuration:

4S

Max Continuous Discharge Amps:

120A

Max Continuous Power Watts:

1536

Max Discharge Peak Current Amps:

200A (5 Seconds)

Max Charge Current Amps:

50A, 100A (30 seconds)

Charge Temp Range:

-20°C (-4°F) / 55°C (131°F) (with heating)

Discharge Temp Range:

-20°C (-4°F) / 60°C (140°F)

Optimal Discharge Temp Range:

15°C (59°F) / 35°C (95°F)

Storage Temp:

0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight:

32 (LBS)

Depth Inches:

12.5

Width Inches:

6.5

Height Inches:

8.5

Safety Features:

BMS (Battery Management System)
Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature

Series | Parallel:

Max (4) in Series up to 48V, Max (4) in Parallel – 4S4P
