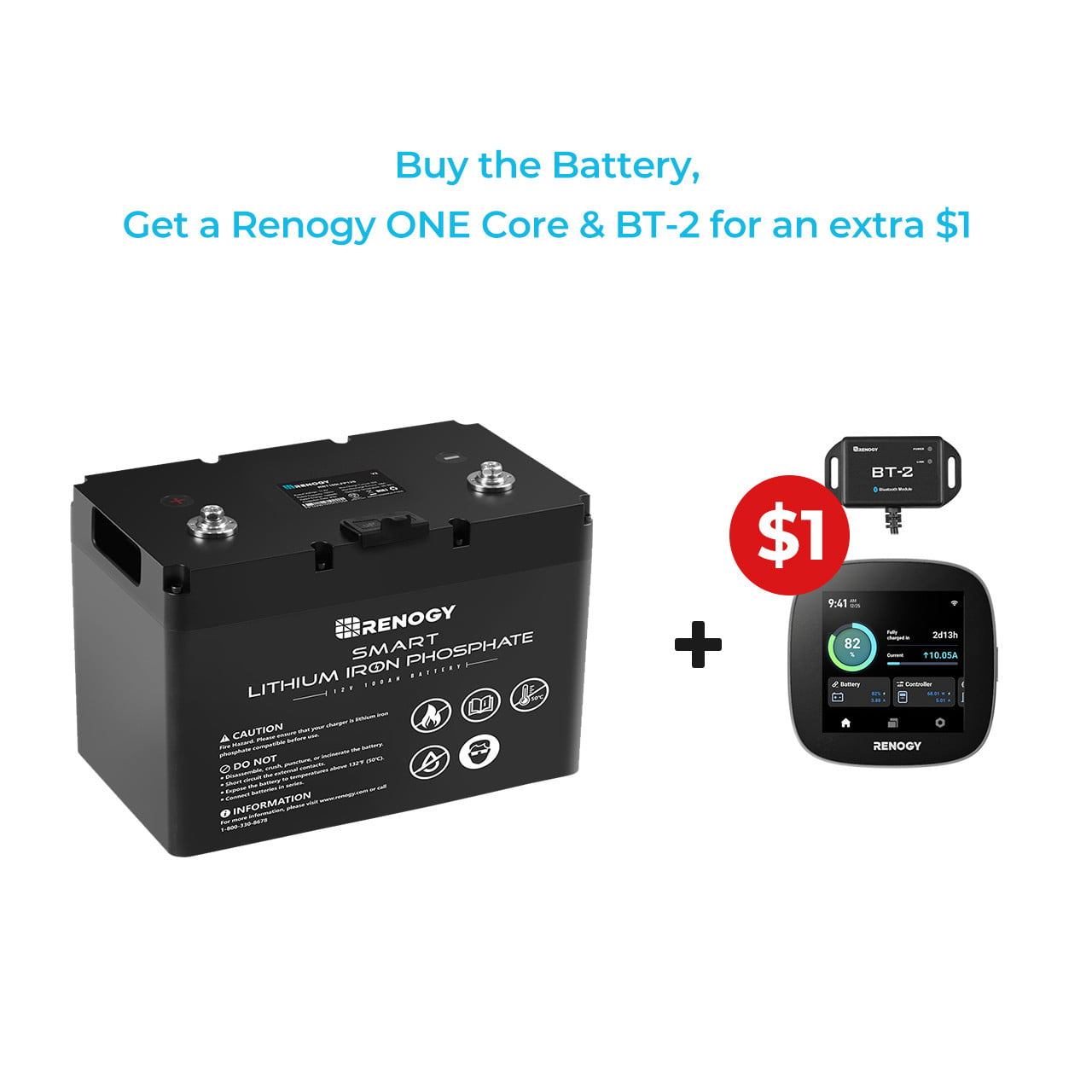

12V 100Ah Smart Lithium Iron Phosphate Battery

Package IncludesV Ah Smart Lithium Iron Phosphate Battery xActivation switch and bolts x

Battery Type:
Lithium Iron Phosphate

Rated Capacity:
100AH

Nominal Voltage:
12.8V

Voltage Range:
10-14.8V

Energy:
1280WH

Cycle Life(0.2C,25℃):
80%DOD 4000 Cycles

Connection Method:
Parallel

Automatically Self-heating Function:
No

Dimensions:
11.4 x 6.8 x 7.4 inch /289 x 172 x 188 mm

Weight:
26 lbs. / 11.8 kg

Protection Rate:
IP54

Housing Material:
PC+ABS

Charge Voltage:
14.4V

Maximum Continuous Charging Current:
50 A

Charge Cut-off Voltage:
14.4V

opc:


Maximum Continuous Discharging Current:
100 A

Discharge Cut-off Voltage:
10V

Standard Operation Temperature:
25℃±5℃

Storage Temperature:
-13~149℉ / -25~65℃

Charge Temperature:
32~131°F/ 0~55°C

Discharge Temperature:
-4~140°F/ -20~60°C

Built-in Bluetooth:
No

Communication Port:
RJ45 (Modbus Protocol)

Bolts:
M8 x2

Activation switch:
x1

Material and workmanship warranty:
5-year

opc:


Certifications:
UN38.3, MSDS, CE, FCC, PSE, UL (Battery Cell), TUV (Battery Cell)
