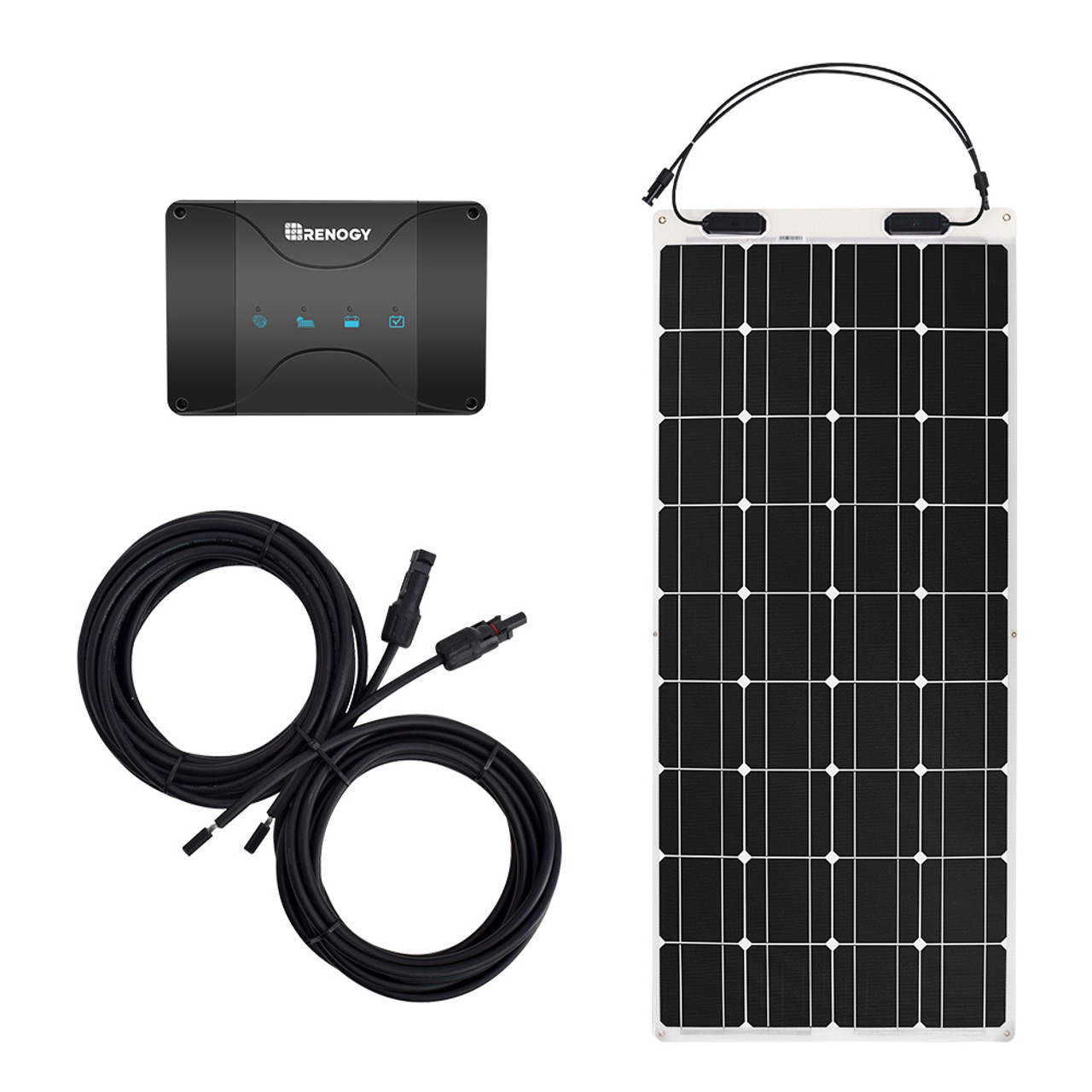

12V 30A Dual Battery Charging 100W Solar Flex Bundle

Package Includes Watt Volt Flexible Monocrystalline Solar Panel xDCCS V A Dual Input DCDC OnBoard Battery Charger with MPPT xft AWG Solar Panel to Charge Controller Adaptor Kit x

Maximum Power at STC:
100W

Maximum System Voltage:
600V DC (UL)

Optimum Operating Voltage (Vmp):
18.9V

Open-Circuit Voltage (Voc):
22.5V

Optimum Operating Current (Imp):
5.29 A

Short-Circuit Current (Isc):
5.75 A

Dimensions:
48.0 x 21.6 x 0.08 in (1219 x 546 x 2 mm)

Weight:
4.2 lbs (1.9 kg)

System Voltage:
12VDC

Maximum Charging Current:
30A

Max. Solar Input Voltage:
25V

Service Battery Charging Mode:
MPPT

Battery voltage Range:
9-16VDC

Dimensions:
9.6*5.7*3.0in

Weight:
3.13Ibs

opc:


Length:
20ft

AWG:
10

Rating Voltage:
600/1000V

Temperature:
-40°F to +185°F

Panels:
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 3-year material and workmanship warranty

Accessories:
1-year material warranty
