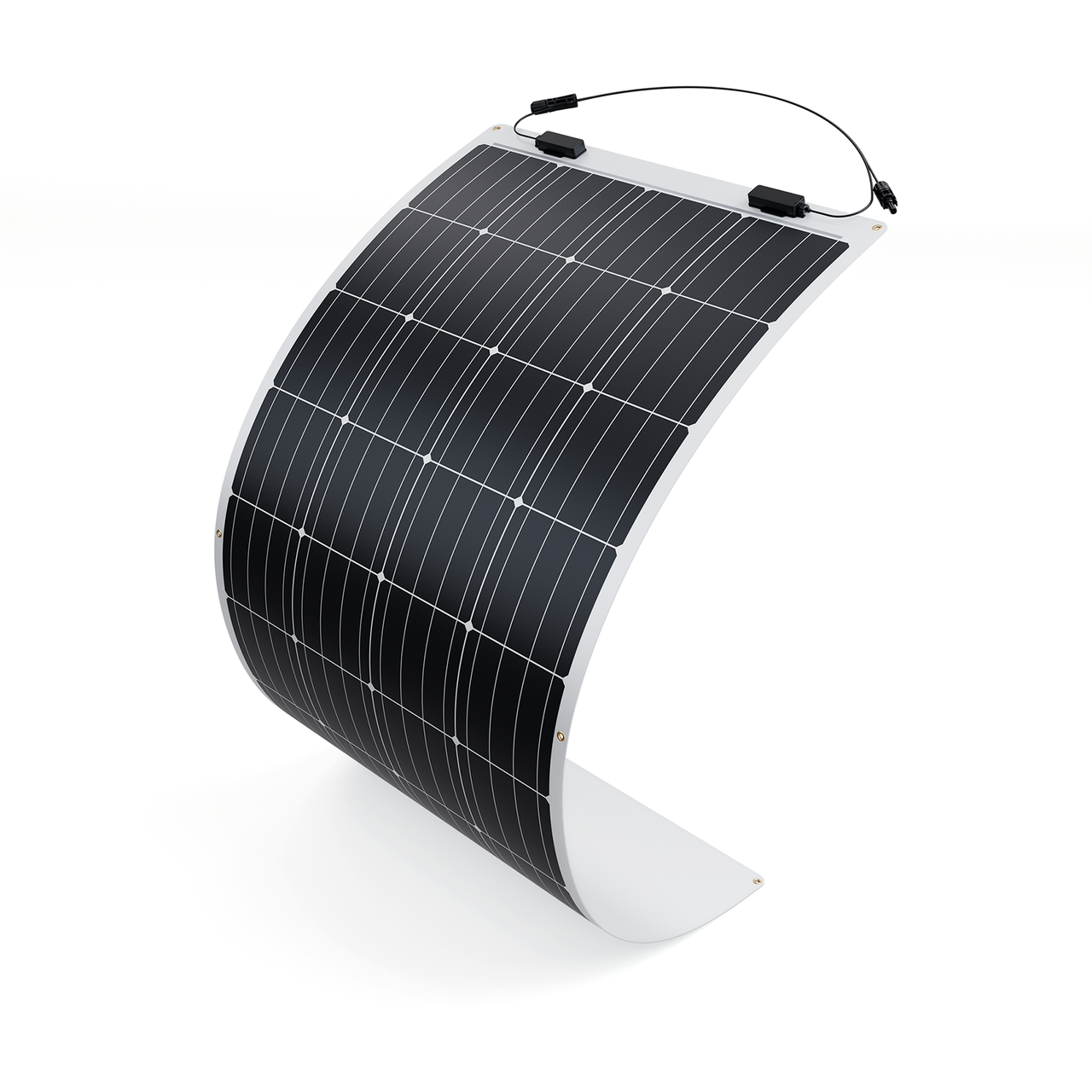

175 Watt 12 Volt Flexible Monocrystalline Solar Panel

Package Includes Renogy W Flexible Solar Panel x

Output Cables:
12 AWG (2.30 ft)

Cell Type:
Monocrystalline (6.17 x 6.17 in)

Number of Cells:
36 (4 x 9)

Junction Box:
IP68

Solar Connectors:
IP67

opc:


Maximum Power at STC:
175W

Module Efficiency:
17.3%

Optimum Operating Voltage (Vmp):
19.5V

Open-Circuit Voltage (Voc):
23.9V

Optimum Operating Current (Imp):
8.98A

Short-Circuit Current (Isc):
9.50 A

Operating Temperature:
-40°F to 185°F (-40ºC to +85ºC)

Maximum Series Fuse Rating:
15A

Maximum System Voltage:
600V DC (UL)

Certifications:
CE, ISO

Weight:
6.2 lbs (2.8 kg)

Dimensions:
59.2 x 26.5 x 0.08 in (1504 x 673 x 2 mm)

Material and workmanship warranty:
5 years

Performance Warranty:
5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
