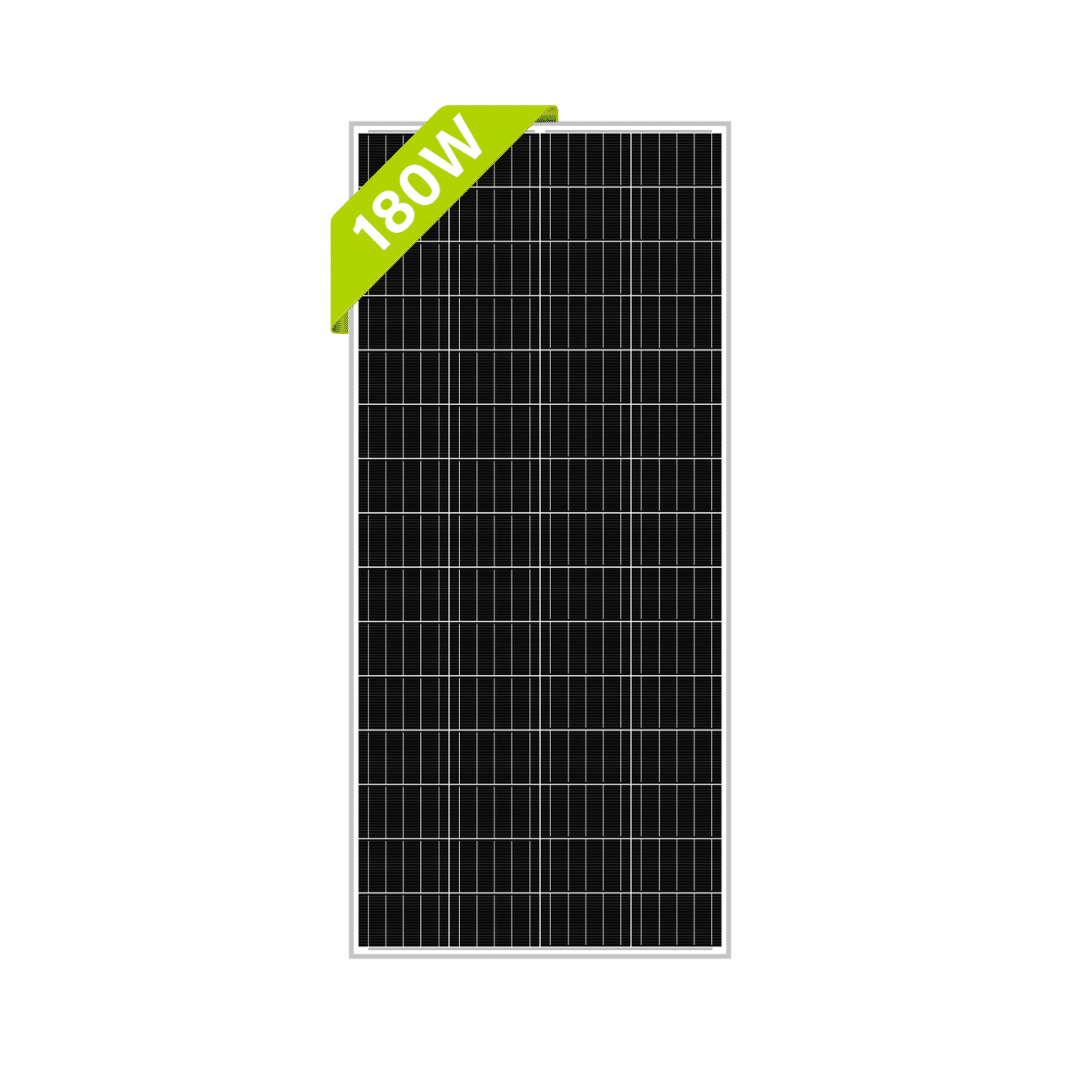

180W 12V Monocrystalline Solar Panel

Features

• 180W/12V Monocrystalline high-efficiency solar panel
• High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
• Nominal 12V DC for standard output
• Heavy-duty anodized frame with pre-drilled holes for mounting
• Rugged design to withstand high winds (2400Pa), hail &snow load (5400Pa)
• High-transparent, low iron tempered glass
• Durable TPT backsheet – dissipates heat to optimize performance and enhance longevity
• Built-in bypass diodes within junction box that minimize power drops caused by shading
• Pre-attached 3ft wire with connectors (M/F)
• Dimension: 51.97 x 27.76 x 1.38 in (1320 x 705 x 35 mm)
• Compatible mount brackets (sold separately): NPB-UZ (2 sets recommended), NPB-200T

• Maximum power (Pmax)180W
• Voltage at Pmax (Vmp)17.37V
• Current at Pmax (Imp)10.40A
• Open-circuit voltage (Voc)20.04V
• Short-circuit current (Isc)10.97A
• Temperature coefficient of Voc-(80±10)mV/°C
• Temperature coefficient of Isc(0.065±0.015)%/ °C
• Temperature coefficient of power-(0.5±0.05)%/ °C
• NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s)47±2°C
• Operating temperature-40°C to 85°C
• Maximum system voltage1000V DC
• Power tolerance± 3%
• Maximum Series Fuse Rating15A
