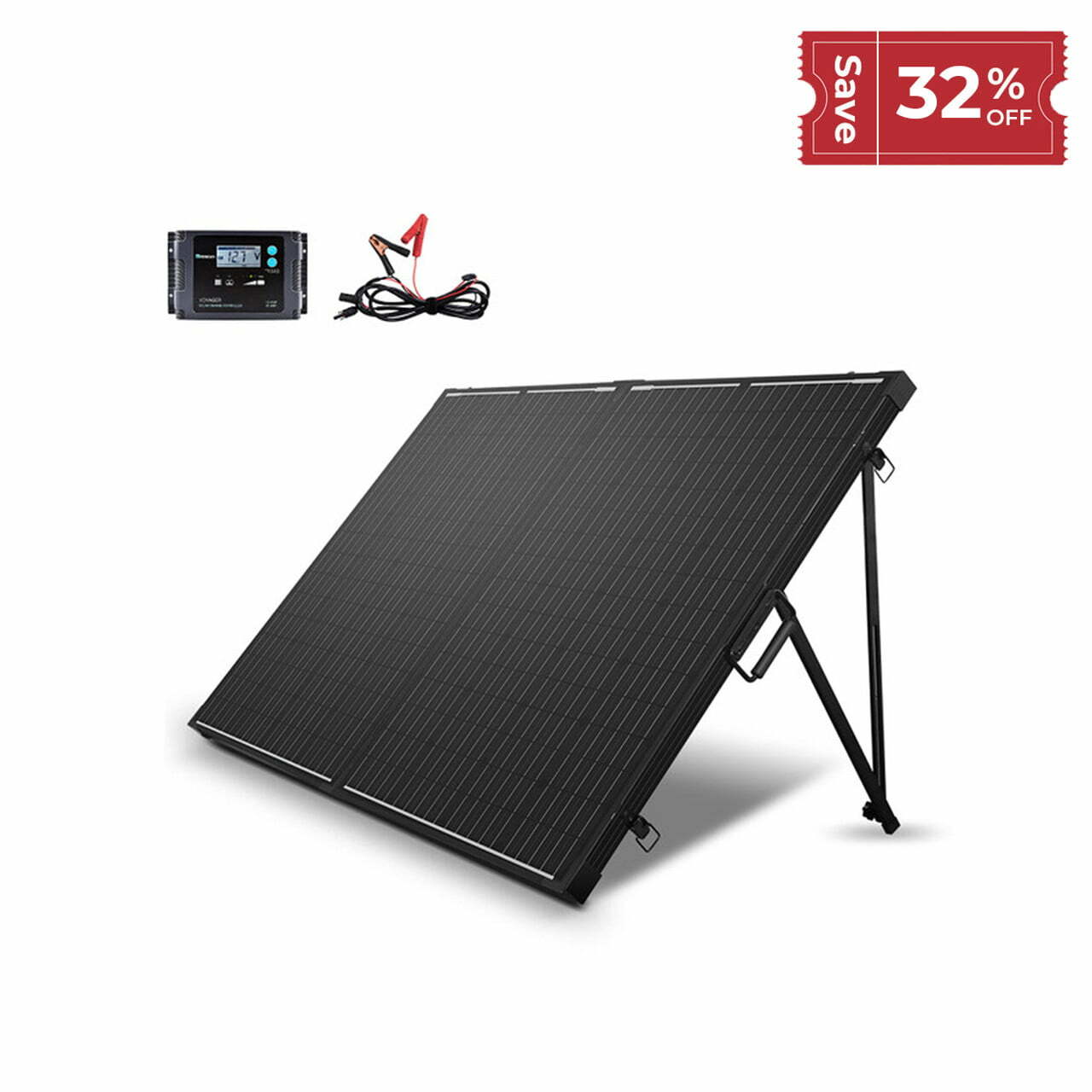

200 Watt 12 Volt Monocrystalline Foldable Solar Suitcase

Package Includes Watt Mono Foldable Solar Suitcase xA Voyager Charge Controller xAlligator Clips x

Maximum Power at STC:
200W

Cell Efficiency:
22%

Optimum Operating Voltage (Vmp):
18V

Open-Circuit Voltage (Voc):
21.6V

Optimum Operating Current (Imp):
2 x 5.56A

Short-Circuit Current (Isc):
2 x 6.1A

Operating Temperature:
-40℉ to +185℉

Maximum Series Fuse Rating:
20A

Maximum System Voltage:
600VCD(UL)

Weight:
38.6 lbs

Maximum AWG Size Range (MC4):
32A

Folded Dimension:
26.4 x 32.5 x 2.8 inches

Material and workmanship warranty:
3 years

Performance Warranty:
5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty

Nominal Voltage:
12 VDC

Self-consumption:
≤8mA

Rated Charge Current:
20A

Operating Temperature:
-40°F to 140°F

Max. PV Input Voltage:
26 VDC

Dimensions:
6.38 x 3.82 x 1.34 inches

Grounding:
Common Negative

Weight:
0.88 lbs
