200 Watt 12 Volt Solar RV Kit
$259.99
– 22% High solar cell efficiency
– With the Flush Mount Charge Controller, you can expand your system up to a maximum of 400W
– Designed for clean flush mounting on RV or camper walls
– Protection against: overcharging, overload, short-circuit, reverse polarity
Description

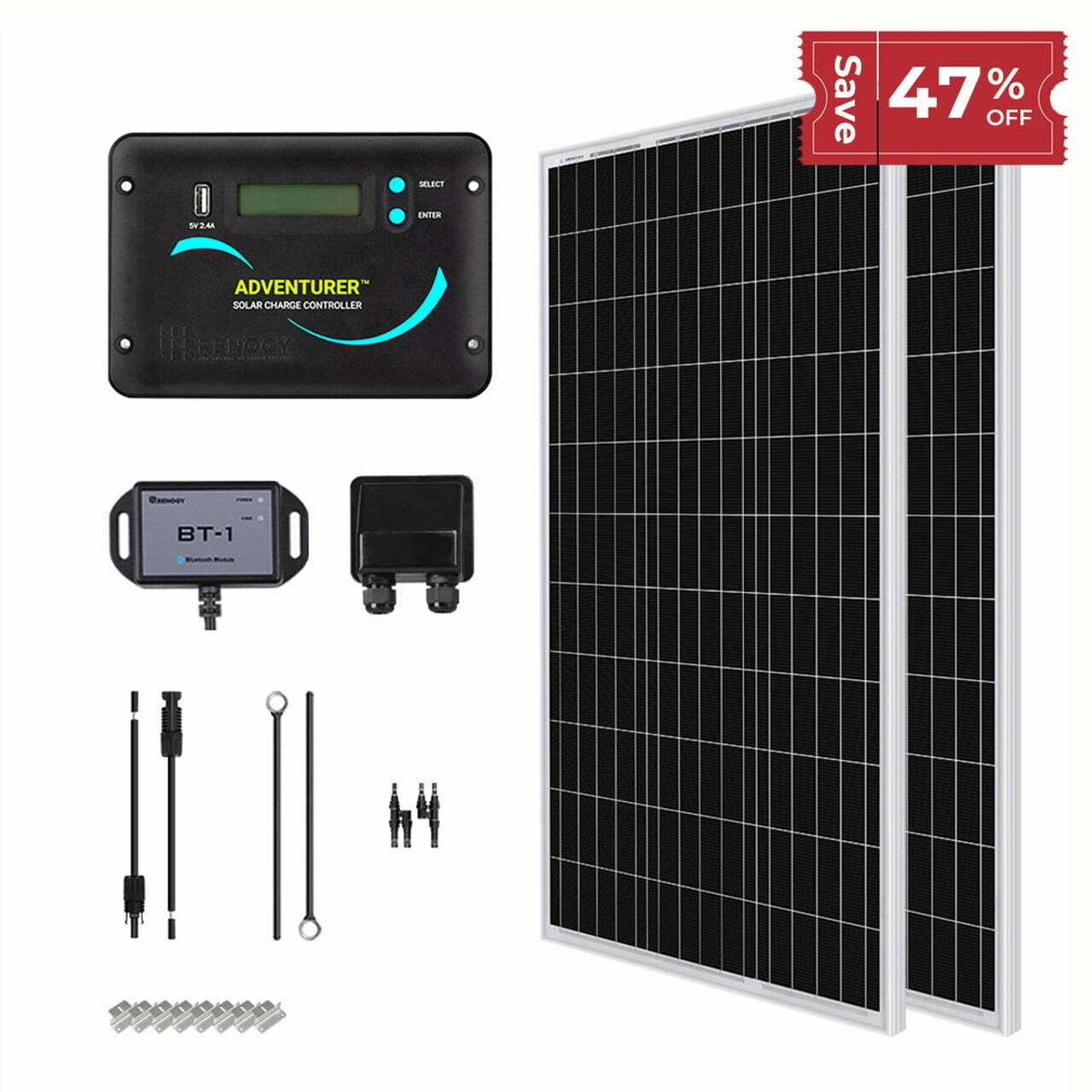

Package IncludesW Mono Solar Panel xRenogy AdventurerA PWM Charge Controller xRenogy Solar Y Branch Connectors xRenogy ft AWG Solar Adaptor Kit xCable Entry Housing xRenogy ft AWG Tray Cables xMounting Z Brackets xRenogy BT Bluetooth Module x
Maximum Power:
100W
Maximum System Voltage:
600V DC (UL)
Open-Circuit Voltage (Voc):
24.3V
Short-Circuit Current (Isc):
5.21A
Optimum Operating Voltage (Vmp):
20.4V
Optimum Operating Current (Imp):
4.91A
Weight:
14.1lbs
Dimensions:
41.8 x 20.9 x1.4 in
Nominal Voltage:
12 VDC/ 24 VDC
Rated Charge Current:
30A
Max. PV Input Voltage::
50 VDC
Max. PV Input Power:
12V(400W) / 24V(800W)
Length:
16ft
AWG:
10
Rating Voltage:
600V
Temperature:
-40°F to +185°F
Length:
30ft
AWG:
10
Rating Voltage:
600/1000V
Temperature:
-40°F to +185°F
Input Voltage:
5V-12V
Communication Range:
≤15m
Dimensions:
2.6 X 2.01 X 0.61 In
Weight:
120 g (4.2oz)
Withstanding Voltage:
1000V DC(TUV), 600V(UL)
Protection Degree:
IP67, mated
Wiring Size Range:
10, 12, 14 AW
Temperature:
-40°F to +194°F
Material:
UV-resistant ABS Plastic
Weight (each component):
7.9 oz.
Recommended Adhesive:
Sikaflex 252 or alike
Dimensions (l x w x h):
4.7 x 3.9 x 2.0 in
Cable Gland Diameter Range:
6mm – 12mm
opc:
Eight Long Cap Bolts and Four Short Bolts:
Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets:
Four Nuts
Panels:
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 10-year material and workmanship warranty
Accessories:
1-year material warranty
Specification
Additional information
| Brand | Renogy |
|---|
