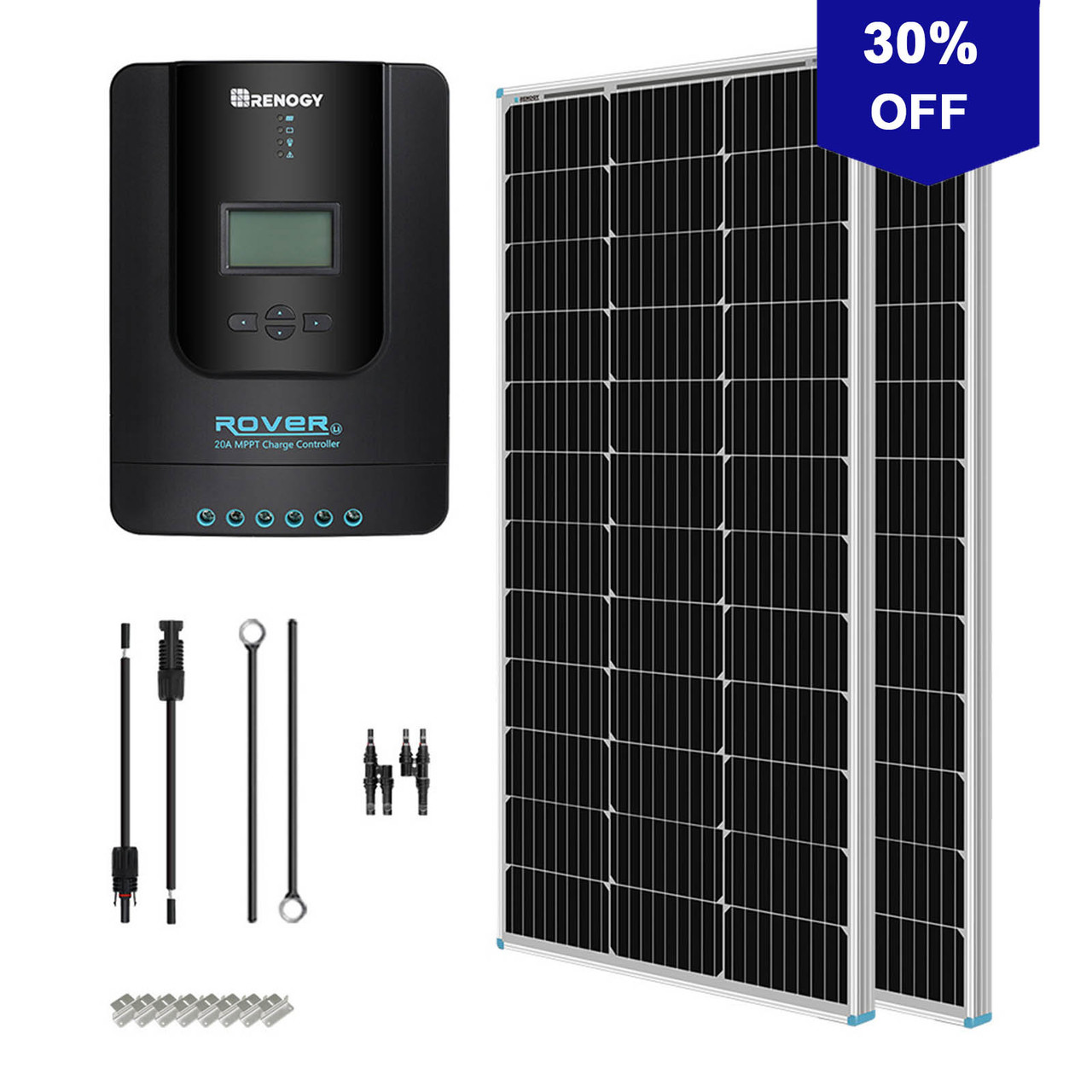

200 Watt 12 Volt Solar Starter Kit w/ MPPT Charge Controller

Maximum Power:
100W

Maximum System Voltage:
600V DC (UL)

Open-Circuit Voltage (Voc):
24.3V

Short-Circuit Current (Isc):
5.21A

Optimum Operating Voltage (Vmp):
20.4V

Optimum Operating Current (Imp):
4.91A

Weight:
14.1 lb (6.4 kg)

Dimensions:
41.8 x 20.9 x 1.4 in (1062 x 530 x 35 mm)

Rated Battery Current:
20/40A

Max. Battery Voltage:
32V

Rated Load Current:
10% to 90% NC

Max Solar Input Voltage:
100VDC

Working Temperature:
-35°C to 45°C/-31°F to 113°F

Max Terminal Size:
8AWG

Weight:
4.41lb

Dimension:
9.37 x 6.81 x 2.85 in

Length:
20ft

AWG:
10

Rating Voltage:
600/1000V

Temperature:
-40°F to +185°F

Length:
8ft

AWG:
8

Rating Voltage:
600/1000V

Temperature:
-40°F to +185°F

Eight Long Cap Bolts and Four Short Bolts:
Four Spring Washers and Four Washers

Four Z Shape Solar Panel Brackets:
Four Nuts

Withstanding voltage:
1000V DC(TUV), 600V(UL)

Rated Current:
50A

Protection Degree:
IP67, mated

Protection Class:
Class II

Temperature:
-40°F to +194°F

opc:


Panels:
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 10-year material and workmanship warranty

Accessories:
1-year material warranty
