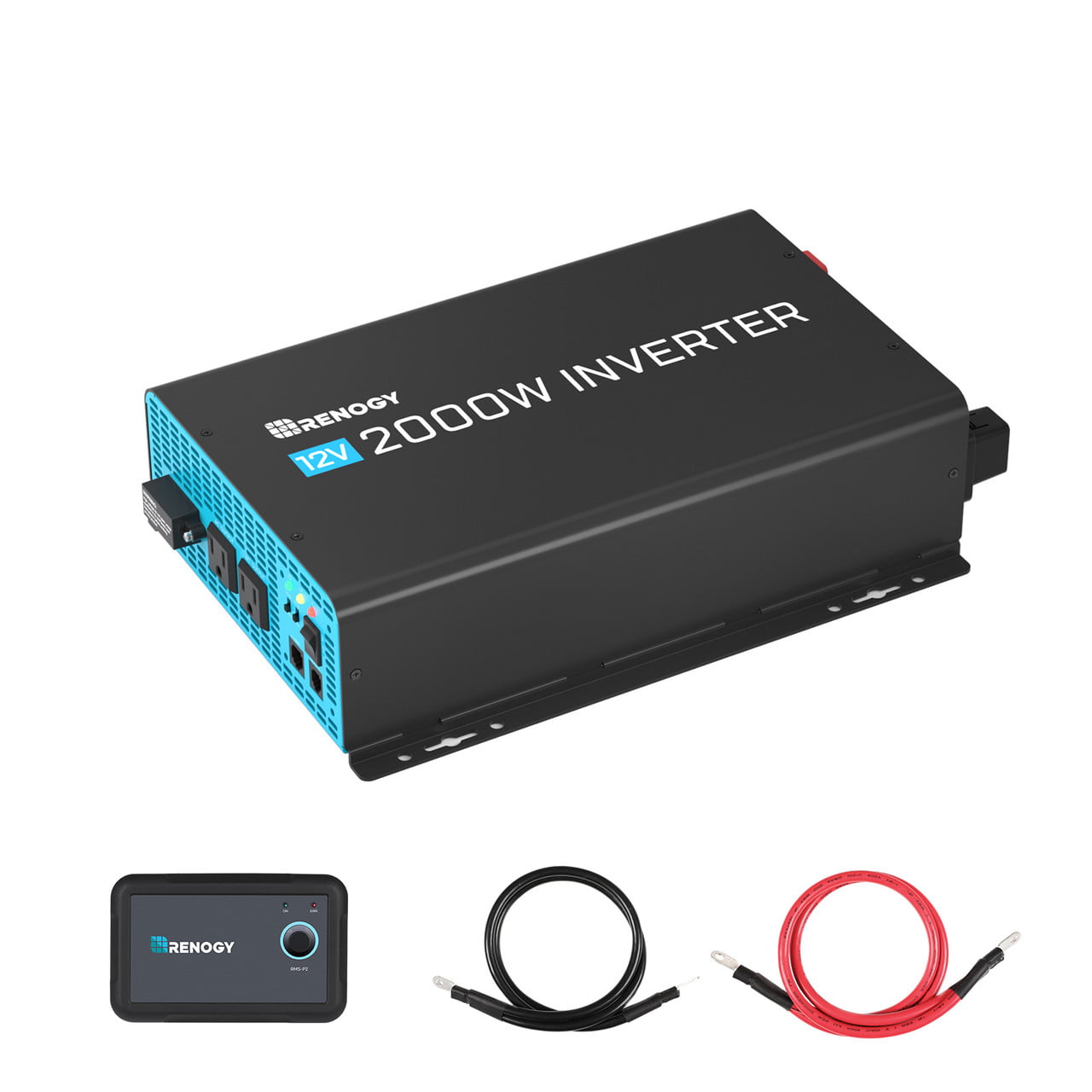

2000W 12V Pure Sine Wave Inverter with Power Saving Mode (New Edition)

Package IncludesW V Pure Sine Wave Inverter with Power Saving Mode xInverter Remote Control x FtInverter Cables x AWG

Output Waveform:
Pure Sine Wave

AC Terminals:
2 x AC Sockets + Terminal Block

DC Terminals:
M8-1.25×15

Communication:
RS485

Operating Temperature:
-4°F -104°F/-20°C – 40°C

Storage Temperature:
-40°F-158°F/’﹣40℃～70℃

Humidity:
Max 93%, Non-condensing

Cooling:
Thermally Controlled Fans

Dimensions (LxWxH):
15.8 x 9.8 x 3.8in / 401 x 249 x 96mm

Weight:
10.4 lbs / 4.7 kg

Continuous Output Power:
2000W

Continuous Output Current:
8.3A AC

Total Harmonic Distortion (THD):
< 3% Linear Load / < 5% Non-linear Load

Power Factor:
＜1

Surge Rating:
4000W (@ 1s)

Output Voltage:
120Vac±10%

Output Frequency (Configurable):
50Hz /60Hz

Rated Battery Input Voltage:
12VDC

Battery Input Voltage Range:
11VDC~16.5VDC

Maximum Continuous Battery Input Current:
166.6A

Inverter Efficiency:
>92%

Full Load Efficiency:
>89%

Power Consumption:
<10W

ECO Power Consumption:
＜5W

Battery Overoltage Shutdown:
16.5VDC

Battery Low Voltage Alarm:
10.5VDC

Battery Low Voltage Shutdown:
10VDC

opc:


Overall Dimensions:
2.8×4.3×1.3 in /70x110x31.8mm

Wired Length:
16.40ft
