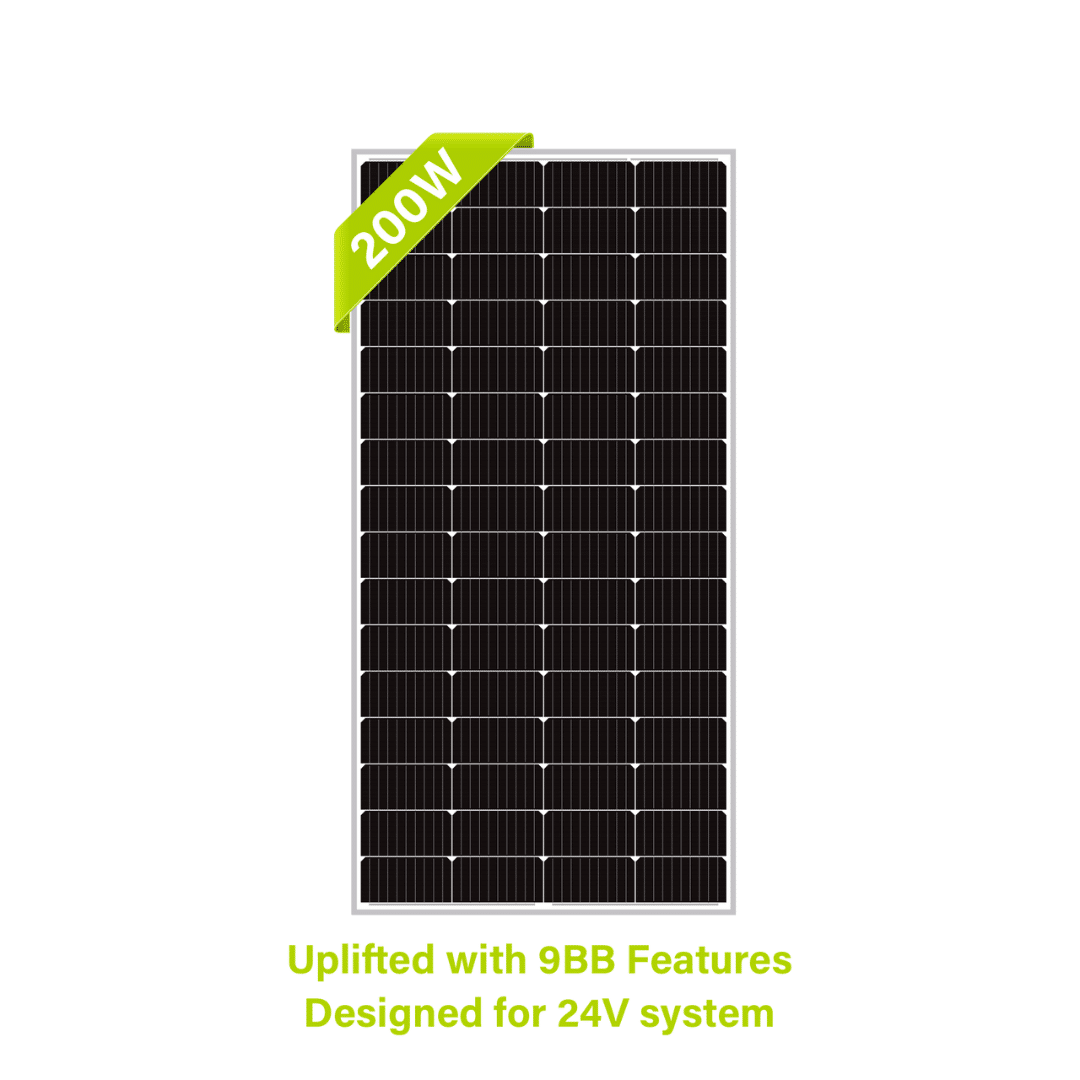

200W 24V Monocrystalline Solar Panel

Features

• 200W/24V Monocrystalline High-efficiency solar panel
• High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
• Nominal 24V DC for standard output
• Heavy-duty anodized frame with pre-drilled holes for mounting
• Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa)
• High-transparent, low iron tempered glass
• Durable TPT back sheet – dissipates heat to insure better panel performance and lifespan
• Pre-installed bypass diodes inside junction box that minimize power drops caused by shading
• Pre-attached 3ft wire with connectors (M/F)
• Product dimensions: 1404 x 705 x 35mm (55.28 x 27.76 x 1.38 in)
• Compatible mount brackets (sold separately): NPB-UZ (2 sets recommended), NPB-200P, NPB-400P

Tech & Specs

• Product Code: NPA200S-24I
• Maximum power (Pmax): 200W
• Voltage at Pmax (Vmp): 37.2V
• Current at Pmax (Imp): 5.38A
• Open-circuit voltage (Voc): 43.6V
• Short-circuit current (Isc): 5.74A
• Temperature coefficient of Voc: -(80±10)mV/°C
• Temperature coefficient of Isc: (0.065±0.015)%/ °C
• Temperature coefficient of power: -(0.5±0.05)%/ °C
• NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s): 47±2°C
• Operating temperature: -40°C to 85°C
• Maximum system voltage: 1000V DC
• Power tolerance: ± 3%
• Maximum Series Fuse Rating: 15A
