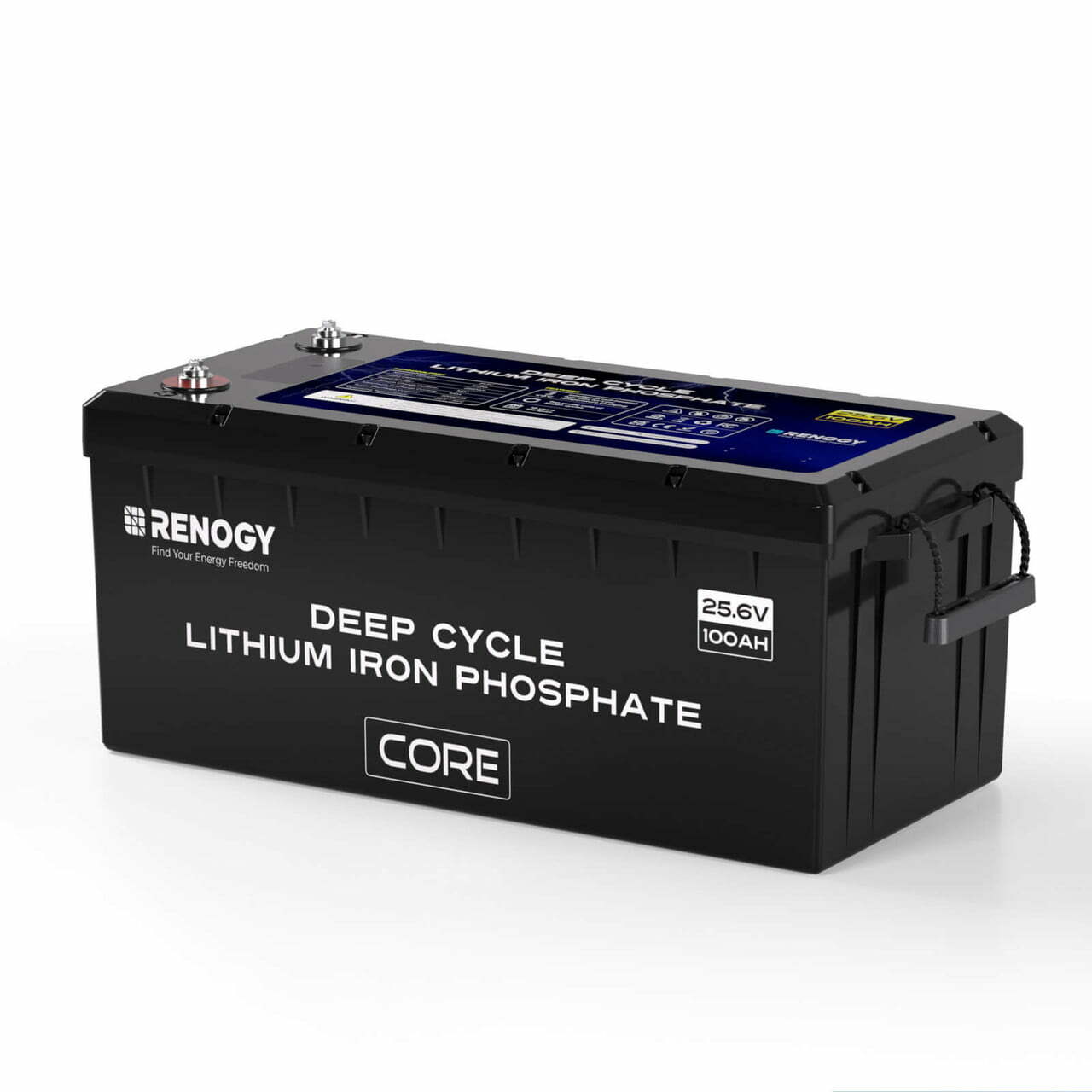

24V 100Ah Core Series Lithium Iron Phosphate Battery

Package IncludesBattery only optionCore V Ah Lithium Iron Phosphate Battery x User Manual x

Battery Type:
Lithium Iron Phosphate

Nominal Voltage:
25.6V

Rated Capacity:
100Ah (0.5C, 25℃)

Voltage Range:
20.0V to 29.2V

Charge Voltage:
29.0V

Maximum Charge Current:
100A

Maximum Discharge Current:
100A

Peak Discharge Current:
300A @ 5s

Cycle Life (0.5C/1C, 25℃):
5000 Cycles (80% DOD, 80% EOL)

Charge Temperature Range:
‘-4°F to 131°F (-20°C to 55°C)

Discharge Temperature Range:
‘-4°F to 140°F (-20°C to 60°C)

Storage Temperature Range:
‘-13°F to 149°F (-25C to 65°C)

Operation Relative Humidity:
10% to 95%

Connection Method:
Series (Up to 2) Parallel (Up to 8) Series & Parallel (2S8P)

Terminal Bolt Size:
M8 x 1.25 x 15 mm

Recommended Terminal Torque:
10 N·m

Housing Material:
ABS & PC

Protection Rating:
IP65

Dimensions:
20.55 x 9.45 x 8.62 inch (522 x 240 x 219 mm)

Weight:
46.3 lbs. (21.0 kg)

Long Terminal Bolts (2):
M8

opc:


Material and Workmanship Warranty:
5 Years

Certifications:
UL, RoHS, MSDS, UN38.3, FCC , PSE, CE, UKCA
