Description
2500Watt max continuous power

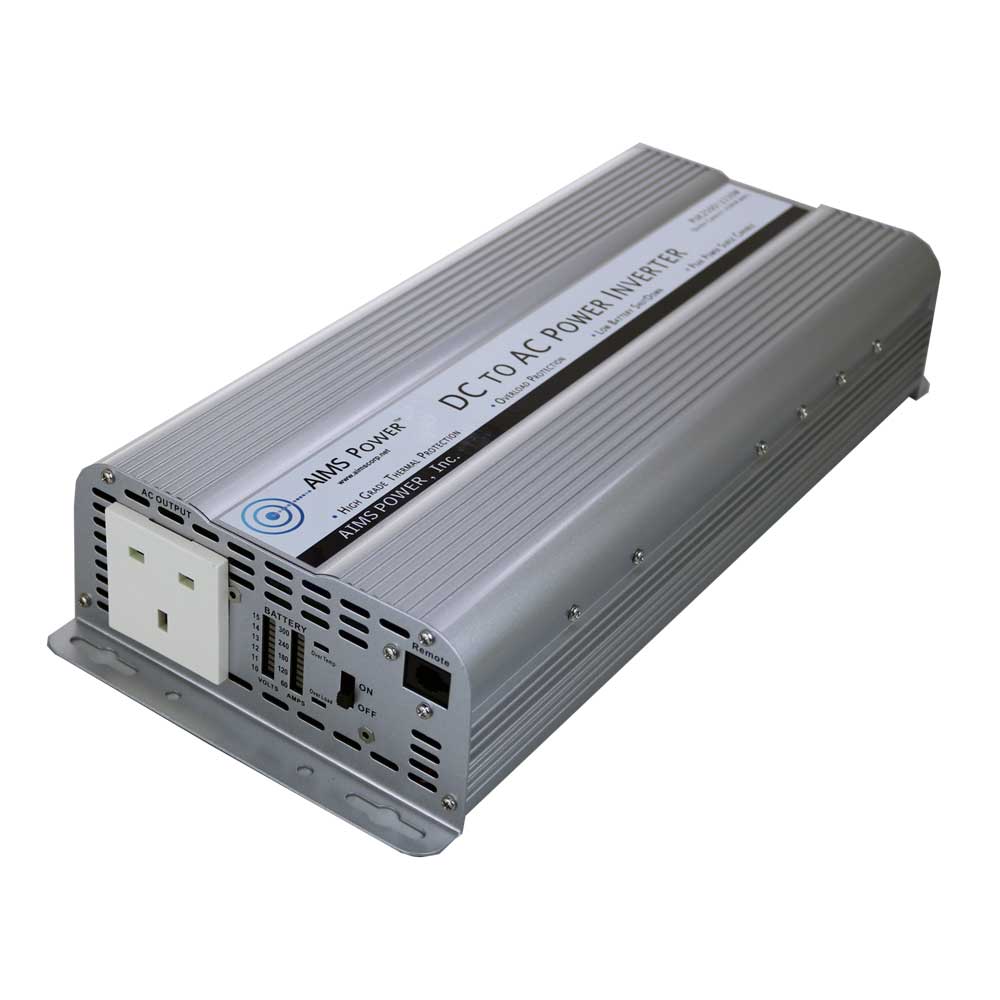

12 Volt Power Inverter
Modified sine wave
Volt meter on front panel to monitor your battery voltage
Amp meter on front panel to monitor your current use (rate at which battery is drained)
Over Temperature LED indicator
Over Load LED indicator
UK Plugs type G 3 prong
On/off switch
Over Temperature protection
Over Load protection Single cooling fan operation thermally controlled Internally fuse protected ac output short circuit protection
Auto reset on most fault conditions
Aluminum case for optimal cooling
Pre-wired for remote on/off switch
Pre-slotted mounting plate
Instruction manual
Free 1 year tech support
1 Year Warranty Parts and Labor
Continuous output power: 2500 Watts
Surge power capability (peak power): 5000 Watts
dc input / operating voltage: 10.5 to 17 Volts
Output voltage: 230 Volts ac +/- 10%
Output wave form: modified sine wave with phase correction
Output frequency: 50 Hz +/- 1 Hz
Battery low voltage alarm: 10.5 +/- 0.5 Volts
Battery low voltage shutdown: 10 +/- 0.5 Volts
No load current: < 0.2 Amps
Full load efficiency: 90%
1/3 load efficiency: 95%
No load minimum operating temperature: -15 degrees Celsius
Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
UK Plug type G 3 prong
High input voltage protection: 17 volts
Low input voltage shutdown: 10 volts
Internal fuse protection
Product size (L x W x H): 14.5”X 6.5”X 3.0rdquo;
Weight: unit 10 lbs boxed 12 lbs
