300 Watt 12 Volt Solar RV Kit

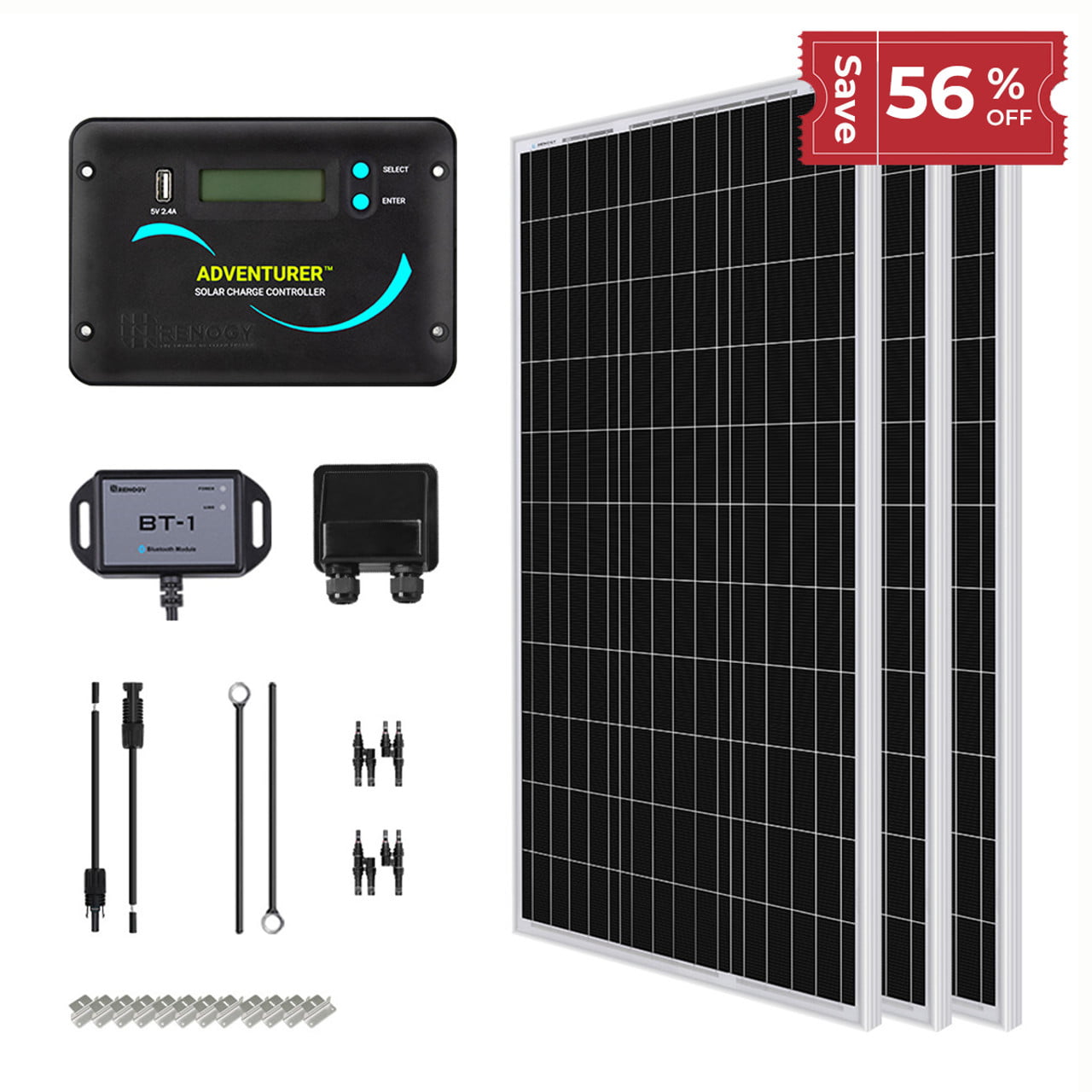

Package IncludesW Mono Solar Panel xRenogy AdventurerA PWM Charge Controller xRenogy Solar Y Branch Connectors xRenogy ft AWG Solar Adaptor Kit xRenogy ft AWG Tray Cables xRenogy Cable Entry Housing xMounting Z Brackets xRenogy BT Bluetooth Module x

Maximum Power:
100W

Maximum System Voltage:
600V DC (UL)

Open-Circuit Voltage (Voc):
24.3V

Optimum Operating Voltage (Vmp):
20.4V

Short-Circuit Current (Isc):
5.21A

Optimum Operating Current (Imp):
4.91A

Dimensions:
41.8 x 20.9 x1.4 in

Weight:
14.1lbs/6.4kg

Nominal Voltage:
12 VDC

Rated Charge Current:
30A

Max. PV Input Voltage:
50 VDC

Max. PV Input Power:
400W (12V)

Length:
16ft

AWG:
10

Rating Voltage:
600V

Temperature:
-40°F to +185°F

Length:
30ft

AWG:
10

Rating Voltage:
600/1000V

Temperature:
-40°F to +185°F

Input Voltage:
5V-12V

Communication Range:
≤15m

Dimensions:
2.6 X 2.01 X 0.61 In

Weight:
120 g (4.2oz)

Withstanding Voltage:
1000V DC(TUV), 600V(UL)

Protection Degree:
IP67, mated

Wiring Size Range:
10, 12, 14 AWG

Temperature:
-40°F to +194°F

Material:
UV-resistant ABS Plastic

Weight (each component):
7.9 oz.

Recommended Adhesive:
Sikaflex 252 or alike

Dimensions (l x w x h):
4.7 x 3.9 x 2.0 in

Cable Gland Diameter Range:
6mm – 12mm

opc:


Eight Long Cap Bolts and Four Short Bolts:
Four Spring Washers and Four Washers

Four Z Shape Solar Panel Brackets:
Four Nuts

Panels:
25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories:
1-year material and workmanship warranty
