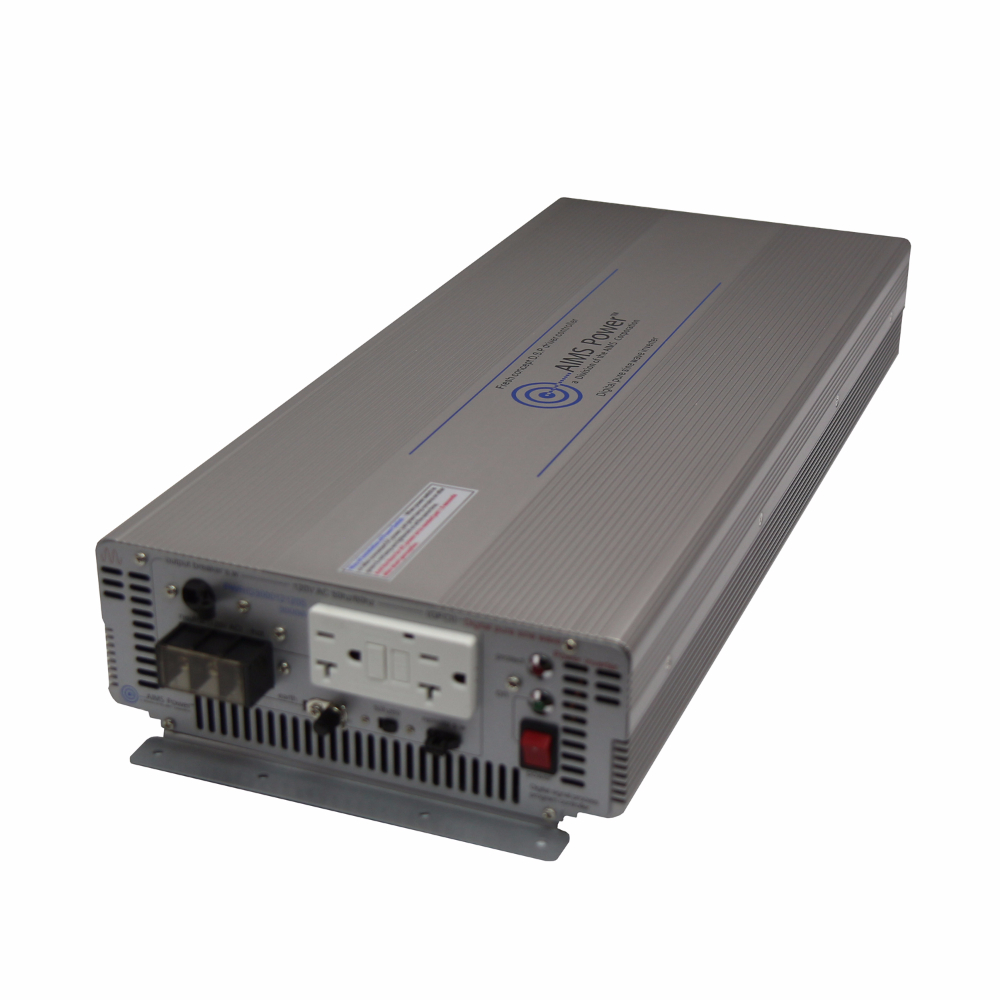

Description
3000 Watt continuous power
6000 Watt surge
24 Volt DC input
Pure sine wave
60hz or 50hz switch
Highly efficient – improved output at low voltage
1 – GFCI Dual Outlet
Direct connect AC Terminal Block
Connector and cable for remote on/off switch
Isolated ground & neutral
Short circuit protection (GFCI and AC Breaker)
On/off switch
5 Function Protection LED indicator
AC Breaker
DC volt meter included
Dual cooling fans thermally controlled
Instruction manual
1 year tech support
1 Year Warranty Parts and Labor replacement
Continuous output power: 3000 Watts
Surge power capability (peak power): 6000 Watts
DC input / operating voltage: 21-32 Volts
Output voltage: 120 Volts ac
Output voltage regulation: +/- 3%
Output wave form: pure sine wave
Output frequency: 50/60 Hz
Battery low voltage alarm: 21 +/- 0.5 Volts
Battery low voltage shutdown: 20 v +/- 0.5 Volts
No load power consumption: fan off <0.45 DC amps or fan on <0.67 DC amps
THD: <5%
Full load efficiency: 90%
1/3 load efficiency: 95%
No load minimum operating temperature: -4 degrees Fahrenheit
Full load maximum operating temperature: 176 degrees Fahrenheit (automatic shutdown)
GFCI Reset able AC Outlet
High input voltage shutdown: 34V
Low input voltage shutdown: 20V
Internal blade fuse protection
Product size (L x W x H): 20.47” x 8.86” x 3.50”
Weight: 16.09 lbs unit boxed 20 lbs
