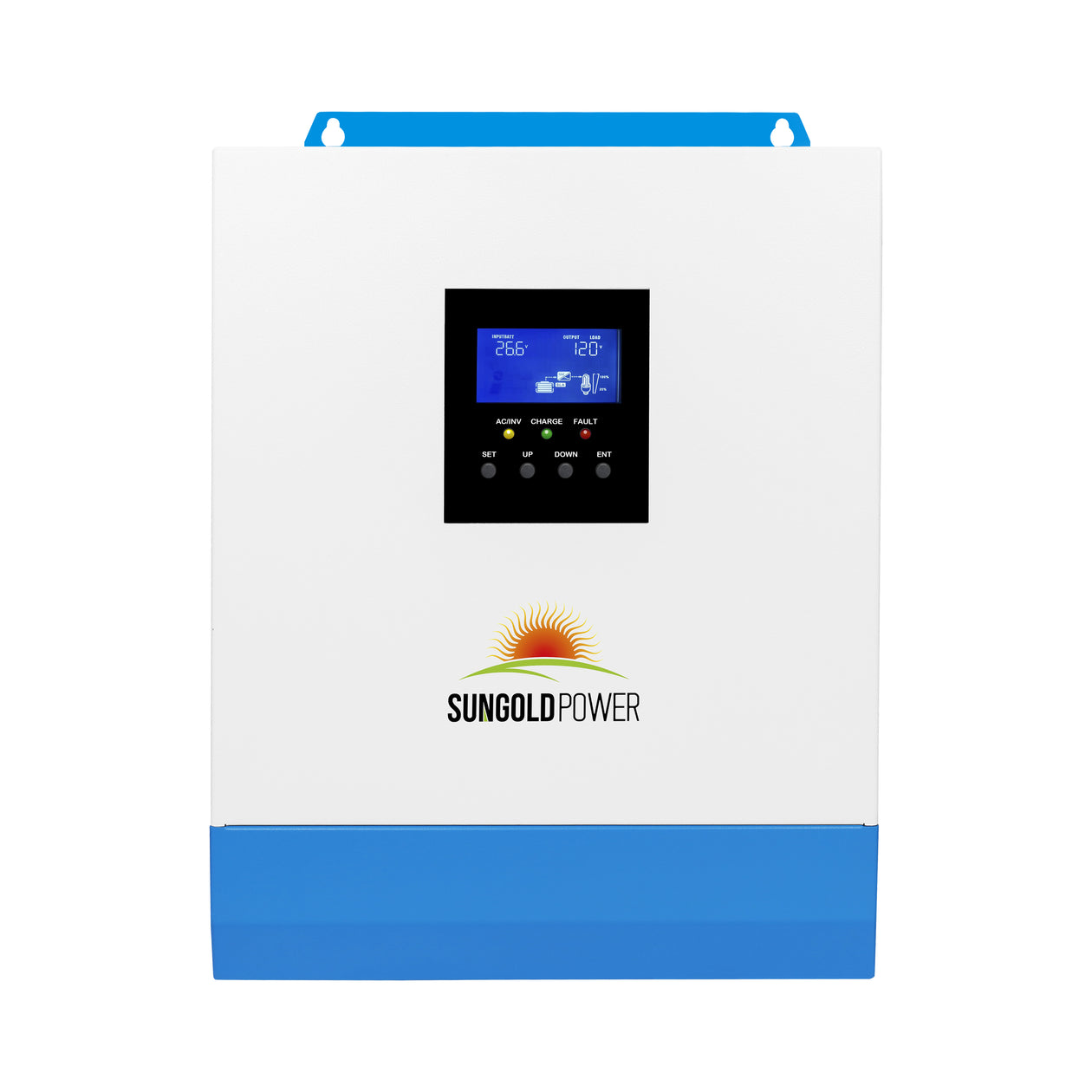

3000W 24V Solar Inverter Charger

Highlight:★ All-in-one solar charge inverter: 3000 Watts Pure Sine Wave Inverter Combined with 80A MPPT solar charging and 40A AC battery charging, you can enjoy stable power from the sun and the utility grid to keep you powered under any circumstances.★ Four charging modes: AC Priority, Solar Priority, Only Solar, and Mains & Solar hybrid charging, Designed with LCD/LED dynamic display of system data and operating status. ★ Uninterruptible Power Supply: If the main/generator is disconnected or the solar charging is insufficient, the Inverter Charger takes over the battery supply to the alternative option within 10ms, which will not let your electronics shut down.★ Battery type: 24V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode for custom inputs to work with virtually all battery types.★ Reliable protection: including short circuit protection, over-voltage and under voltage, protection, overload protection, reverse protection, etc.FeaturesSUNGOLDPOWER 3000W 24V solar inverter combines solar charging, AC/generator battery charging, and battery inverter into one complete unit to make your off-grid system work. This solar inverter charger is compatible with 24V battery packs. It provides four user-configurable AC/solar charging modes and three load output modes. It can turn your system into an uninterruptible power supply (UPS)with only 10 milliseconds automatically switching to off-grid to ensure the load is powered.Main Features:Built-in 60A MPPT solar charge controller, max PV input 1400W40A Smart AC chargerHigh-frequency transformer-less compact designPure sine wave AC 120V output with 50hz/60hz switchOptional WiFi/ GPRS remote monitoring (extra cost)Overload, short circuit, over-discharge protectionAuto-start the generator (Dry Contacts for delivering signal)SpecificationInverter Mode:Output: Pure Sine WaveSurge Rating: 9000W (20 Seconds)Peak Power: 4500VAAC Output : 120VAC ,50HZ/60HZInput Voltage / Rated Battery: 24VDC (minimum start-up voltage:22VBypass Breaker Current: 40AIdle Power: 50WPower Saver Mode Idle Consumption: 25WMPPT Solar Charging Mode:Maximum Input Power: 1400wPV Charging Current: 0-60AMax.PV Open Circuit Voltage: 100VPV operation voltage range: 30-100VDCMppt Voltage Range: 30-85VDCRecommended wire: 8 AWGAC Charging Mode:Rated AC input: 110V, 50HZ/60HZInput Voltage Range: 90VAC-140VACConversion Time: 10msBattery Type: Lead Acid and Lithium BatteryMaximum Charging Current: 40ACharging Voltage Range:20-33VDCShort-Circuit Protection: Breakers and fusesOvercharge Protection: Yes. Automatically alerts and turns off charging after 1 min)Mechanical Specification:Size: 378mm*280mm*103mmNet Weight: 6.8kgNoise: ≤60dBOperating Temperature Range:5°F ~ 131°F/ -15°C ~ 55°CCooling Fan: YesUser ManualDownload Pure Sine Wave Solar Inverter Charger User's ManualFAQ
