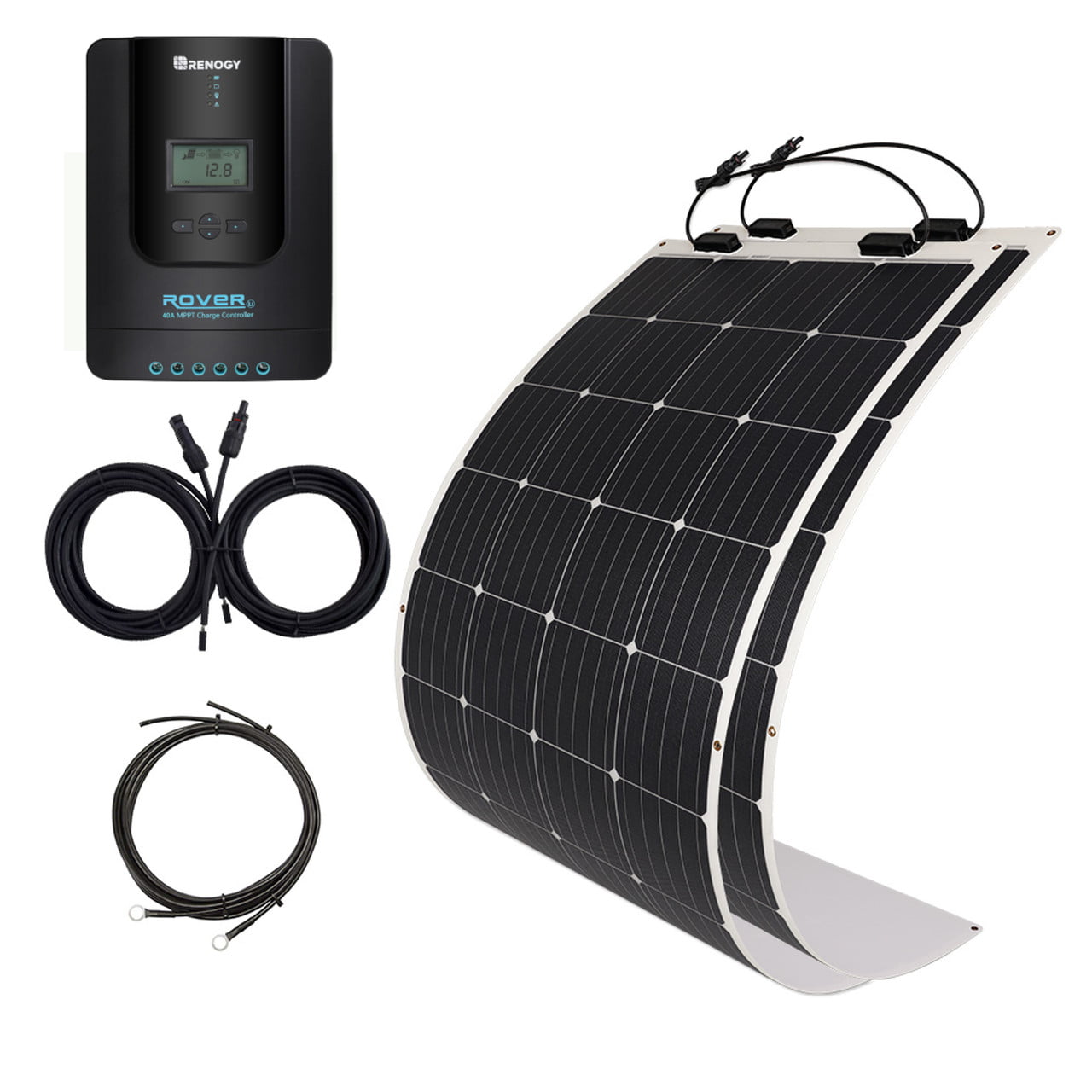

350 Watt Solar Flexible Kit

Package IncludesW Flexible Solar Panel xRover Li A MPPT Charge Controller xft AWG Battery to Charge Controller Tray Cables xft AWG Solar Panel to Charge Controller Adaptor Kit x

Maximum Power at STC:
175W

Maximum System Voltage:
600V DC (UL)

Open-Circuit Voltage (Voc):
23.9V

Optimum Operating Voltage (Vmp):
19.5V

Optimum Operating Current (Imp):
8.89A

Short-Circuit Current (Isc):
9.50 A

Dimensions:
59.2 x 26.5 x 0.08 in (1504 x 673 x 2 mm)

Weight:
6.2 lbs (2.8 kg)

Nominal Voltage:
12V/24V Auto Recognition

Battery Rated Current:
40A

Max Battery Voltage::
32V

Max. PV Input Voltage:
100 VDC

Max. PV Input Power:
12V/520W, 24V/1040W

opc:


Length:
8ft

AWG:
10

Rating Voltage:
600/1000V

Temperature:
-40°F to +185°F

Length:
20ft

AWG:
10

Rating Voltage:
600/1000V

Temperature:
-40°F to +185°F

Panels:
25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories:
1-year material and workmanship warranty
