36V/48V Rover Boost 10A MPPT Solar Charge Controller

Package IncludesVV Rover Boost A MPPT Solar Charge Controller x

Nominal System Voltage:
36V / 48V, Auto Recognition (Non-Lithium)

Rated Charge Current:
10A

Max. PV Input Power:
PV Input Power: 500W/36V; 650W/48V；Charging Power: 450W/36V; 600W/48V

MPPT Voltage Range:
15 ~ 25VDC / 36V；15 ~ 40VDC / 48V

Solar Input Voltage Range (VOC):
15 ~ 25VDC / 36V；15 ~ 40VDC / 48V

Max Input Current (short-circuit, Isc):
35A

Power Limiting Protection:
Up to 600W/36V; 800W/48V

Battery Operating Range:
30 ~ 65 VDC

Power Consumption:
≤ 2W

Ground Type:
Common Negative Lug (M3)

Battery Types:
AGM/Sealed, GEL, FLOODED, LFP, USER*

Electronic Protections:
Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection

Protection Level:
IP20

Operating Temperature Range:
-31°F ~ 149°F / -35℃ ~ + 65℃

Storage Temperature Range:
-40°F ~ 176°F / -40℃ ~ + 80℃

Operating / Storage Humidity:
0-95% RH

Temperature Compensation:
‘-3mV / ℃ / 2V (Non-Lithium)； 0mV / ℃ / 2V; no compensation (Lithium)

opc:


Dimensions:
8.8 x 7.6 x 2.9 inch / 224 x 192 x 74.5mm

Weight:
2.65 lbs / 1.2 Kg

Max. Terminals Size:
16 ~ 2 AWG, M6-12×1

opc:


CE and RoHS compliant:
YES

FCC Class B Part 15 Compliant:
YES

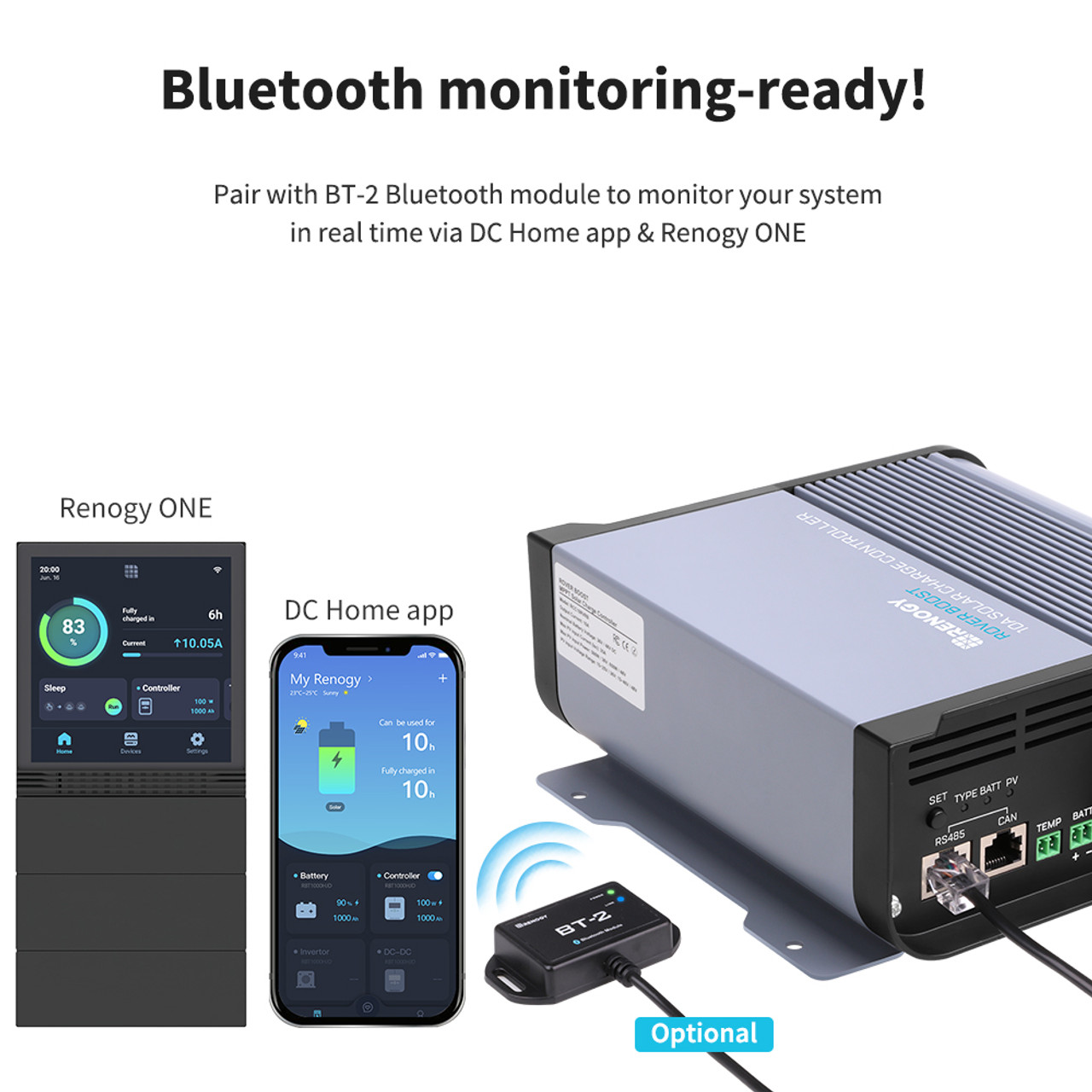

Remote Monitor:
Bluetooth Module BT-2 (RS485 / CAN bus signal)

opc:


Material and workmanship warranty:
2 Year

opc:
