400 Watt 12 Volt Solar Starter Kit
$399.99
【Efficient Performance】 The Starter Kit will produce an average of 2kWh of electricity per day (Based on 5 hours of direct sunlight condition). The Cell Efficiency can reach 22%. The bypass diode can ensure the panel has an excellent performance in a low-light environment and the TPT back sheet dissipates excess heat to ensure smooth output performance.
【Solid Quality】 Advanced encapsulation material with multi-layered sheet laminations protects cells from physical damage or distortion, improving cell performance and providing a long service life.
【Smart Function】 The Wanderer PWM Charge Controller is compatible with four different types of batteries: sealed, Gel, Flooded, and Lithium batteries. It also features advanced 4-stage charging (bulk, boost, float, and equalization) to ensure your battery is efficiently and safely charged to 100%.
【Full System Protection】 The Wanderer PWM Charge Controller has built-in protection to safeguard your systems, such as reverse polarity protection, battery overcharging protection, overload protection, and short circuit protection.

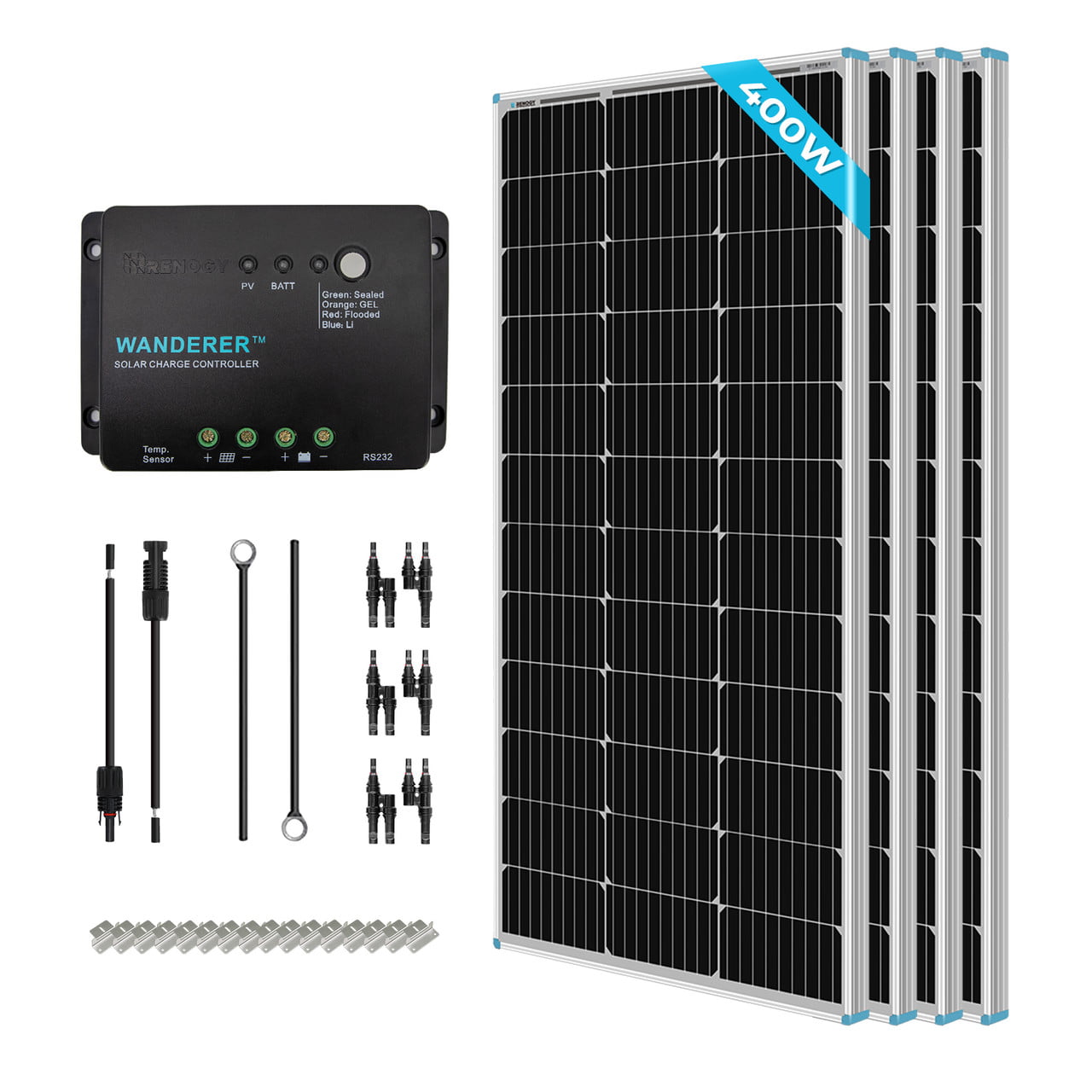

【Ready to Install】 This Renogy Solar Kit includes the equipment necessary for building a new system. The necessary cables, Z-brackets, Solar Y Branch Connectors and pre-drilled holes on the back frame of the panel allow fast and secure mounting.
Description
Package IncludesW Mono Panel xRenogy Solar Y Branch Connectors xMounting Z Brackets xRenogy ft AWG Solar Adaptor Kit A pair xRenogy ft AWG Tray Cables A pair xRenogy Wanderer Li A PWM Charge Controller x
Maximum Power:
100W
Open-Circuit Voltage (Voc):
24.3V
Optimum Operating Voltage (Vmp):
20.4V
Short-Circuit Current (Isc):
5.21A
Optimum Operating Current (Imp):
4.91A
Dimensions:
41.8*20.9*1.38in/1062x530x35mm
Weight:
14.1lbs/6.4kg
opc:
Nominal Voltage:
12 VDC
Rated Charge Current:
30A
Max. PV Input Voltage:
25 VDC
Max. PV Input Power:
400W (12V)
Length:
20ft
AWG:
10
Rating Voltage:
600/1000V
Temperature:
-40°F to +185°F
Length:
8ft
AWG:
10
Rating Voltage:
600/1000V
Temperature:
-40°F to +185°F
Withstanding Voltage:
1000V DC(TUV), 600V(UL)
Protection Degree:
IP67, mated
Wiring Size Range:
10, 12, 14 AWG
Temperature:
-40°F to +195°F
Eight Long Cap Bolts and Four Short Bolts:
Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets:
Four Nuts
Panels:
25-year power output warranty: 5 year 95% efficiency rate, 10 year 90% efficiency rate, 25 year 80% efficiency rate 10-year material and workmanship warranty
Accessories:
1-year material and workmanship warranty
Specification
