4000 WATT PURE SINE INVERTER CHARGER 24Vdc TO 120Vac OUTPUT LISTED TO UL & CSA – 3 in Stock
Roll over image to zoom in
Click to open expanded view

4000 WATT PURE SINE INVERTER CHARGER 24Vdc TO 120Vac OUTPUT LISTED TO UL & CSA – 3 in Stock

$1,719.00

Out of stock

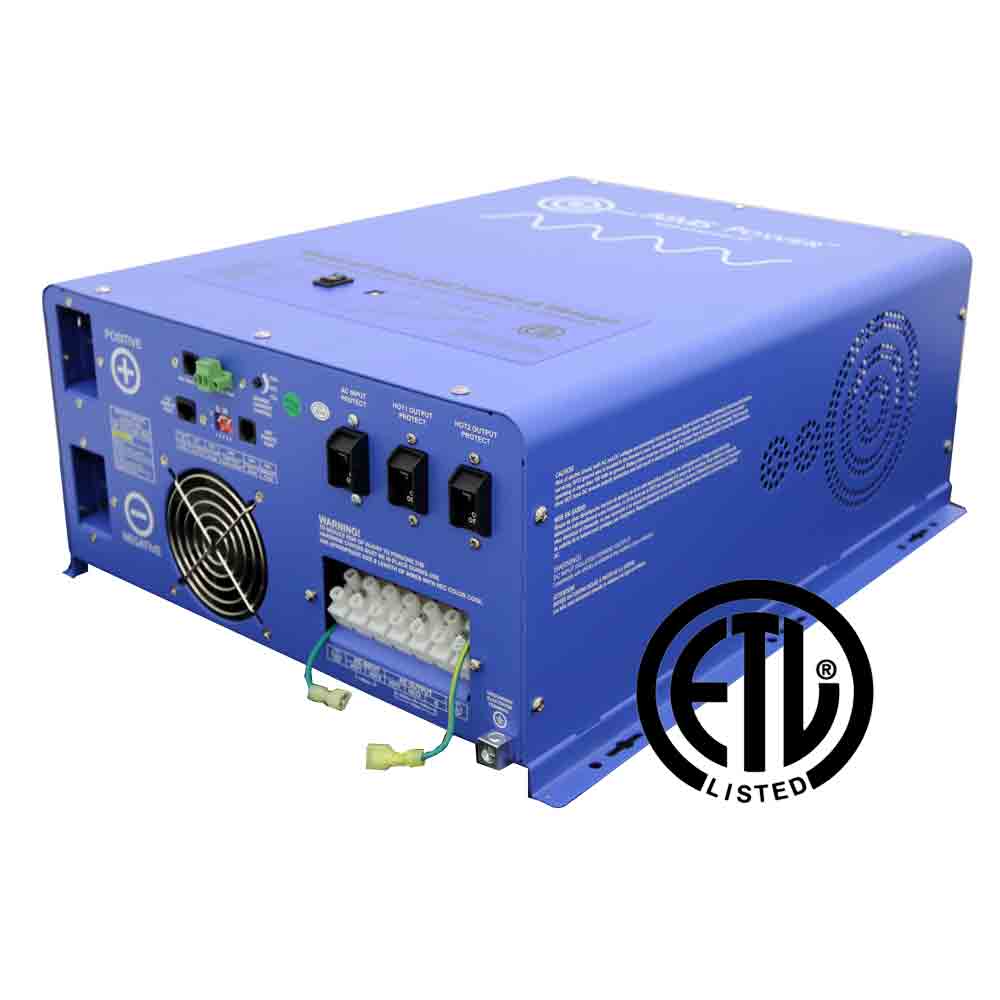

AIMS Power 4000 Watt Pure Sine Low Frequency Inverter, single phase with built-in battery charger and transfer switch. This inverter charger is perfect for medium-sized industrial applications that depend upon power being available even under heavy load. This heavy-duty inverter charger is ready to go wherever you need it. Use this product for renewable solar, off-grid, business back up power, mobile and emergency backup power applications anywhere that uses 100/110/120 volts of alternating current. This product also has auto frequency detection that allows users to operate at either 50 or 60 hertz.

SKU: AP-PICOGLF4024120UL Category:

$1,719.00

Description

  • 4000 watt low frequency inverter
  • 12000 watt surge for 20 seconds 300% surge capability
  • 24 Volt DC
  • Single phase 120Vac output
  • Listed to UL 458, 1741, 1012 and CSA 22.2 NO 107.1 & 107.2
  • Battery priority selector
  • AC Direct connect terminal block
  • Marine coated and protected
  • Multi stage smart charger 45 Amp
  • Charges lithium LiFePO4, gel, AGM and lead batteries. We recommend checking battery charging specifications for all batteries.
  • Remote panel available LED or LCD
  • Auto frequency
  • 10msec typical transfer time
  • Selectable 25W power save mode (hibernation)
  • 7 battery type settings for charger
  • Allows start up and through power with depleted batteries
  • Automatic transfer switch
  • Continuous output power: 4000 Watts
  • Surge rating: 12000 Watts (20 Seconds)
  • Output waveform: Pure Sine/Same as input (Bypass Mode)
  • Output voltage 100-110-120Vac
  • Output breaker: 50 Amps
  • Nominal efficiency: >88% (Peak)
  • Line mode efficiency: >95%
  • Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical transfer time: 10ms (Max)
  • THD: < 10% DC
  • Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)
  • Input Specifications
  • Nominal input voltage: 24.0Vdc
  • Minimum start voltage: 20.0Vdc
  • Low battery alarm: 21.0Vdc-22.0Vdc
  • Low battery trip: 20.0Vdc-21.0Vdc
  • High voltage alarm: 32.0Vdc
  • Low battery voltage restart: 26.6Vdc
  • Idle consumption: 52.5 watts
  • Idle consumption with power saver mode ON: <25 watts
  • Output voltage: depends on battery Type
  • Charger rate: 45A
  • Over charge protection shutdown 31.4V
  • Selectable charge setting based on battery type
  • Adjustable charge current: off-15%-100%
  • Four stage smart charger
  • 50 amp automatic transfer switch
  • 10 ms (max)

    • Specification

    Additional information

    Brand

    AIMS Power
    Voltage
