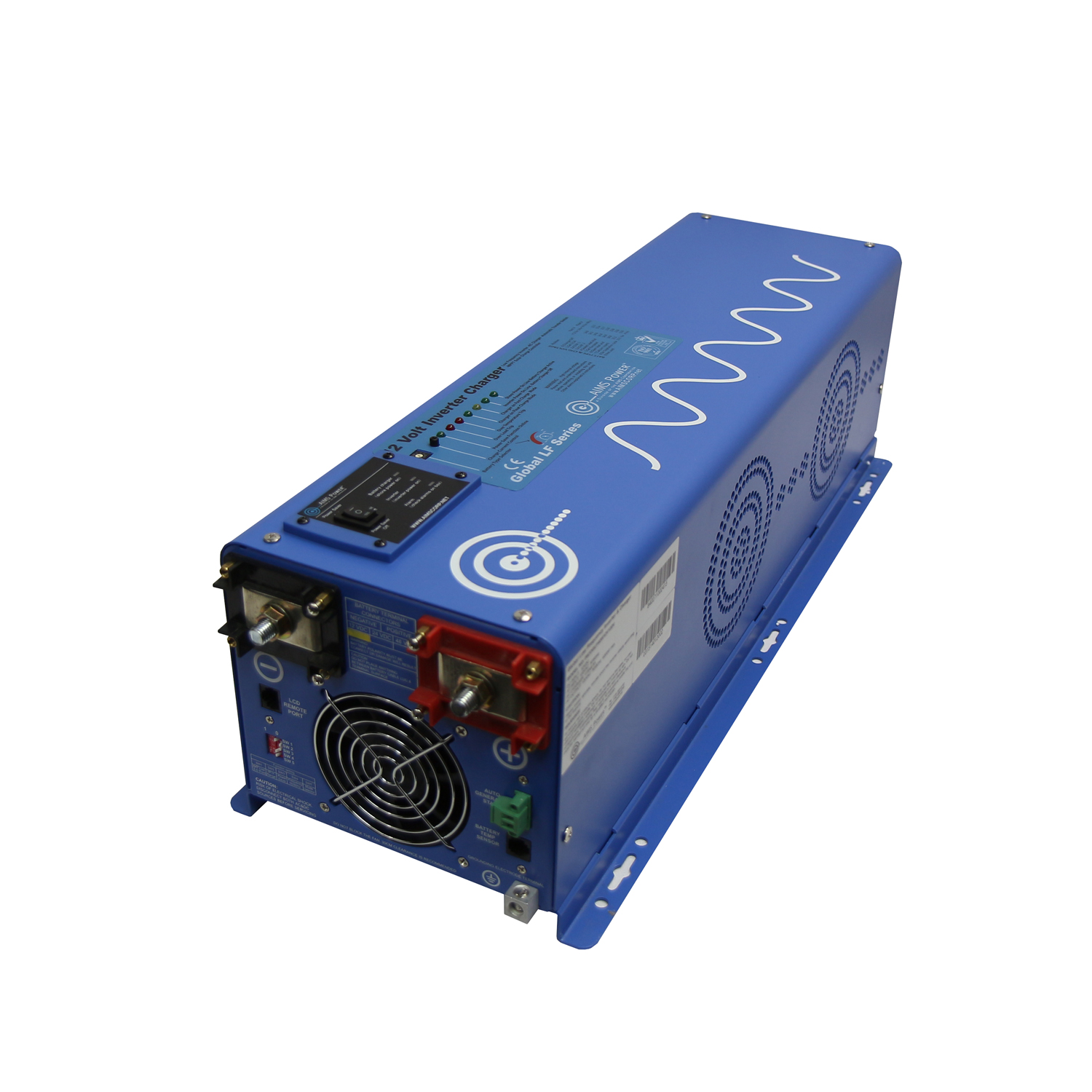

4000 Watt Pure Sine Inverter Charger 48Vdc / 240Vac Input & 120/ 240Vac Split Phase Output

$1,541.00

In stock

The AIMS 4000 Watt, 48 Volt DC to 120/240 Volt AC pure sine wave inverter charger with built-in transfer switch and battery charger is your solution for backup or off grid power solutions. This inverter is split-phase and will output 110/120 or 220/230/240Vac, and operates at 50 or 60Hz via the SW4 dipswitch on the DC side of the product. This means that this inverter works internationally and is operable with nearly any electrical system on the planet.

SKU: AP-PICOGLF40W48V240VS Category:

$1,541.00

Description

  • 4000 watt low frequency inverter
  • 12000 watt surge for 20 seconds 300% surge capability
  • 48 Volt DC
  • 120/240 VAC split phase output
  • Battery priority selector
  • Terminal block
  • Marine coated and protected
  • Multi stage smart charger 115 Amp
  • Charges lithium LiFePO4, GEL, AGM and lead batteries. We recommend to check battery charging specifications for all batteries.
  • Remote panel available
  • Auto frequency
  • 10msec typical transfer time
  • Optional 25W power save mode
  • 7 battery type settings for charger
  • Automatic transfer switch
  • Continuous output power: 4000 Watt
  • Surge rating: 12000 Watt (20 seconds)
  • Output: 110/120/220/240 VAC 50 or 60 Hz
  • Output waveform: pure sine/same as input (bypass mode)
  • Nominal efficiency: >88% (peak)
  • Line mode efficiency: >95%
  • Output frequency: 50Hz +/- 0.3Hz and  60Hz +/- 0.3Hz
  • Typical transfer time: 10ms (max)
  • THD: < 10% DC
  • Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)
