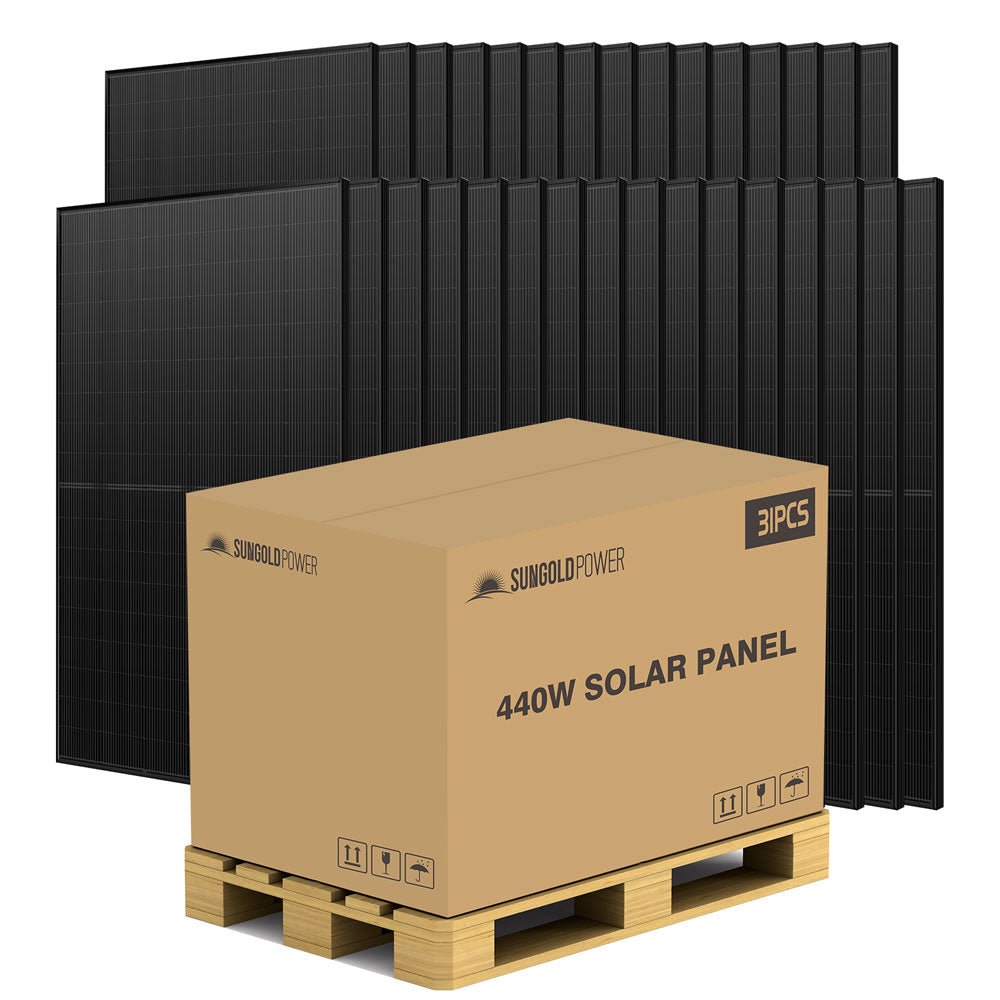

440W MONO BLACK N-Type SOLAR PANEL FULL PALLET (31 PANELS) UL61730 CEC Listed
$4,907.00
Highlight:High Efficiency Module: This module comes with Mono N-Type Technology and has a module efficiency up to 22.5%. SunGoldPower 440W panels provide more output per surface area than most traditional panels.High Tolerance: 440W solar panels are made with half-cell technology,it improves the power output and performance of solar modules because they offer a higher shade tolerance due to unique wiring system and number of cells increases.Widely Use: 440W solar panel is ideal for off-grid,on grid or hybrid solar system,can be an ideal facility used in RV, Tiny House, marine, household power supply, commercial building etc. It helps to save power consumption and save you much more in the long future.Warranty: 12 Years Performance warranty 30 years Linear power warranty ,TUV certificated,UL61730 ,CEC Listed.
Description
Off-grid & On-grid Solution &
Hybrid System
This high efficiency N-Type Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.

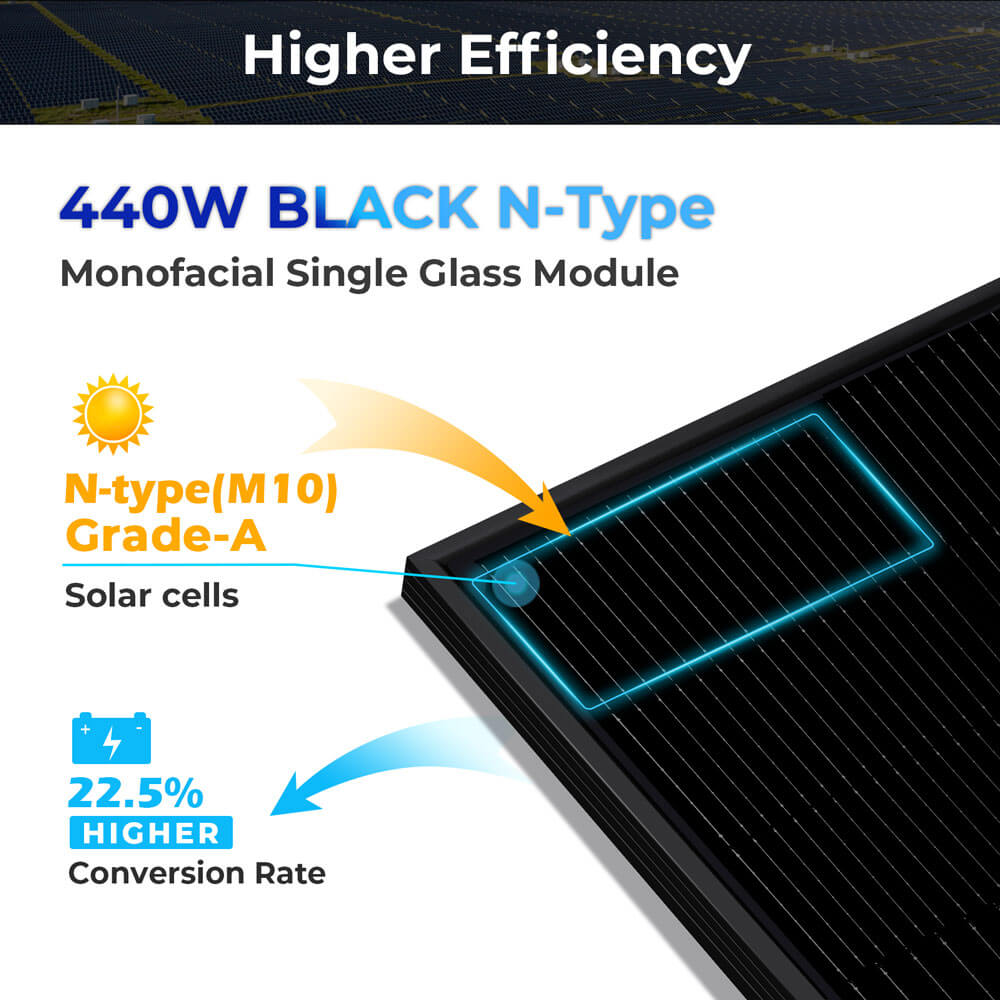

High efficiency
30-year lifespan delivers 10-30% more power compared with conventional P-type modules

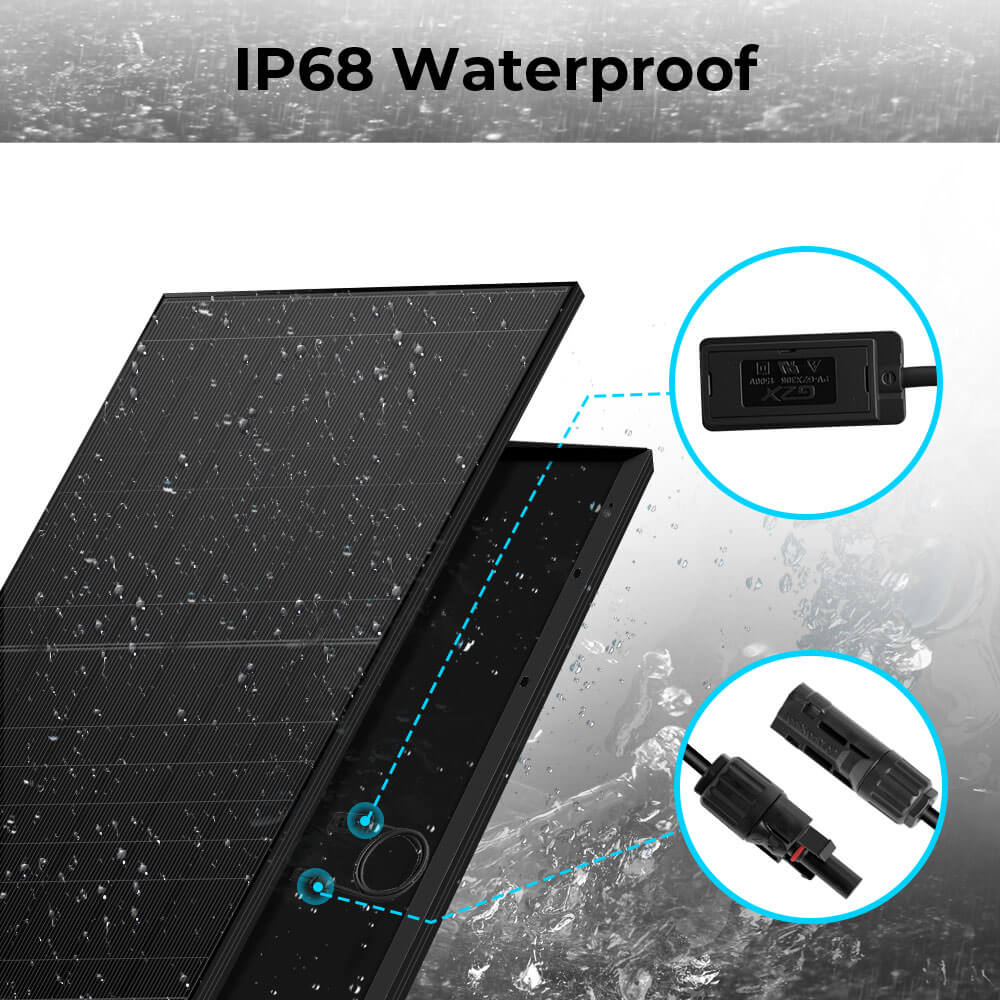

Water Proof
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).
Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .
Home Solar System
With balanced power, improved stability, and economical electricity costs.
| Model Type | SGN-440-SW5 |
|---|---|
| Peak Power (Pmax) | 440W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.15A |
| Maximum Power Voltage (Vmp) | 33.48V |
| Short Circuit Current (Isc) | 13.73A |
| Open Circuit Voltage (Voc) | 39.03V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output wire | 4mm² (IEC),12 AWG (UL) |
| Number of Cells | 108 cells(2×54) |
| Cell Type | N-type monocrystalline (M10) |
| Certifications | UL 61730 CE TUV CEC Listed |
| Product Weight | 46.30 lbs |

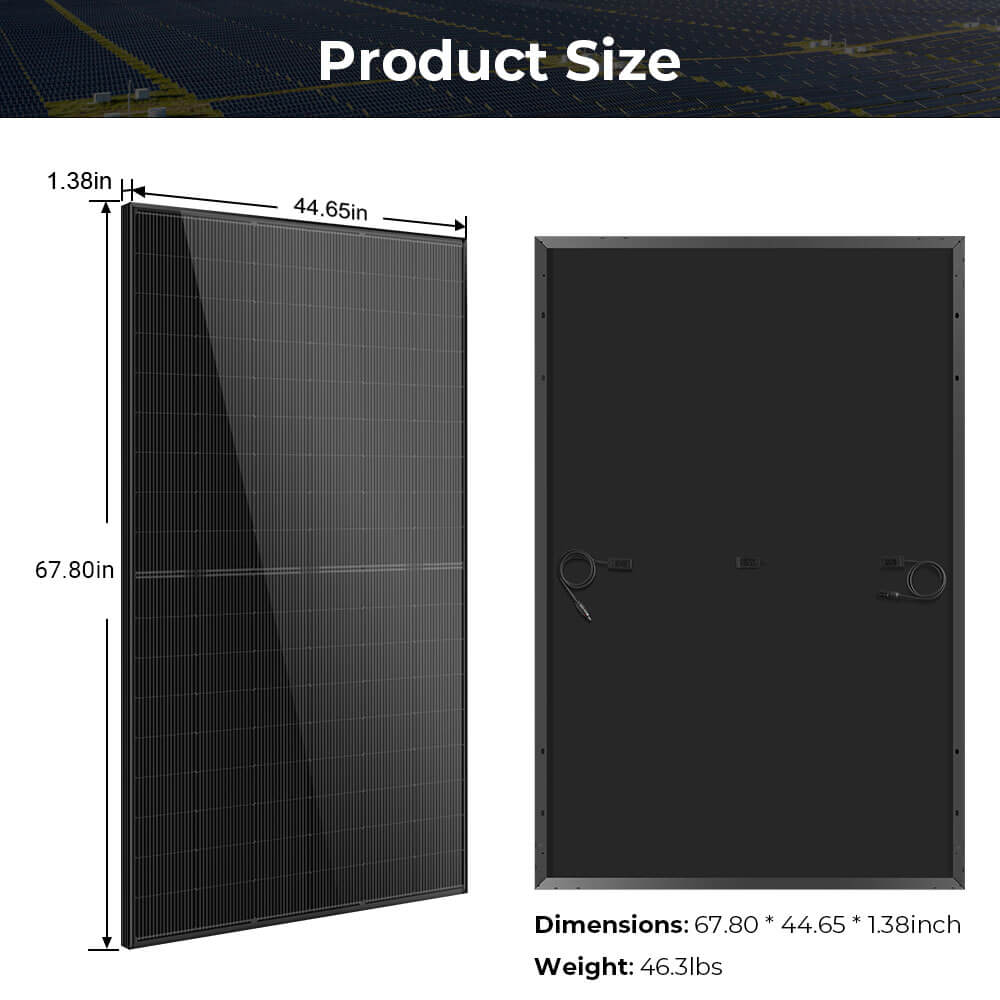

| Product Dimension | 67.80 * 44.65 * 1.38 inch |
| Package Weight | 92.6lbs（2PCS） |
| Package Dimension | 67.80*47.6*3.5inch（2PCS） |
| Material and workmanship warranty | 12 Years Performance warranty 30 years Linear power warranty |
Highlights
Highlight:
- High Efficiency Module: This module comes with Mono N-Type Technology and has a module efficiency up to 22.5%. SunGoldPower 440W panels provide more output per surface area than most traditional panels.
- High Tolerance: 440W solar panels are made with half-cell technology,it improves…
Highlight:
- High Efficiency Module: This module comes with Mono N-Type Technology and has a module efficiency up to 22.5%. SunGoldPower 440W panels provide more output per surface area than most traditional panels.
- High Tolerance: 440W solar panels are made with half-cell technology,it improves the power output and performance of solar modules because they offer a higher shade tolerance due to unique wiring system and number of cells increases.
- Widely Use: 440W solar panel is ideal for off-grid,on grid or hybrid solar system,can be an ideal facility used in RV, Tiny House, marine, household power supply, commercial building etc. It helps to save power consumption and save you much more in the long future.
- Warranty: 12 Years Performance warranty 30 years Linear power warranty ,TUV certificated,UL61730 ,CEC Listed.
Manual
Off-grid & On-grid Solution &
Hybrid System
This high efficiency N-Type Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.
High efficiency
30-year lifespan delivers 10-30% more power compared with conventional P-type modules
Water Proof
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).
Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .
Home Solar System
With balanced power, improved stability, and economical electricity costs.
Certification
Off-grid & On-grid Solution &
Hybrid System
This high efficiency N-Type Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.
High efficiency
30-year lifespan delivers 10-30% more power compared with conventional P-type modules
Water Proof
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).
Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .
Home Solar System
With balanced power, improved stability, and economical electricity costs.
Specification
Additional information
| Weight | 46.300 lbs |
|---|
