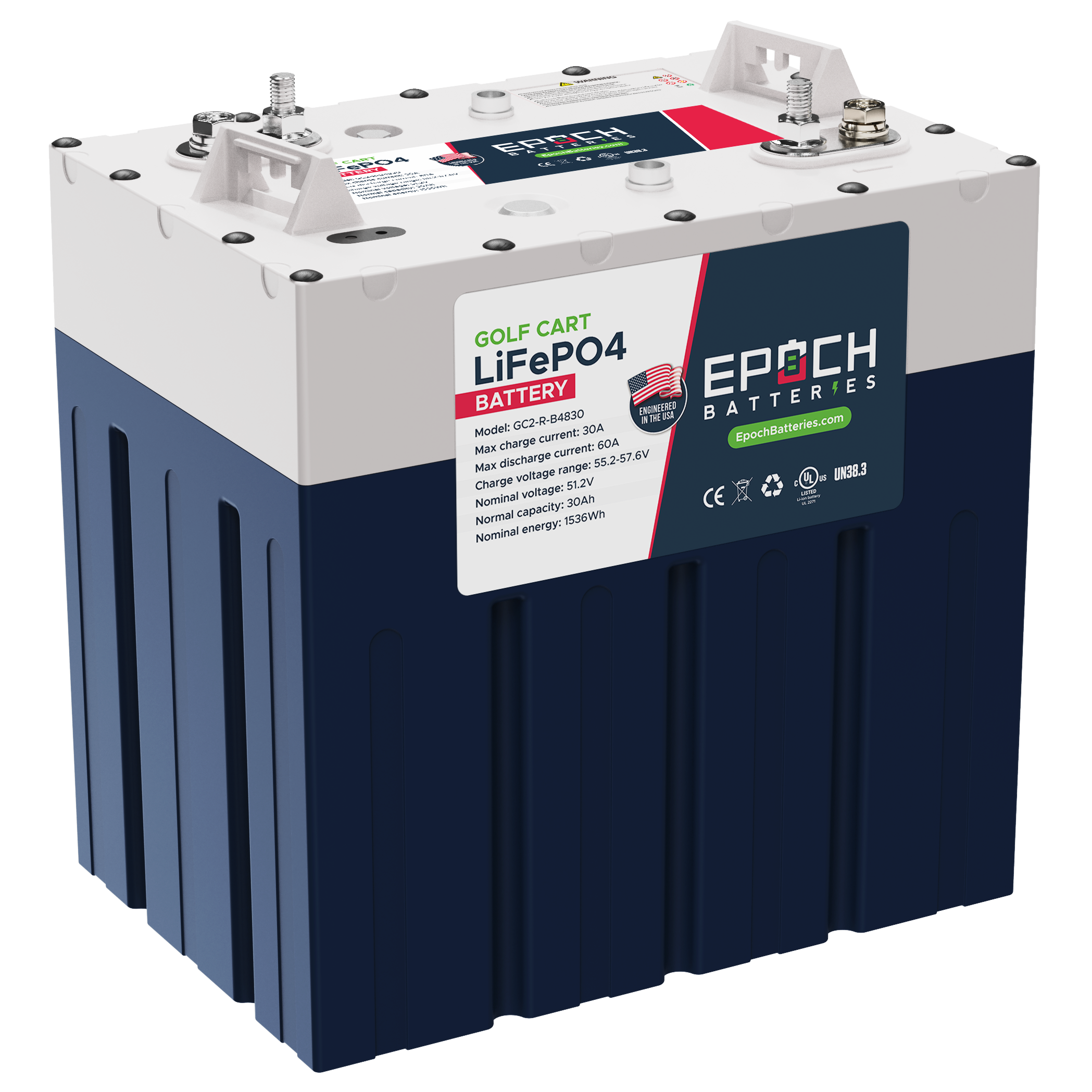

48V 30Ah GC2 – Golf Cart LiFePO4 Lithium Battery

Voltage:

51.2V Nominal

Chemistry:

LiFePO4

Max Charge Voltage:

57.6V

Operating Voltage Range:

40.0 – 57.6V

Ah Capacity:

30Ah

Cell configuration:

16S

Max Continuous Discharge Amps:

60A

Max Discharge Peak Current Amps:

100A (10 Seconds) – 200A (3 Seconds)

Max Charge Current Amps:

30A

Charge Temp Range:

0°C (32°F) / 55°C (131°F)

Discharge Temp Range:

-20°C (-4°F) / 55°C (131°F)

Storage Temp:

0°C (32°F) / 30°C (86°F) (<6 Months)

Weight:

33 (LBS)

Depth Inches:

7.1

Width Inches:

10.2

Height Inches:

10.7

Safety Features:

BMS (Battery Management System)
Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature

Series | Parallel:

Max (10) in Parallel = 300 Amp Hours

Data Specification Sheet Download:

Click Here
