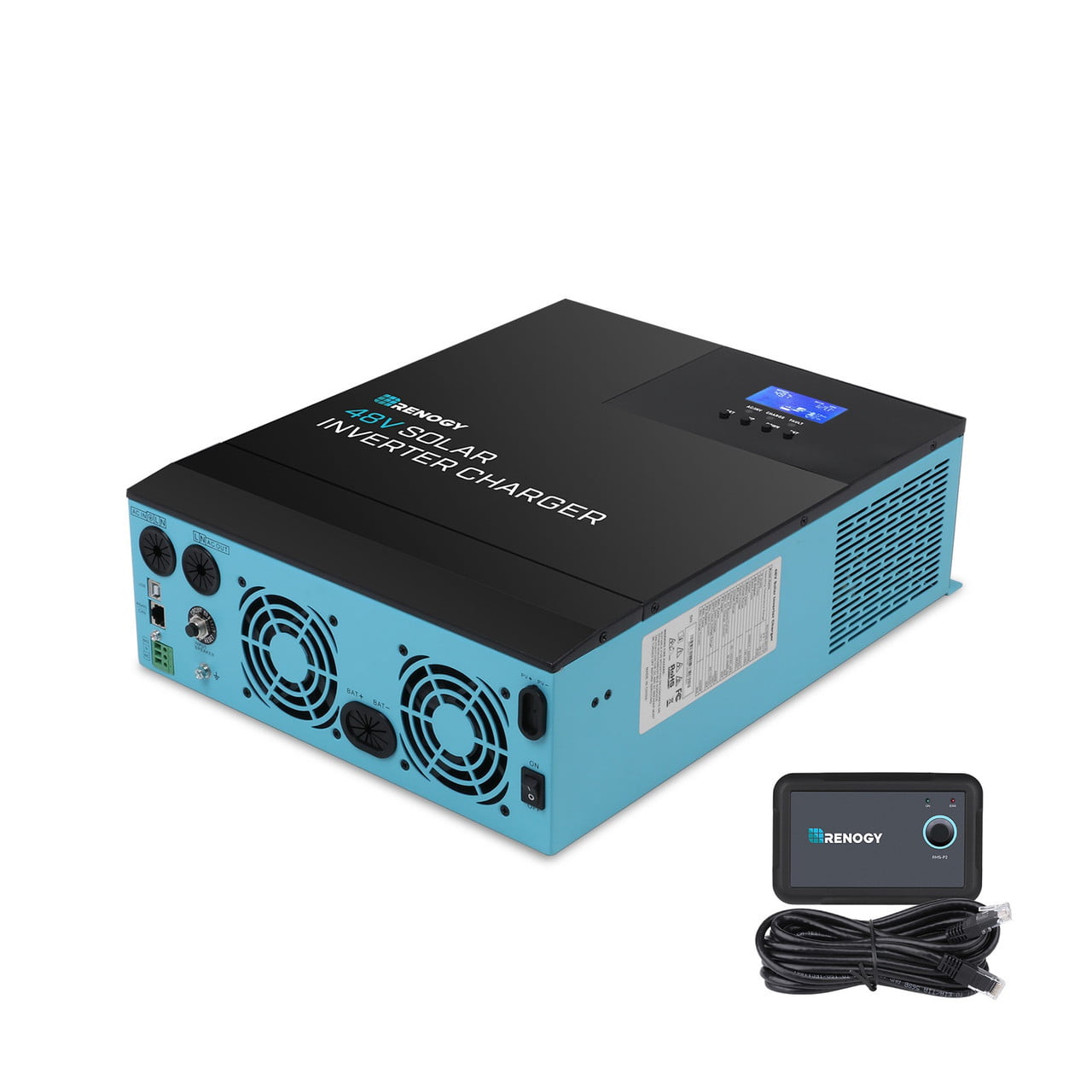

48V 3500W Solar Inverter Charger

Package IncludesNOTEPlease note that this package does not include cable You can buy the inverter cable separately Our recommended specifications for this inverter are ft AWGV W Solar Inverter Charger xInverter Remote Controlft X

Output Waveform:
Pure Sine Wave

Continuous Output Power:
3500W

Peak Power Rating:
7000W

Output Voltage:
120VAC±5%

Output Frequency:
50 Hz ± 0.3% 60 Hz± 0.3%

Input Voltage / Rated Battery Voltage:
48VDC (minimum start-up voltage 44V)

Nominal Efficiency:
> 90%

Bypass Breaker Current Load:
40A

Idle Consumption:
48W

Power Saver Mode Idle Consumption:
＜25W

Charge Controller Type:
MPPT

Maximum Input Power:
4400W

Maximum Input Current:
50A

PV Charging Current Range:
0-80A

Recommended Max. PV Open Circuit Voltage:
145VDC

PV Operating Voltage:
60-145VDC

MPPT Voltage Range:
60-115VDC

Short-circuit Protection:
Internal Fuse

Wiring Protection:
Reverse Polarity

Recommended Wiring:
8 AWG

Rated Input Voltage/Input Voltage Range:
120Vac/90 ~ 140VAC ± 2% Adjustable

Frenquency:
50 Hz / 60 Hz (auto detect)

Efficiency:
＞95%

Conversion Time:
10ms

Battery Type:
Lead Acid and Lithium Battery

Maximum Charging Current:
40A

Charging Voltage Range:
40-60VDC

Short-circuit Protection:
Breakers and fuses

Overcharge Protection:
Yes. Automatically alerts and turns off charging after 1 min)

Reverse Flow Protection:
Yes

Dimensions:
16.8*12.7*4.9 in / 426*322*124 mm

Weight:
23.8 lbs /10.8kg

Communication Port:
RS485/CAN Communication Port (BT-2 Bluetooth Module)

Cooling Fan:
Yes

Operating Temperature Range:
5°F ~ 131°F/ -15°C ~ 55°C

Storage Temperature:
-13°F ~ 140°F / -25°C ~ 60°C

Humidity:
5% to 95% (three-layer paint protection)

Noise:
≤60dB

IP Grade:
IP 20

Safety Class:
I

Model:
RMS-LP4-G2

Wireless Communication:
Wi-Fi (IEEE 802.11b/g/n 2.4 GHz); Bluetooth 2.1/4.2 and Bluetooth LE; Zigbee (IEEE 802.15.4)

Touch Screen:
4 inches (480 x 480p) White backlight with adjustable brightness

Casing Material:
PC+ABS V0

Operating Humidity:
0% to 95% RH

Power Supply:
Rated Power 3.5W 1.Power Port: 8V DC-16V DC 2.Type-C Port: 5V DC

Ports:
1.USB Type-C (5V DC) 2.RJ45 (CAN & RS485) 3. 2-pin 2.54 mm pluggable terminal block (12V DC)

Color:
Black

Weight:
286 g/0.83 lbs

Load:
≤30V DC, 5A Max

Power Consumption:
< 2.5W (standby)

Installation::
Flush mounting

Operating Temperature:
-20℃ to 50℃ (-4℉ to 122℉)

Operating Altitude:
Less than 2000 m above sea level

Connection:
Zigbee (IEEE 802.15.4)

Protocols:
RV-C/Modbus/Zigbee 3.0

Dimension:
181.8 x 86.8 x 42.2 mm (7.16 x 3.42 x 1.66 in)

Applicable Place:
Indoor

CE, FCC:
Yes

opc:


2-year Prorated Warranty:
Yes

opc:
