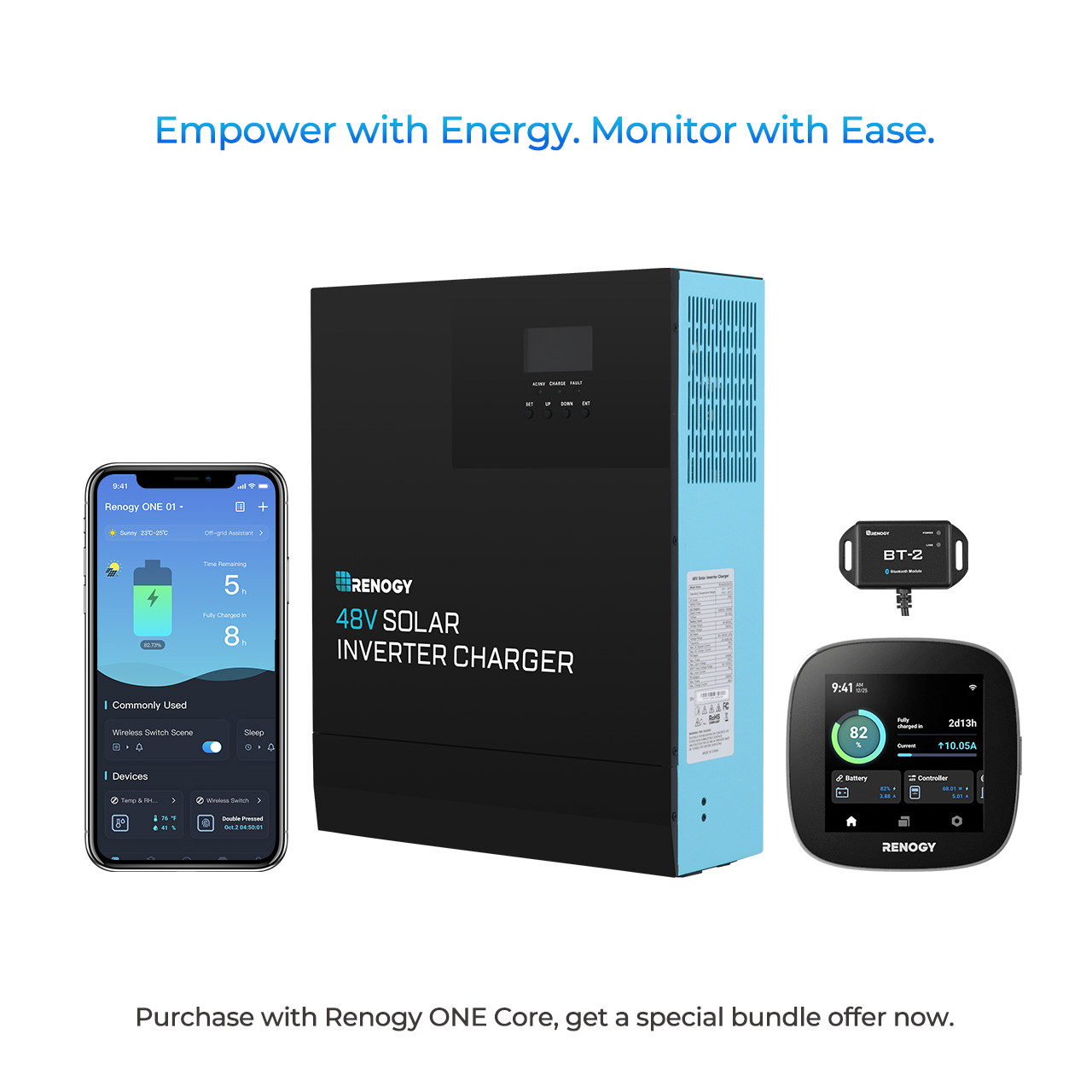

48V 3500W Solar Inverter Charger w/ Renogy ONE Core

$659.99

Out of stock

【STABLE AND PURE SINE WAVE CHARGING】 Combines 3500W pure sine wave charging with 80A MPPT solar, AC/generator battery charging, and inverting in one solution, offering stable power and acting as a UPS.
【HYBRID SYSTEM 】Low idle consumption (48W) and maximum 25W in Power Saving Mode to conserve energy.
【POWER SAVING】 10ms switch to alternative power in case of AC or solar charging failure, preventing shutdown.
【UNINTERRUPTIBLE POWER SUPPLY】 In the event of AC Charging or the solar charging failure, the Inverter Charger takes over the supply to the alternative option within 10ms, which will not let your electronics shut down.
【ALL TYPE OF BATTERY】 Supports various battery types (AGM/Sealed, Gel, Flooded, Lithium) with a customizable User Mode.
【RELIABLE QUALITY】 Full software and hardware protection against faults, FCC Part 15 compliant, and ROHS certified.


SKU: RY-RIV4835CSH1S-BT-W02W-G1-US Category:

$659.99

Description

Package IncludesNOTEPlease note that this package does not include cable You can buy the inverter cable separately Our recommended specifications for this inverter are ft AWGV W Solar Inverter Charger xInverter Remote Controlft X


RENOGY 48V 3500W SOLAR INVERTER CHARGER WITH 80A/145V MPPT

Inverter Mode Specifications

Output Waveform:
Pure Sine Wave

Continuous Output Power:
3500W

Peak Power Rating:
7000W

Output Voltage:
120VAC±5%

Output Frequency:
50 Hz ± 0.3% 60 Hz± 0.3%

Input Voltage / Rated Battery Voltage:
48VDC (minimum start-up voltage 44V)

Nominal Efficiency:
> 90%

Bypass Breaker Current Load:
40A

Idle Consumption:
48W

Power Saver Mode Idle Consumption:
<25W

Solar Charging Mode Specifications

Charge Controller Type:
MPPT

Maximum Input Power:
4800W

Maximum Input Current:
50A

PV Charging Current Range:
0-80A

Recommended Max. PV Open Circuit Voltage:
145VDC

PV Operating Voltage:
60-145VDC

MPPT Voltage Range:
60-115VDC

Short-circuit Protection:
Internal Fuse

Wiring Protection:
Reverse Polarity

Recommended Wiring:
4 AWG

AC / Grid Charging Mode Specifications

Rated Input Voltage/Input Voltage Range:
120Vac/90 ~ 140VAC ± 2% Adjustable

Frenquency:
50 Hz / 60 Hz (auto detect)

Efficiency:
>95%

Conversion Time:
10ms

Battery Type:
Lead Acid and Lithium Battery

Maximum Charging Current:
40A

Charging Voltage Range:
40-60VDC

Short-circuit Protection:
Breakers and fuses

Overcharge Protection:
Yes. Automatically alerts and turns off charging after 1 min)

Reverse Flow Protection:
Yes

Mechanical Specifications

Dimensions:
16.8*12.7*4.9 in / 426*322*124 mm

Weight:
23.8 lbs /10.8kg

Communication Port:
RS485/CAN Communication Port (BT-2 Bluetooth Module)

Cooling Fan:
Yes

Operating Temperature Range:
5°F ~ 131°F/ -15°C ~ 55°C

Storage Temperature:
-13°F ~ 140°F / -25°C ~ 60°C

Humidity:
5% to 95% (three-layer paint protection)

Noise:
≤60dB

IP Grade:
IP 20

Safety Class:
I


RENOGY ONE M1

Model:
RMS-LP4-G2

Wireless Communication:
Wi-Fi (IEEE 802.11b/g/n 2.4 GHz); Bluetooth 2.1/4.2 and Bluetooth LE; Zigbee (IEEE 802.15.4)

Touch Screen:
4 inches (480 x 480p) White backlight with adjustable brightness

Casing Material:
PC+ABS V0

Operating Humidity:
0% to 95% RH

Power Supply:
Rated Power 3.5W 1.Power Port: 8V DC-16V DC 2.Type-C Port: 5V DC

Ports:
1.USB Type-C (5V DC) 2.RJ45 (CAN & RS485) 3. 2-pin 2.54 mm pluggable terminal block (12V DC)

Color:
Black

Weight:
286 g/0.83 lbs

Load:
≤30V DC, 5A Max

Power Consumption:
< 2.5W (standby)

Installation::
Flush mounting

Operating Temperature:
-20℃ to 50℃ (-4℉ to 122℉)

Operating Altitude:
Less than 2000 m above sea level

Connection:
Zigbee (IEEE 802.15.4)

Protocols:
RV-C/Modbus/Zigbee 3.0

Dimension:
181.8 x 86.8 x 42.2 mm (7.16 x 3.42 x 1.66 in)

Applicable Place:
Indoor

CERTIFICATIONS

CE, FCC:
Yes

opc:


WARRANTY

2-year Prorated Warranty:
Yes

opc:
