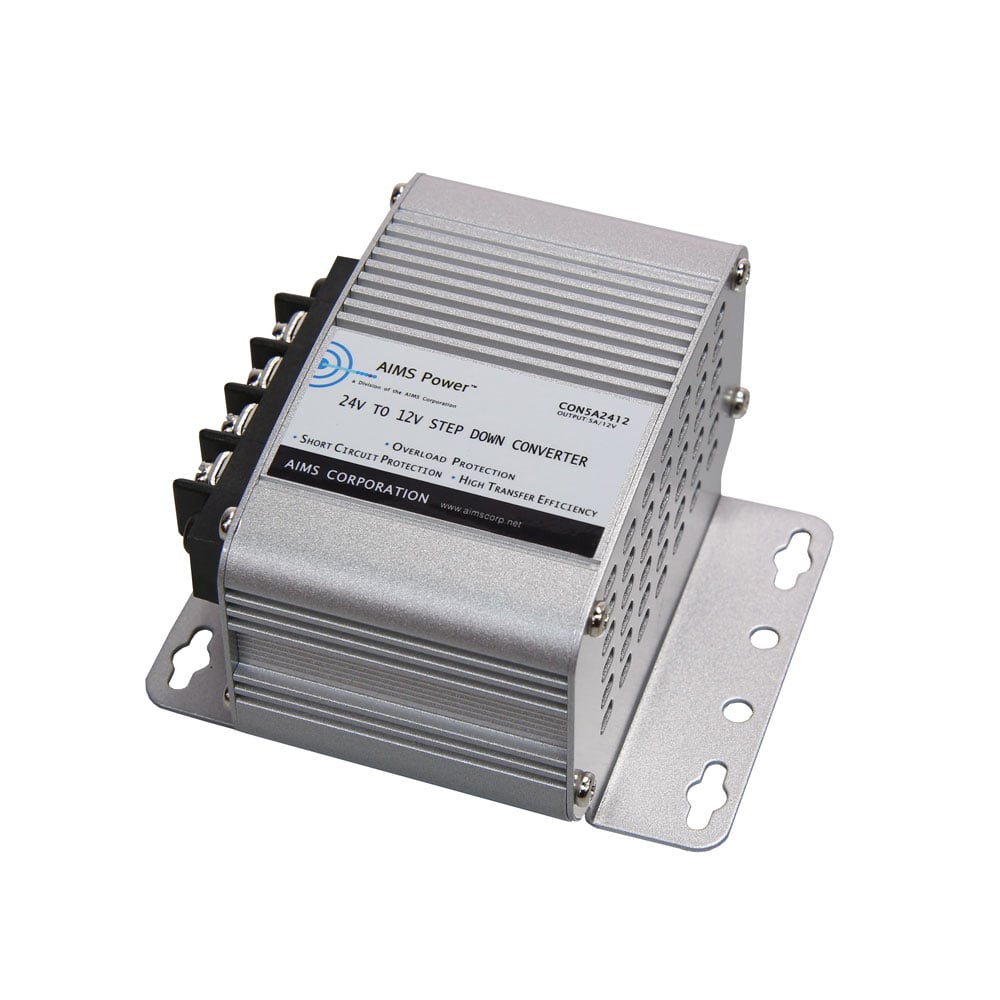

5 Amp 24V to 12V DC-DC Converter

$45.00

Out of stock

Also known as a buck converter, a step-down converter efficiently changes one level of voltage into another. This compact step-down DC-DC converter has an input voltage of 24 VDC nominal (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC nominal at five amps.

SKU: AP-CON5A2412 Category:

$45.00

Description

  • 5 Amp 24 volt to 12 volt dc to dc converter
  • Green LED on front panel to confirm power on
  • Terminal block for DC input/output
  • Over Temperature protection
  • Over Load protection
  • DC Input Low Battery Shutdown
  • DC Input High Battery Shutdown
  • DC Output Short Protection
  • DC Output Over Current Protection
  • DC Output Over Voltage Protection
  • Transformer based
  • Aluminum case for optimal cooling
  • Instruction manual
  • Free 1 year tech support
  • 1 Year Warranty Parts and Labor
  • CE EN61000-6-3:2007+A1:2011
  • CE EN61000-6-1:2007
  • DC Input Voltage: 20-37 Vdc
  • DC Output Voltage: 12.5-13.5 Vdc
  • Output Current: 5 amps
  • Output Current Max: 6 amps
  • Non-Isolated
  • Conversion Effiency: >92%
  • DC Input Low Battery Shutdown: 18 +/- 1 V
  • DC Input High Battery Shutdown: >38Vdc
  • DC Input Over Current Protection: 3A Fuse
  • DC Input Polarity Protection: Fuse Protected
  • Over Temperature Protection: 150 +/- 5 degrees F
  • DC Output Short Protection: Yes
  • DC Output Over Current Protection: 6 amps
  • DC Output Over Voltage Protection: TVS Diode

    • Dimensions:

    • Unit Weight: 0.57 lbs.
    • Unit Size L x W x H: 3.62 x 3.39 x 2.2 inches
    • Shipping Weight: 1 lbs.
