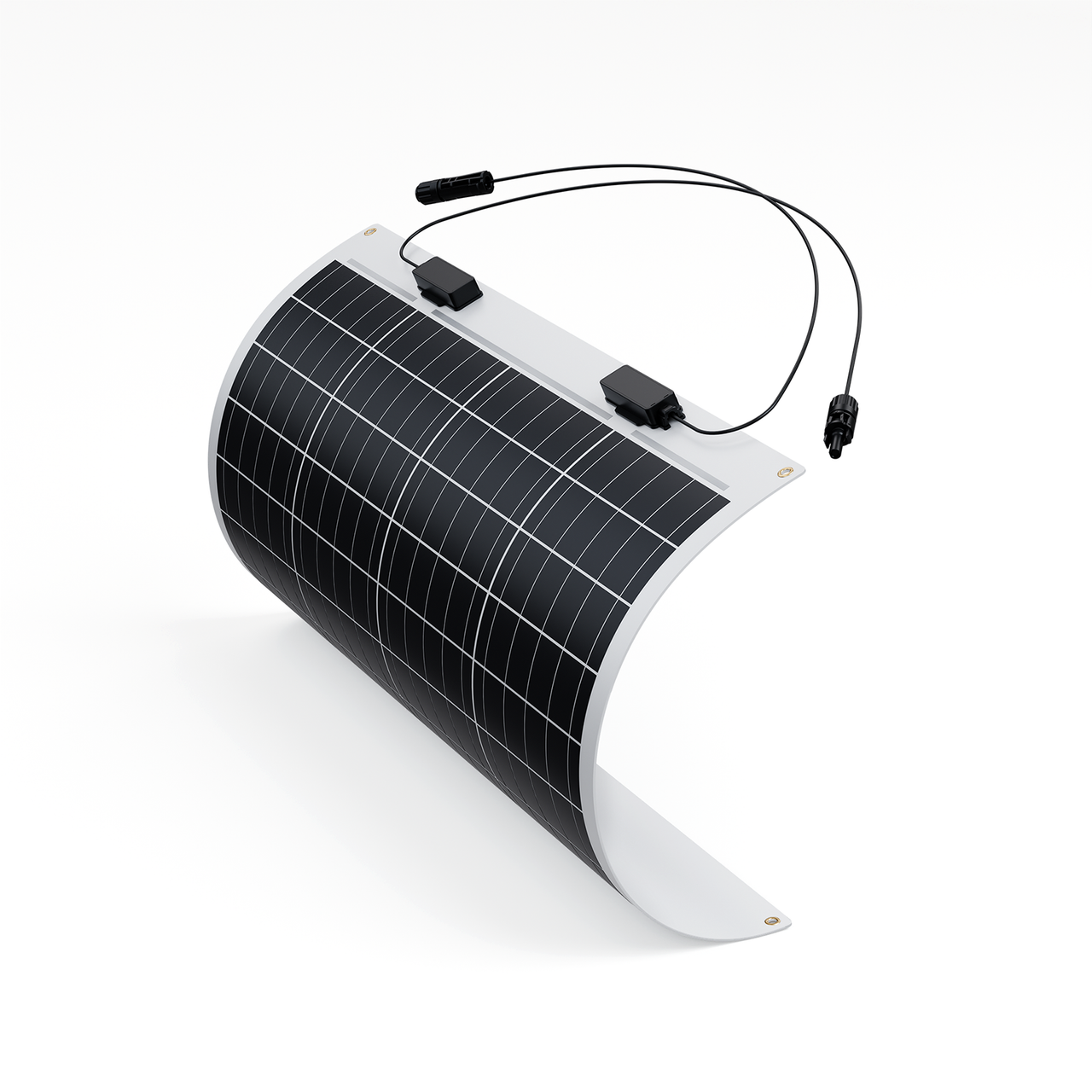

50 Watt 12 Volt Flexible Monocrystalline Solar Panel

Package Includes Renogy W Flexible Solar Panel x

Maximum Power at STC:
50W

Open Circuit Voltage:
24.3V

Short Circuit Current:
2.75A

Optimum Operating Voltage:
20.3V

Optimum Operating Current:
2.47A

Module Efficiency:
14.4%

Maximum System Voltage:
600 VDC UL

Maximum Series Fuse Rating:
15A

Cell Type:
Monocrystalline (6.25 x 1.85 in)

Number of Cells:
36 (4 x 9)

Dimensions:
26.9 x 20.0x 0.16 in (683 x 508 x 4 mm)

Weight:
2.87 lbs (1.3 kg)

Front Glass:
Tempered Glass 0.13 in (3.2 mm)

Frame:
Black Anodized Aluminum Alloy

Connectors:
Solar Connectors

Fire Rating:
Class C

Operating Temperature:
-40°F to 185°F(-40ºC to +85ºC)

Nominal Operating Cell Temerature (NOCT):
45±2ºC

Temperature Coefficient of Pmax:
-0.37%/C

Temperature Coefficient of Voc:
-0.28%/C

Temperature Coefficient of Isc:
0.048%/C

opc:


Rated Current:
30A

Maximum Voltage:
1000VDC

Maximum AWG Size Range:
10AWG

Temperature Range:
-40ºF to 194ºF

IP Rating:
IP 67

Material and workmanship warranty:
5 years

Performance:
5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
