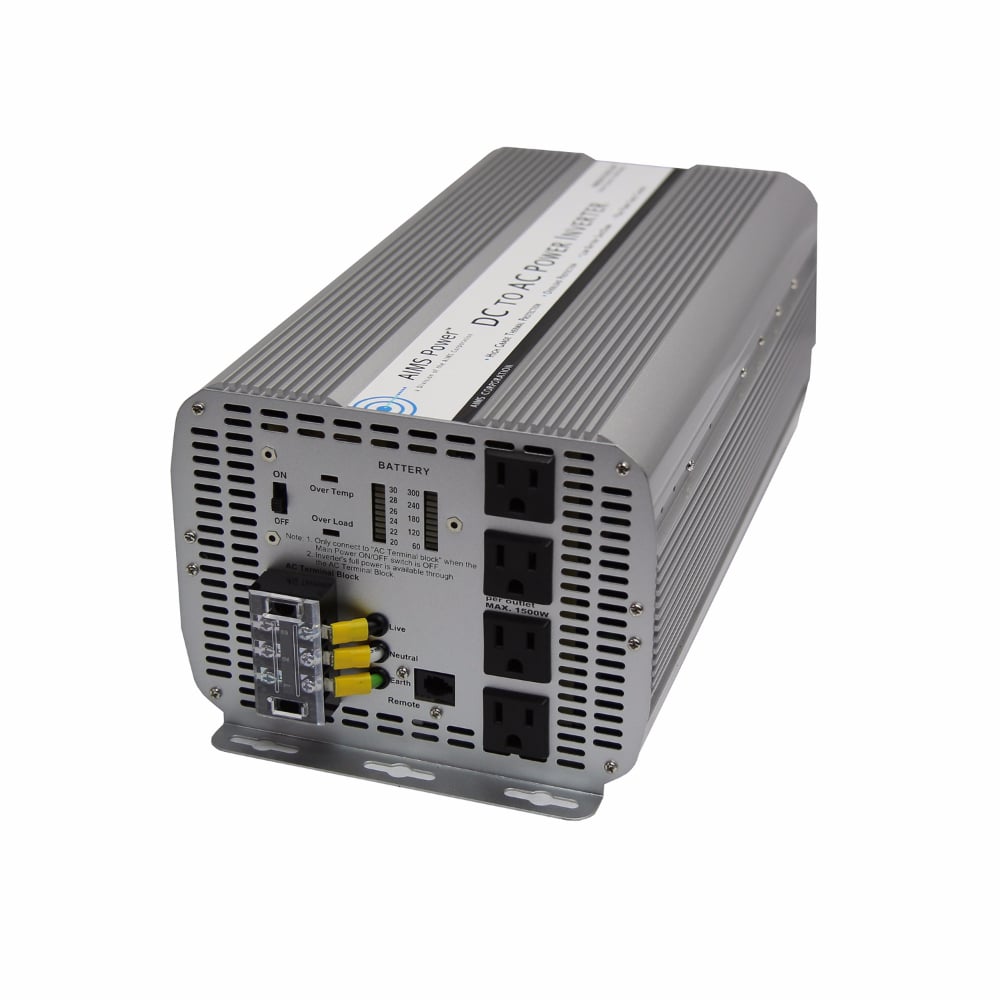

Description
5000W max continuous power
Modified sine wave
Volt meter on front panel to monitor your battery voltage
Amp meter on front panel to monitor your current use (rate at which battery is drained)
AC Direct Connect Terminal!
Over Temperature LED indicator
Over Load LED indicator
Quadruple ac receptacle that can be used with any separate spliter to provide even more outlets
On/off switch
Over Temperature protection
Over Load protection
Single cooling fan operation thermally controlled
Internally fuse protected
ac output short circuit protection
Auto reset on most fault conditions
Aluminum case for optimal cooling
Pre-wired for remote on/off switch
Pre-slotted mounting plate
Instruction manual
Free 1 year tech support
1 Year Warranty Parts and Labor
Continuous output power: 5000 Watts
Surge power capability (peak power): 10000 Watts
dc input / operating voltage: 10 to 15 Volts
Output voltage: 120 Volts ac +/- 10%
Output wave form: modified sine wave with phase correction
Output frequency: 60 Hz +/- 1 Hz
Battery low voltage alarm: 10.5 +/- 0.5 Volts
Battery low voltage shutdown: 10.0 +/- 0.5 Volts
No load current: < 0.6 Amps
Full load efficiency: 90%
1/3 load efficiency: 95%
No load minimum operating temperature: -15 degrees Celsius
Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
AC Output Socket Type: quadruple Type 2 -3 prong
High input voltage protection: 15V-17V
Low input voltage shutdown: 10V
Internal fuse protection
Product size (L x W x H): 16.92”X 7.95”X 6.1”
Weight: unit 18 lbs boxed 20 lbs
UL maximum recommended per outlet 1500W
