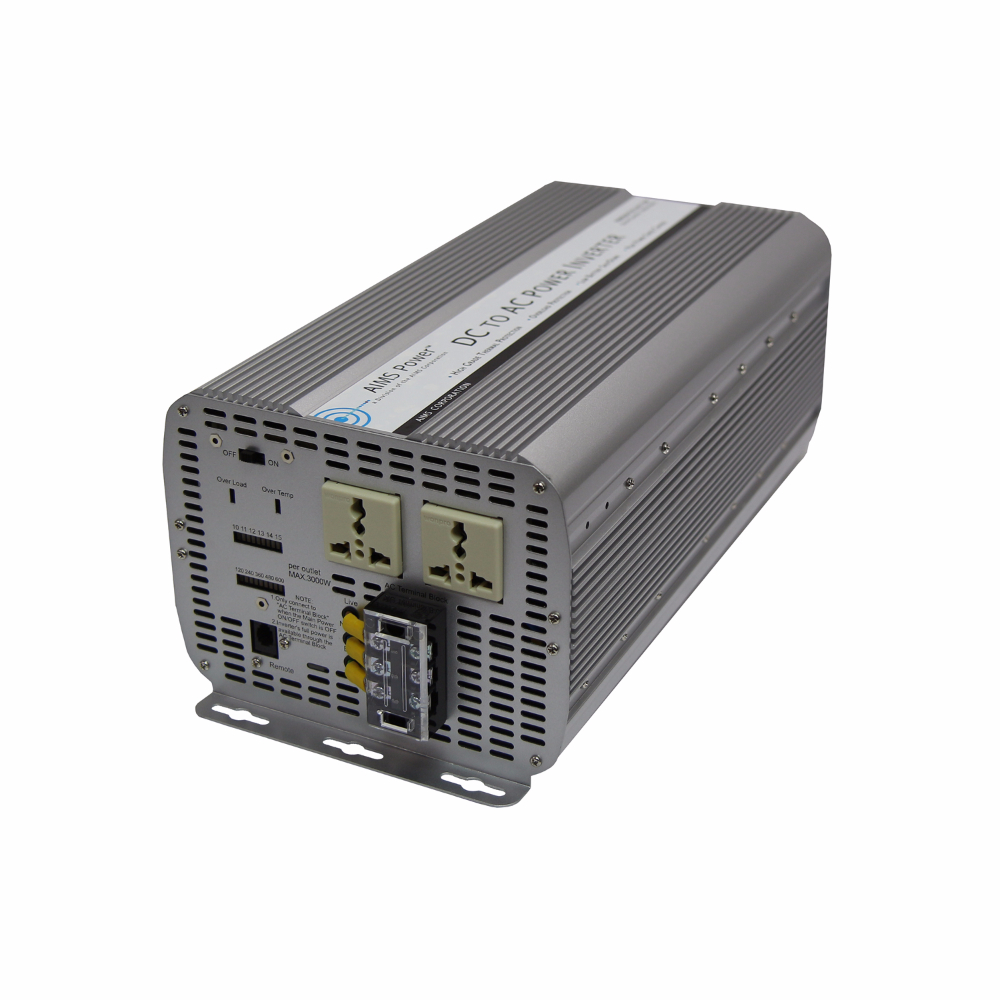

Description
5000W max continuous power
Modified sine wave
240 Volt single phase AC output only. This inverter will not deliver 120 volt AC.
Volt meter on front panel to monitor your battery voltage
Amp meter on front panel to monitor your current use (rate at which battery is drained)
AC Direct Connect Terminal
Over Temperature LED indicator
Over Load LED indicator
Dual 240V AC Receptacles
On/off switch
Over Temperature protection
Over Load protection
Single cooling fan operation thermally controlled
Internally fuse protected
AC output short circuit protection
Auto reset on most fault conditions
Aluminum case for optimal cooling
Pre-wired for remote on/off switch
Pre-slotted mounting plate
Instruction manual
Free 1 year tech support
1 Year Warranty Parts and Labor
Continuous output power: 5000 Watts
Surge power capability (peak power): 10,000 Watts
dc input / operating voltage: 10 to 15 Volts
Output voltage: 240 Volts ac
Output frequency: 60 Hz +/- .5 Hz
Battery low voltage alarm: 10.5 +/- 0.5 Volts
Battery low voltage shutdown: 10.0 +/- 0.5 Volts
No load minimum operating temperature: -15 degrees Celsius
Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
Low voltage and over voltage alarm and protection
AC Output Socket Type: dual 240
Low input voltage shutdown: 10V
Internal fuse protection
Product size (L x W x H): 16.92 X 7.95 X 6.1 inches
Weight: Unit – 16.72 lbs Boxed – 20 lbs
