Description

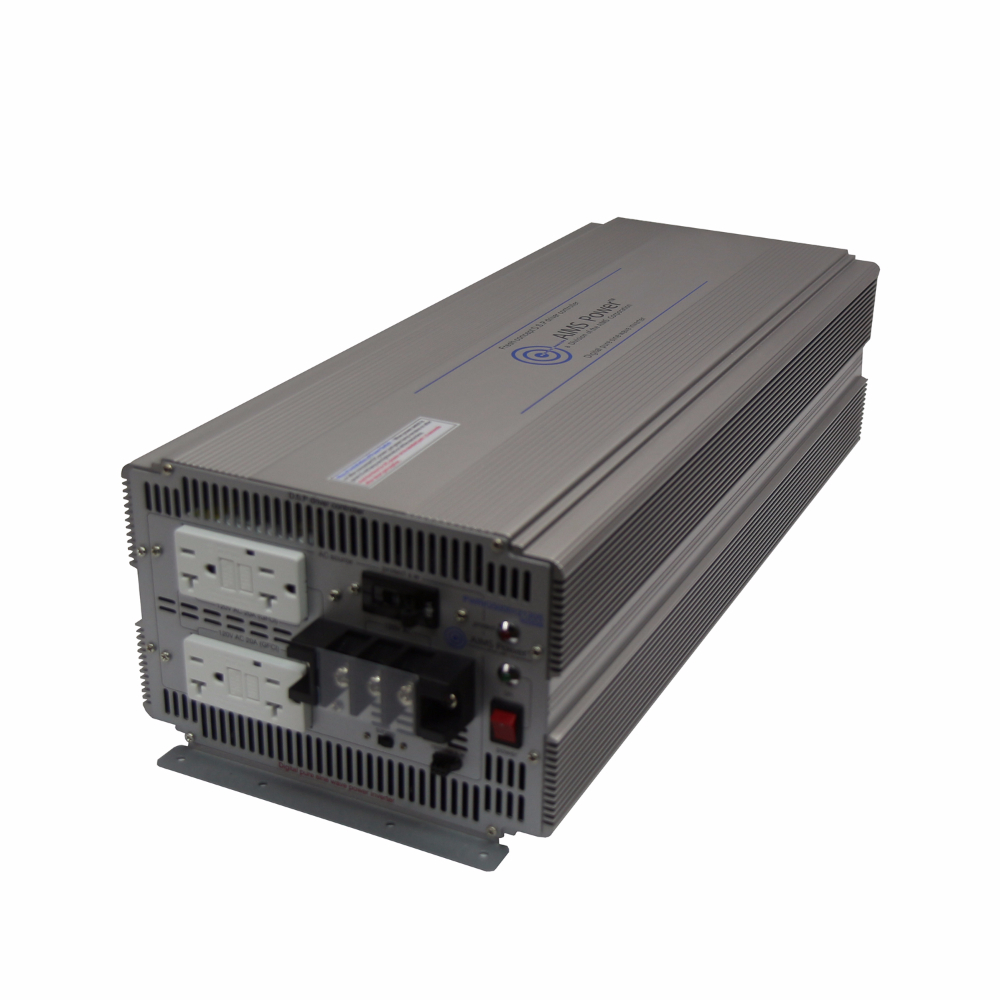

5000 Watt continuous power
10000 Watt surge for 0.5 second
24 Volt DC input
Pure sine wave
60hz or 50hz switch
Highly efficient – improved ouptut at low voltage
2 – GFCI Dual Outlet
Direct connect AC Terminal Block
Connector and cable for remote on/off switch
Isolated ground & neutral
Short circuit protection (GFCI and AC Breaker)
On/off switch
5 Function Protection LED indicator
AC Breaker
DC volt meter included
Dual cooling fans thermally controlled
Instruction manual
1 year tech support
1 Year Warranty Parts and Labor replacement
DC Input Voltage 26.4V (21V-30V)
Output Voltage no load 120Vac +/- 3%
Continuous 5000 Watts
Surge 10000 Watts
91% Efficiency @ full load
No Load Current (Fan Off) 1.3A 24V
No Load Current (Fan On) 2.2A 24V
Low Battery Shut Down: 20.0V
Low Battery Return on Power: 22.4V
High Battery Shut Down: 31.7V
High battery return on Power: 30.0V
Frequency Selection 50/60hz
Over Temperature Protection: -25ºC – 79ºC
Cooling Fan on Temperature: 40ºC
GFCI Outlets rated at 20A per block.
Dimensions (inches) 23.75 x 8.88 x 6.25
Weight: 27lbs
