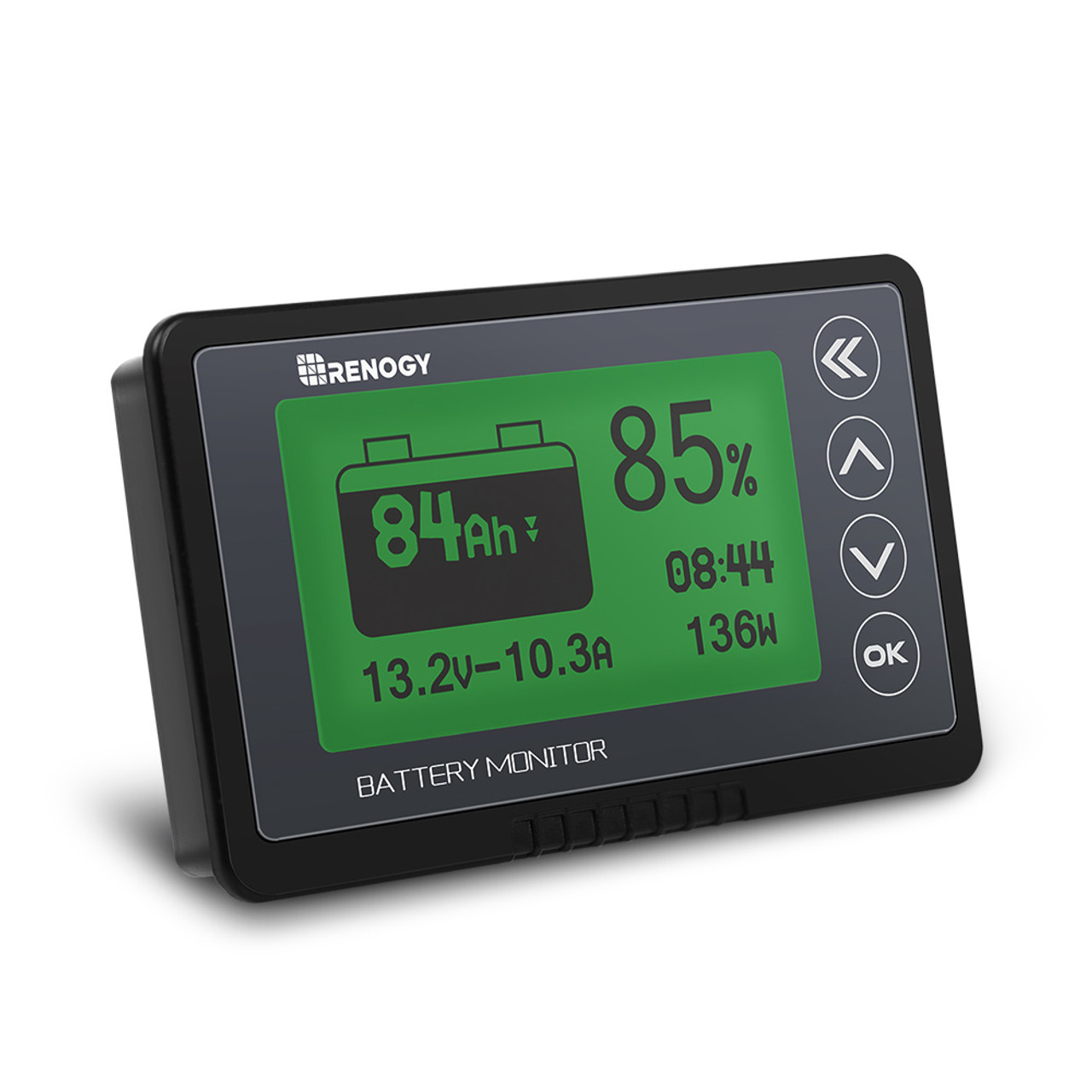

500A Battery Monitor With Shunt

Package IncludesLCD Interface xA ShuntSampler xShielded Wire xB Wire xShunt Holder x

Working Voltage:
10-120V

Standby Dissipation:
1-2mA

Working Dissipation:
10-15mA

Preset capacity value:
0.1-9999.0 AH

50A)”>Backlight on current (>50A):
50A)”>100mA

Compatible Battery:
Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid

Display:
LCD with Green Backlight (brightness is adjustable)

Capacity Accuracy:
±1%

Current Accuracy:
±1%

Voltage Accuracy:
±1%

Shielded Wire Length:
20 ft/6 m

Weight (LCD Interface):
2.6 oz / 75 g

Size (LCD Interface):
3.9 x 2.4 x 0.7 in / 99 x 61 x 18 mm

B+ Wire Length:
3 ft/1 m

Temperature range:
14-140°F(-10-60°C)

opc:


LCD Interface:
x 1

500A Shunt / Sampler:
x 1

Shielded Wire:
x 1

B+ Wire:
x 1

Shunt Holder:
x 1

opc:


ROHS:
Yes

opc:


Material Warranty:
1 Year

opc:
