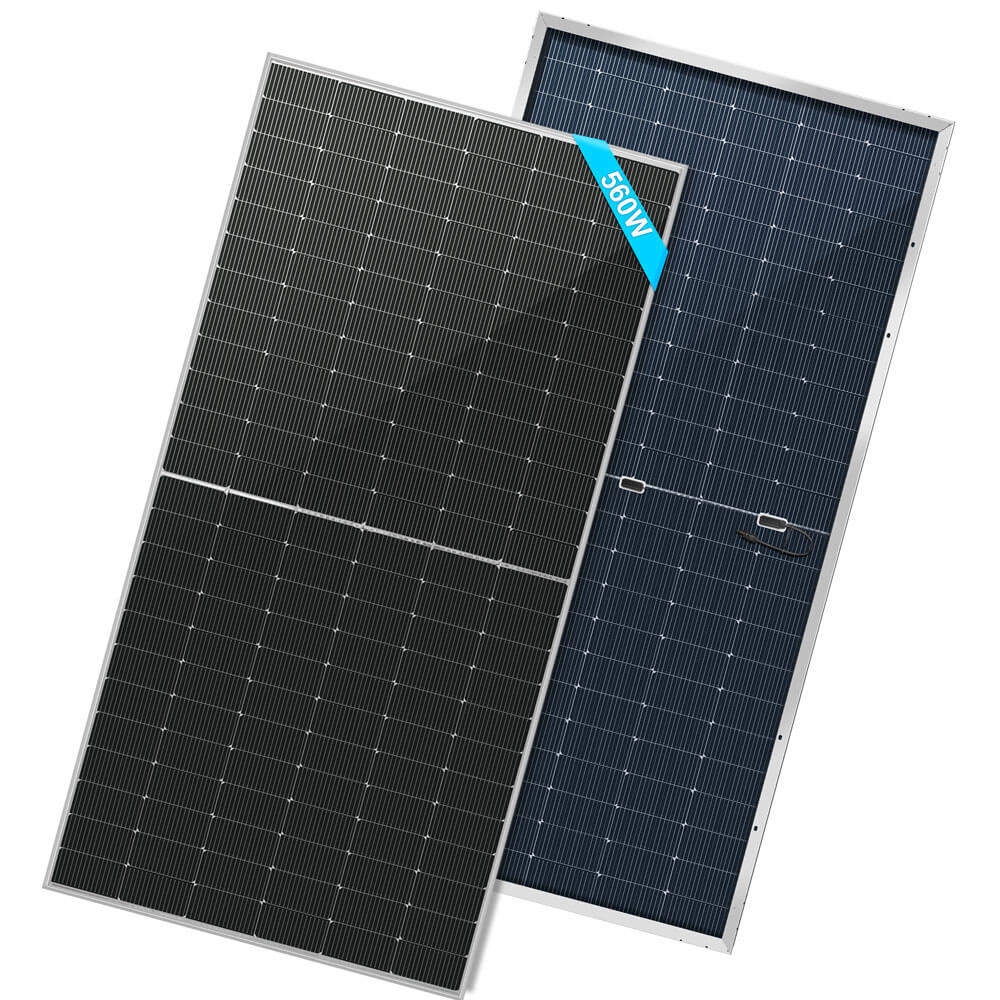

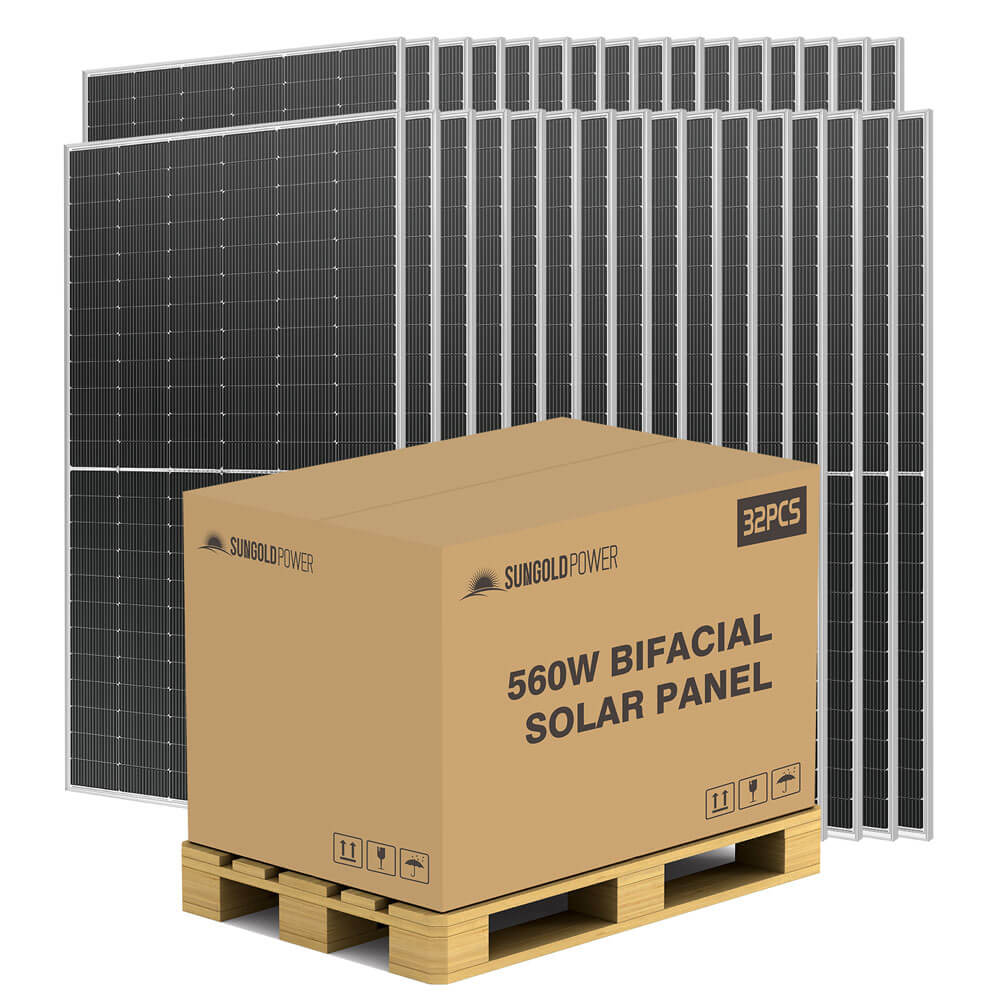

560 WATT Bifacial N-Type SOLAR PANEL FULL PALLET (32 PANELS)
$6,289.00
Highlight:Bifacial monocrystalline N-Type solar panel can generate more energy up to 30%Bifacial modules offer higher durability even rough climatic heat /cold/snow/windThe space requirement for installation is less because of high efficiencyIt can be set up at any angle. no need to analyse or calculate the right mounting and tilt angleThis N-Type solar panel has 30 years Linear power warranty,12-years Material and workmanship warranty.
Description

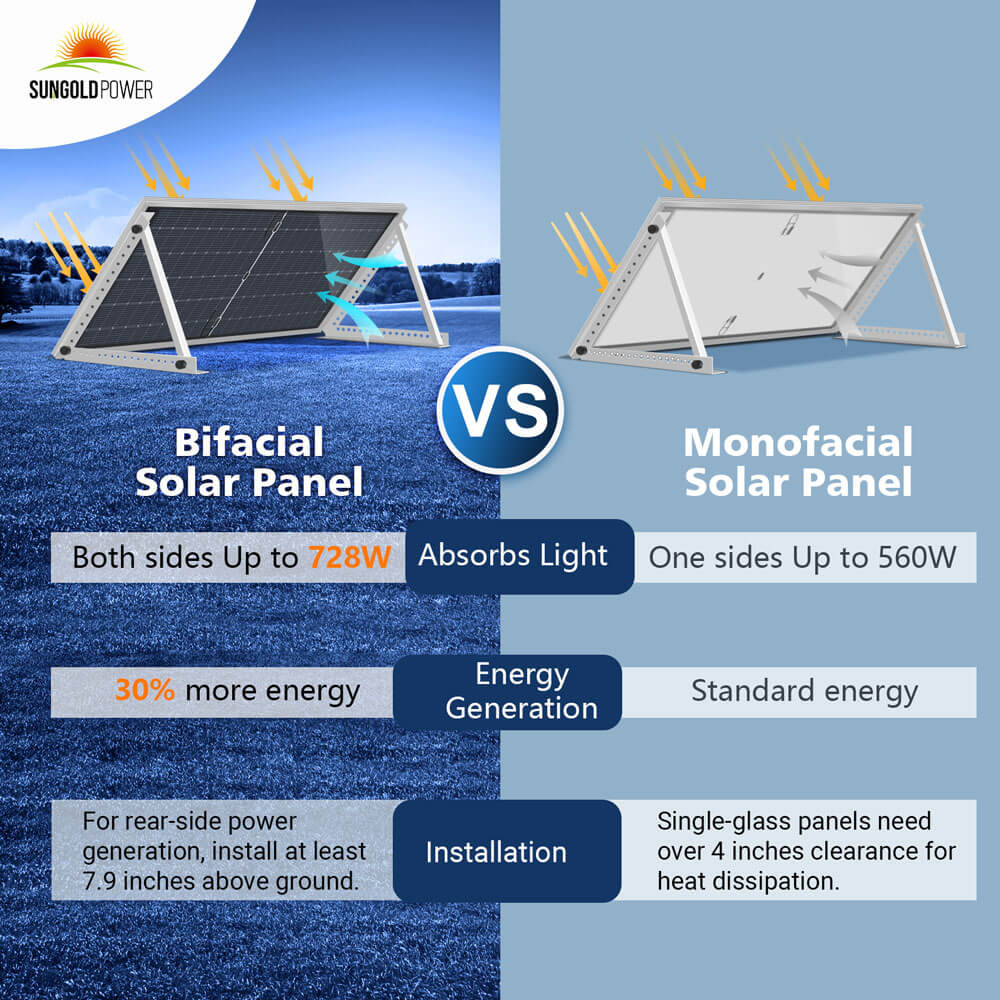

Sungoldpower Bifacial N－Type solar panels are solar panels that can capture sunlight on both their front and back, it can generate up to 30% more energy than conventional solar panels, Bifacial solar panels are ideal for installations where the backside of the solar array is exposed and can capture reflected light, including ground-mount systems, solar carports and canopies.
Improved PV Module Performance under Partial Shading Conditions
The panel features an innovative design of PERC, half-cut cells, bypass diodes and 11-busbar technology to maximize energy output even under partial shading.
| Model Type | SG-560WBG |
|---|---|
| Peak Power (Pmax) | 560W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.3A |
| Maximum Power Voltage (Vmp) | 42.1V |
| Short Circuit Current (Isc) | 14.09A |
| Open Circuit Voltage (Voc) | 50.09V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 144(6x 24),60 cells in series |
| Cell Type | N-Type |
| Certifications | CE TUV |
| Product Weight | 70.4lbs |
| Product Dimension | 89.8*44.7*1.4inch |
| Package Weight | 2440.0lbs（32PCS） |
| Package Dimension | 92.9*48.0*61.8inch（32PCS） |
| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| Material and workmanship warranty | 12 year material and workmanship warranty |
Highlights
Highlight:
- Bifacial monocrystalline N-Type solar panel can generate more energy up to 30%
- Bifacial modules offer higher durability even rough climatic heat /cold/snow/wind
- The space requirement for installation is less because of high efficiency
- It can be set up at…
Highlight:
- Bifacial monocrystalline N-Type solar panel can generate more energy up to 30%
- Bifacial modules offer higher durability even rough climatic heat /cold/snow/wind
- The space requirement for installation is less because of high efficiency
- It can be set up at any angle. no need to analyse or calculate the right mounting and tilt angle
- This N-Type solar panel has 30 years Linear power warranty,12-years Material and workmanship warranty.
Manual
Sungoldpower Bifacial N－Type solar panels are solar panels that can capture sunlight on both their front and back, it can generate up to 30% more energy than conventional solar panels, Bifacial solar panels are ideal for installations where the backside of the solar array is exposed and can capture reflected light, including ground-mount systems, solar carports and canopies.
Improved PV Module Performance under Partial Shading Conditions
The panel features an innovative design of PERC, half-cut cells, bypass diodes and 11-busbar technology to maximize energy output even under partial shading.
Specification
Additional information
| Weight | 70.400 lbs |
|---|
