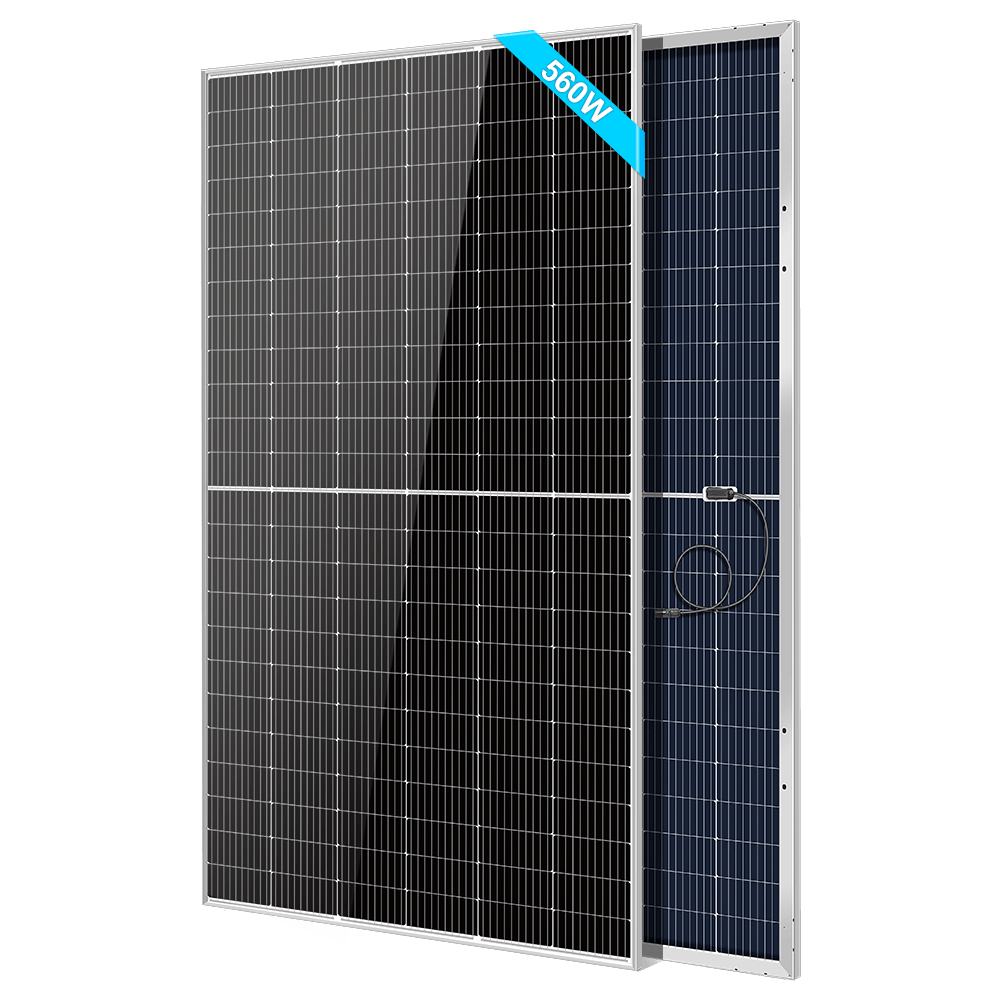

560W Bifacial PERC Solar Panel | SGP-560-SBD UL61730 Certified by ETL

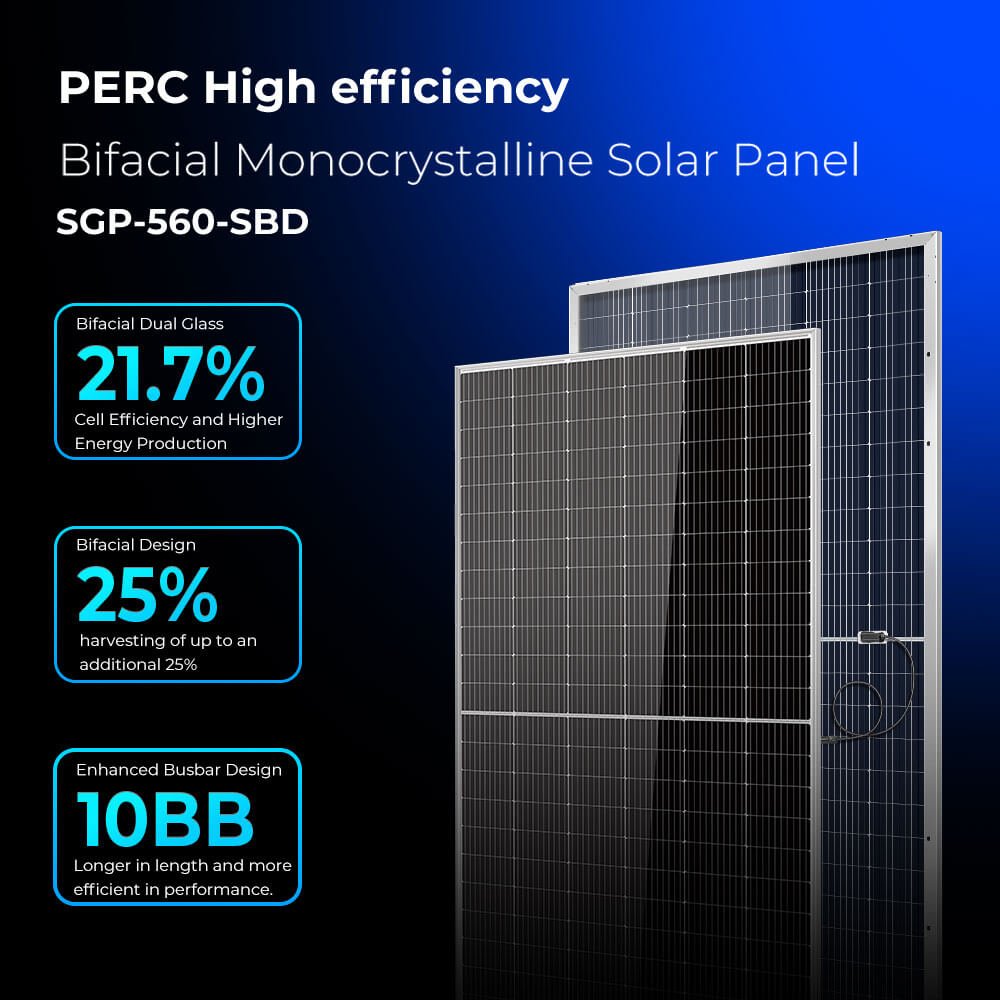

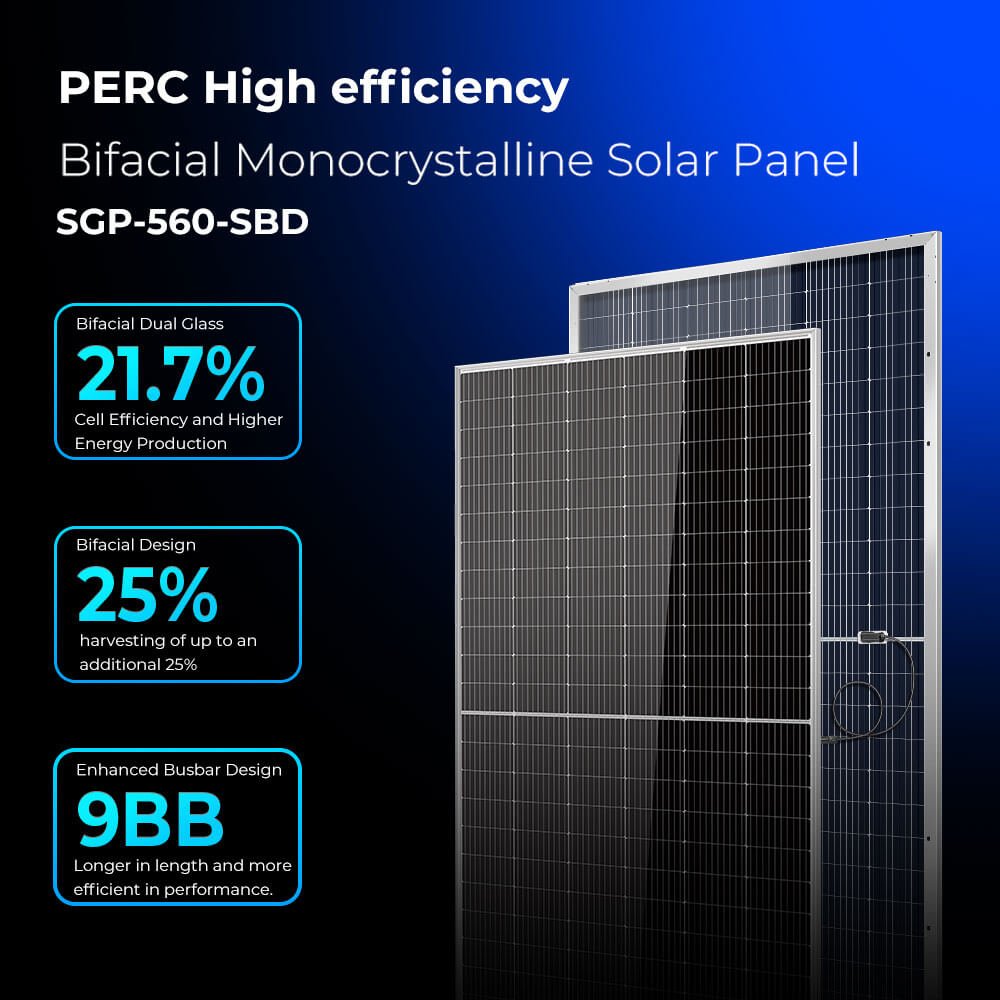

Highlight:Bifacial PERC solar panel can generate more energy up to 21.7%Bifacial technology allows for the harvesting of up to an additional 25% energy from the rear side of the module.Bifacial PERC solar panel modules offer higher durability even rough climatic heat /cold/snow/windThe space requirement for installation is less because of high efficiencyIt can be set up at any angle. No need to analyse or calculate the right mounting and tilt angle.This PERC solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty，12- years Material and workmanship warranty.UL61730 ,CEC Listed.
Description

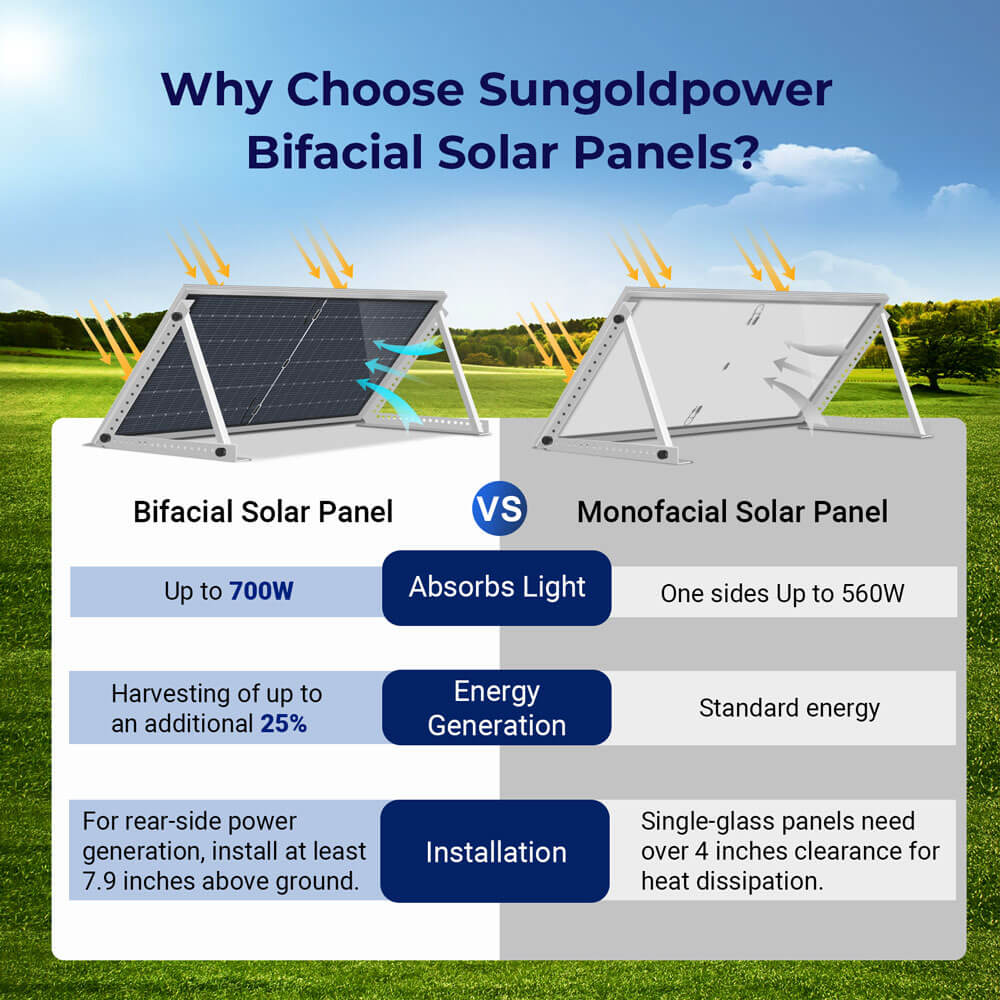

Sungoldpower High efficiency bifacial PERC module solar panels that can capture sunlight on both their front and back, it can generate up to 25% more energy than conventional solar panels, Bifacial solar panels are ideal for installations where the backside of the solar array is exposed and can capture reflected light, including ground-mount systems, solar carports and canopies.

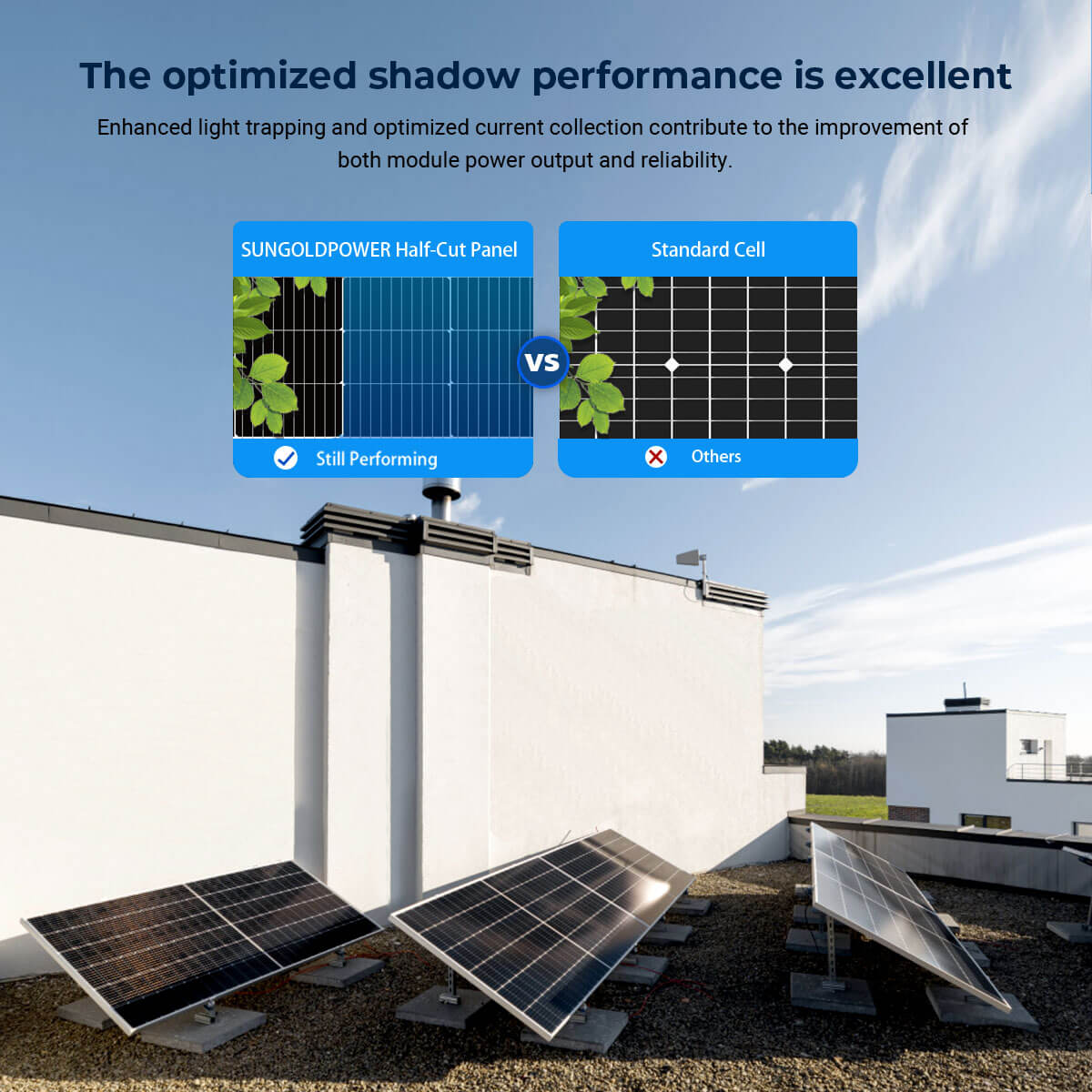

Improved PV Module Performance under PartialShading Conditions
Enhanced light trapping and optimized
current collection contribute to the
improvement
of both module power
output and reliability.

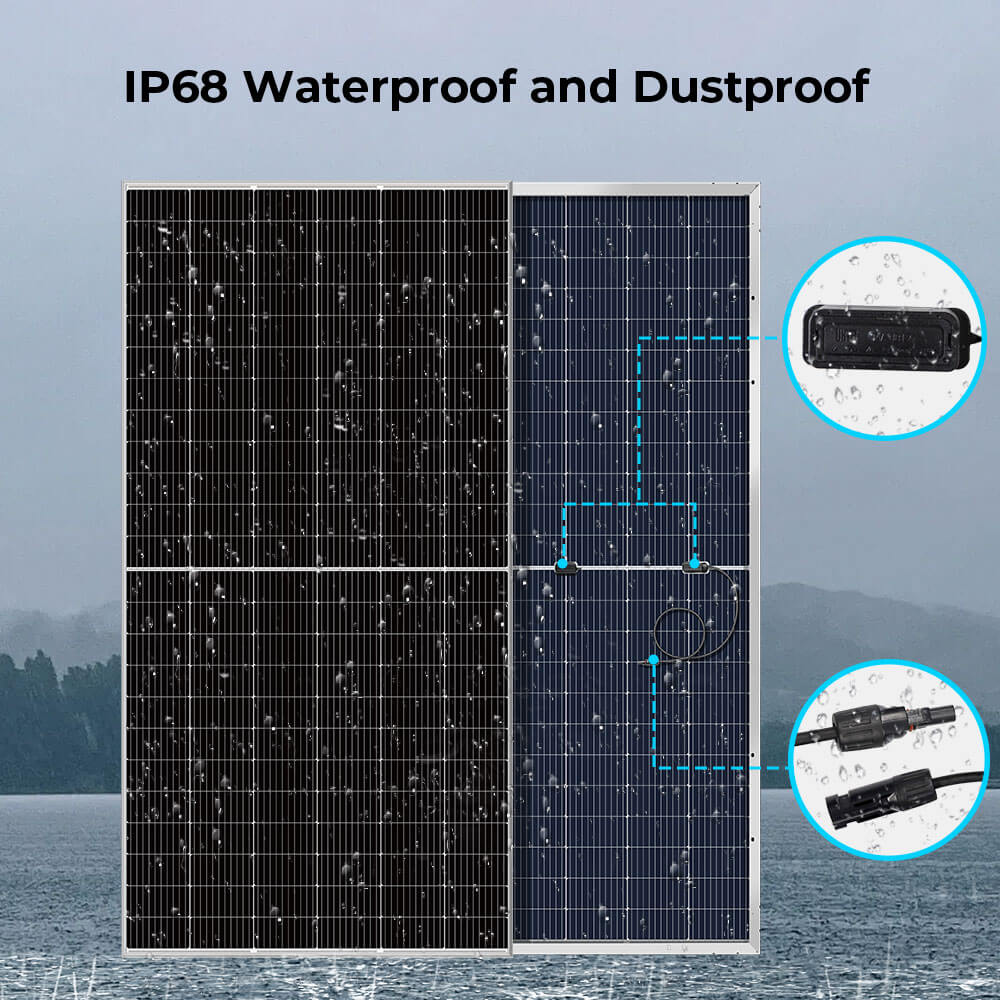

Durability for Any Weather
The quality is stable and reliable. The panel is specially designed for harsh environments,
capable of with standing heavy snow and strong wind erosion.
Ground Mount Installation
Compatible with most mainstream trackers, these panels enable optimal angle positioning in open spaces, allowing you to maximize solar energy production. Experience the peace of mind that comes with a self-sufficient, reliable energy source.
Residential Roof Installation
Take advantage of the high efficiency of bifacial panels by storing excess energy in batteries for future use or selling it back to the power grid. Installing a solar roof is a smart financial investment that increases your home’s value while providing sustainable energy.
Flexible Mounting Solutions
Easy to install, this solar panel fits various scenarios—flat roofs, ground brackets, vertical surfaces,
poles—with strong adaptability anywhere.
| Model Type | SGP-560-SBD |
|---|---|
| Peak Power (Pmax) | 560W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.68A |
| Maximum Power Voltage (Vmp) | 40.95V |
| Short Circuit Current (Isc) | 14.25A |
| Open Circuit Voltage (Voc) | 49.76V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 144 cells |
| Cell Type | PERC monocrystalline (M10) |
| Certifications | UL61730 Certified by ETL，ISO 9001: ISO 14001: ISO 45001 |
| Product Weight | 68.78 lbs |

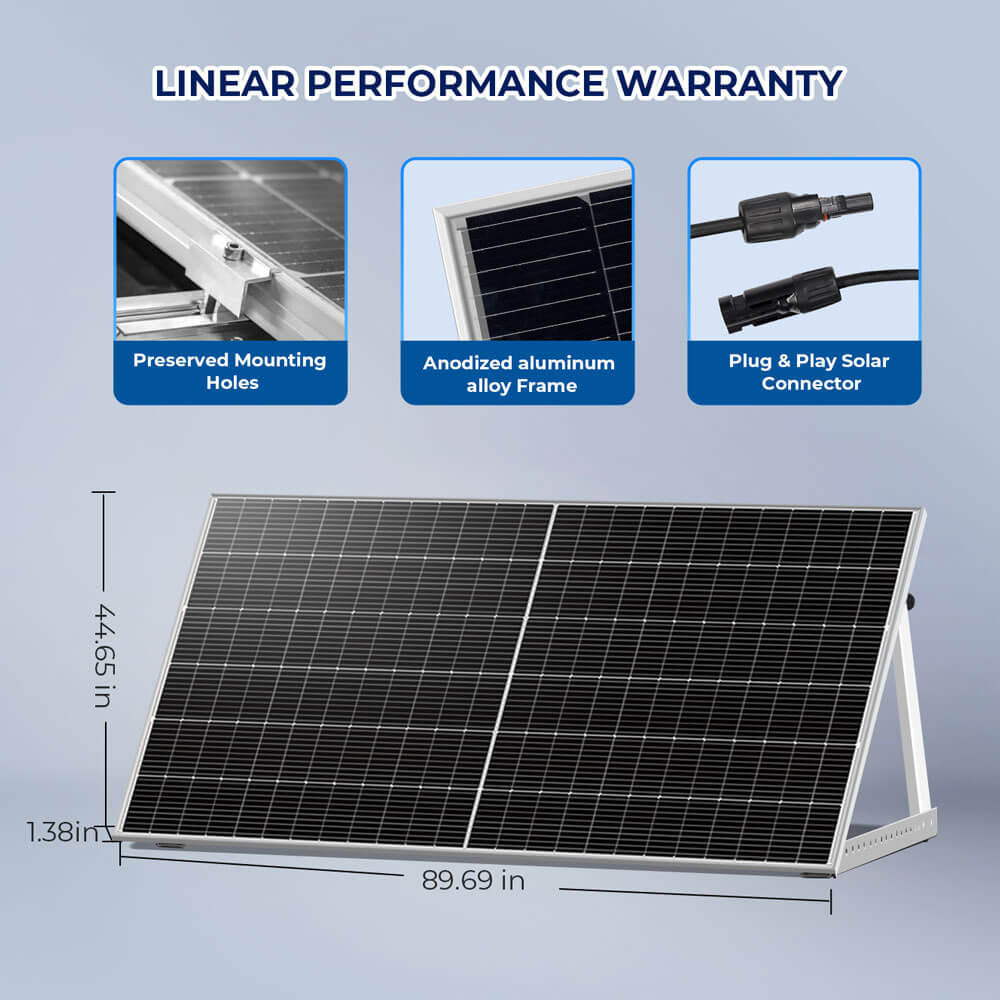

| Product Dimension | 89.69 x 44.65 x 1.38 inch |
| Package Weight | 148lbs（2PCS） |
| Package Dimension | 92.5*47.65*3.1inch（2PCS） |
| Performance warranty | 5 years 95% output warranty 10 yeasr 90% output warranty 25 years 80% output warranty |
| Material and workmanship warranty | 12 years |
Highlights
Highlight:
- Bifacial PERC solar panel can generate more energy up to 21.7%
- Bifacial technology allows for the harvesting of up to an additional 25% energy from the rear side of the module.
- Bifacial PERC solar panel modules offer higher…
Highlight:
- Bifacial PERC solar panel can generate more energy up to 21.7%
- Bifacial technology allows for the harvesting of up to an additional 25% energy from the rear side of the module.
- Bifacial PERC solar panel modules offer higher durability even rough climatic heat /cold/snow/wind
- The space requirement for installation is less because of high efficiency
- It can be set up at any angle. No need to analyse or calculate the right mounting and tilt angle.
- This PERC solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty，12- years Material and workmanship warranty.UL61730 ,CEC Listed.
Manual
Sungoldpower High efficiency bifacial PERC module solar panels that can capture sunlight on both their front and back, it can generate up to 25% more energy than conventional solar panels, Bifacial solar panels are ideal for installations where the backside of the solar array is exposed and can capture reflected light, including ground-mount systems, solar carports and canopies.
Improved PV Module Performance under PartialShading Conditions
Enhanced light trapping and optimized
current collection contribute to the
improvement
of both module power
output and reliability.
Durability for Any Weather
The quality is stable and reliable. The panel is specially designed for harsh environments,
capable of with standing heavy snow and strong wind erosion.
Ground Mount Installation
Compatible with most mainstream trackers, these panels enable optimal angle positioning in open spaces, allowing you to maximize solar energy production. Experience the peace of mind that comes with a self-sufficient, reliable energy source.
Residential Roof Installation
Take advantage of the high efficiency of bifacial panels by storing excess energy in batteries for future use or selling it back to the power grid. Installing a solar roof is a smart financial investment that increases your home’s value while providing sustainable energy.
Flexible Mounting Solutions
Easy to install, this solar panel fits various scenarios—flat roofs, ground brackets, vertical surfaces,
poles—with strong adaptability anywhere.
Certification
Sungoldpower High efficiency bifacial PERC module solar panels that can capture sunlight on both their front and back, it can generate up to 25% more energy than conventional solar panels, Bifacial solar panels are ideal for installations where the backside of the solar array is exposed and can capture reflected light, including ground-mount systems, solar carports and canopies.
Improved PV Module Performance under PartialShading Conditions
Enhanced light trapping and optimized
current collection contribute to the
improvement
of both module power
output and reliability.
Durability for Any Weather
The quality is stable and reliable. The panel is specially designed for harsh environments,
capable of with standing heavy snow and strong wind erosion.
Ground Mount Installation
Compatible with most mainstream trackers, these panels enable optimal angle positioning in open spaces, allowing you to maximize solar energy production. Experience the peace of mind that comes with a self-sufficient, reliable energy source.
Residential Roof Installation
Take advantage of the high efficiency of bifacial panels by storing excess energy in batteries for future use or selling it back to the power grid. Installing a solar roof is a smart financial investment that increases your home’s value while providing sustainable energy.
Flexible Mounting Solutions
Easy to install, this solar panel fits various scenarios—flat roofs, ground brackets, vertical surfaces,
poles—with strong adaptability anywhere.
Specification
Additional information
| Weight | 68.780 lbs |
|---|---|

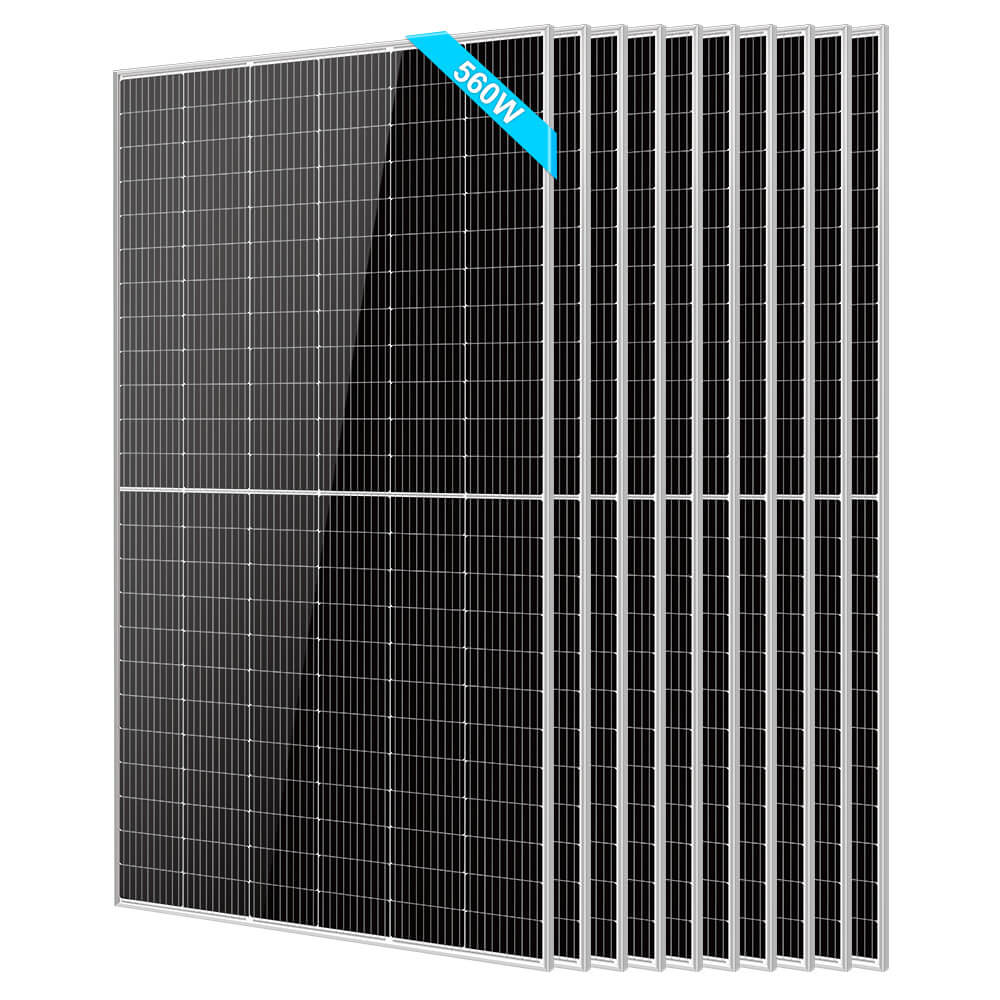

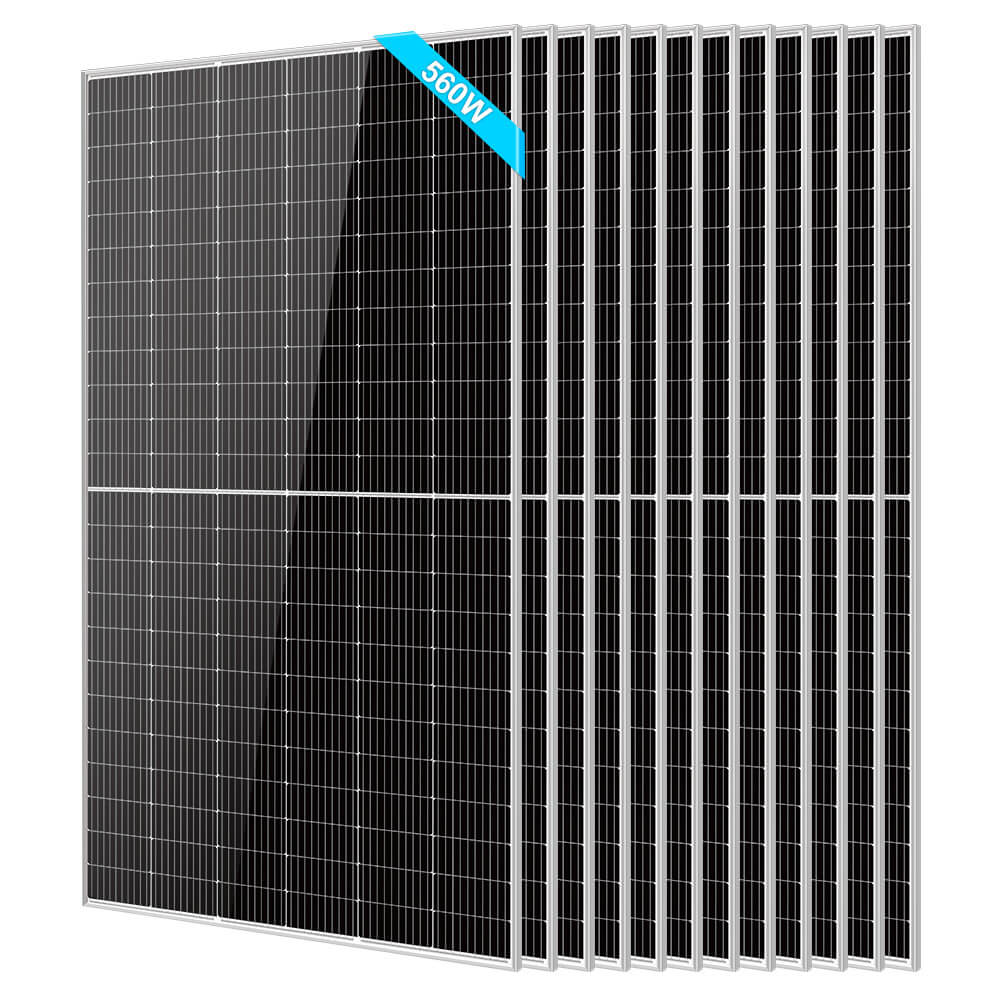

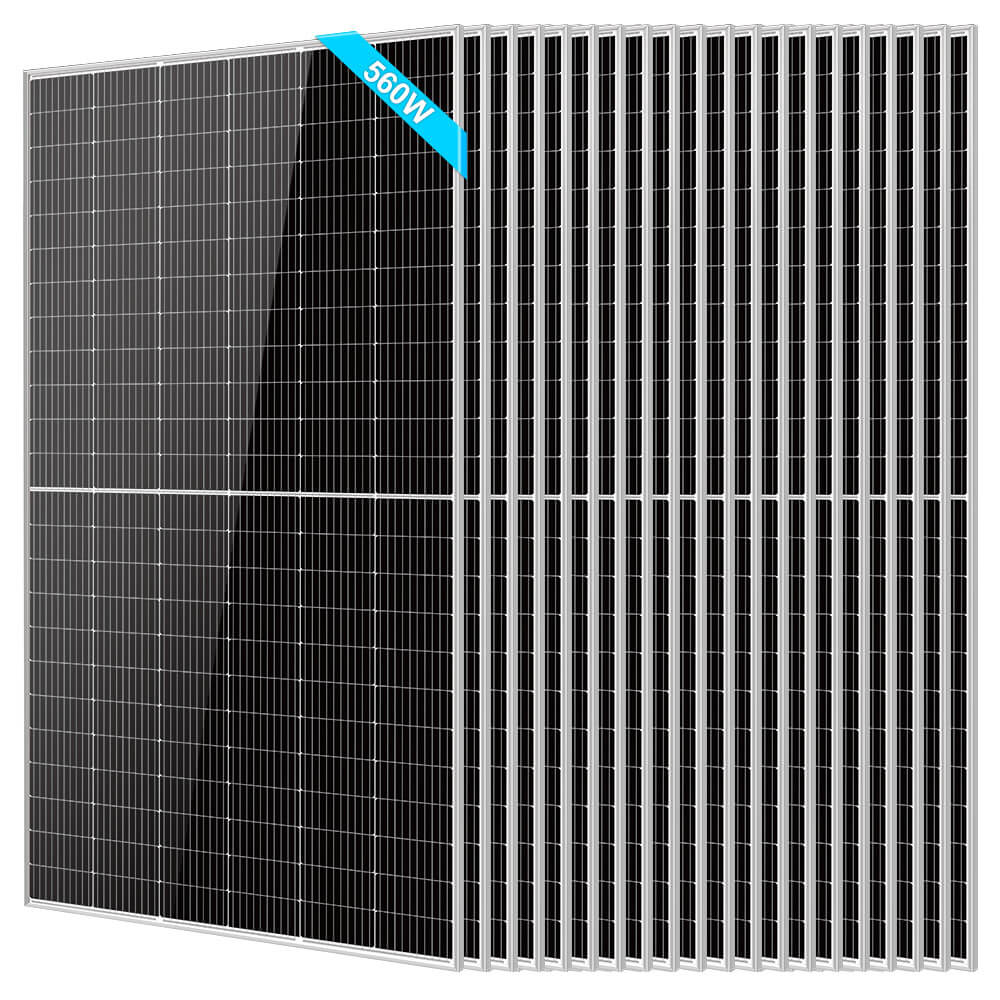

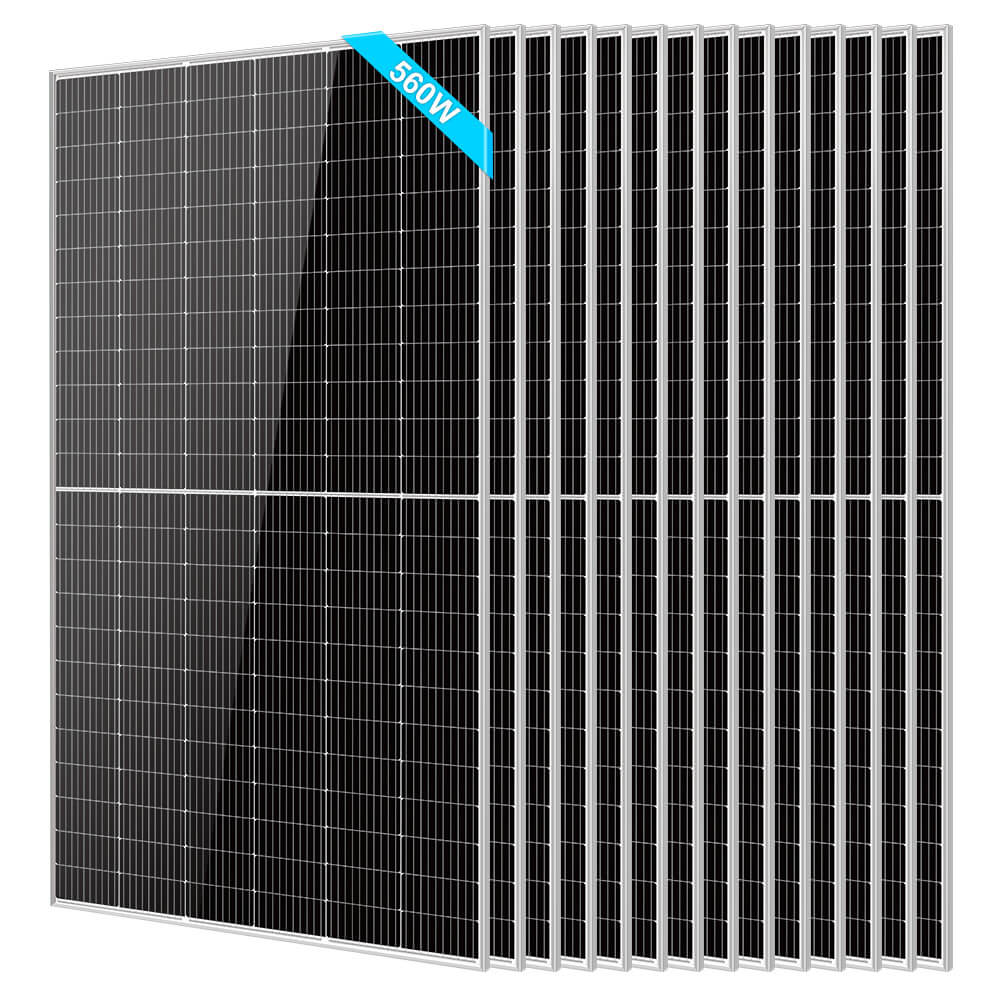

| Quantity | 2pcs, 4pcs, 6pcs, 8pcs, 10pcs, 12pcs, 14pcs, 16pcs, 18pcs, 20pcs, Need more? Pls contact us |
