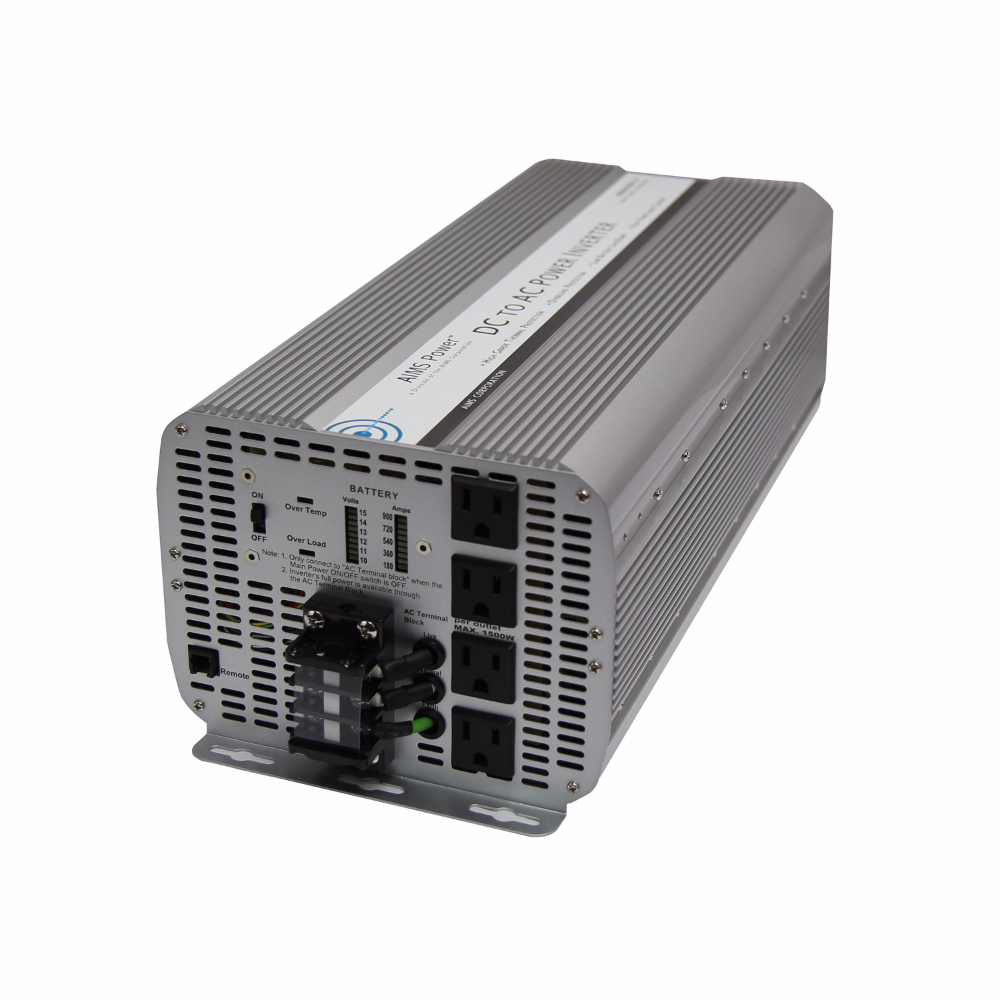

Description
8000W max continuous power
Modified sine wave
Volt meter on front panel to monitor your battery voltage
Amp meter on front panel to monitor your current use (rate at which battery is drained)
Over Temperature LED indicator
Over Load LED indicator
AC direct connect terminal block
On/off switch
Over Temperature protection
Over Load protection
Single cooling fan thermally controlled
Internally fuse protected
AC output short circuit protection
Auto reset on most fault conditions
Aluminum case for optimal cooling
Pre-wired for remote on/off switch
Pre-slotted mounting plate
Instruction manual
Free 1 year tech support
1 Year Warranty Parts and Labor
Continuous output power: 8000 Watts
Surge power capability (peak power): 16000 Watts
dc input / operating voltage: 10 to 15 Volts
Output voltage: 120 Volts ac +/- 10%
Output wave form: modified sine wave with phase correction
Output frequency: 60 Hz +/- 1 Hz
Battery low voltage alarm: 10.5 +/- 0.5 Volts
Battery low voltage shutdown: 10.0 +/- 0.5 Volts
No load current: < 1.3 DC amps
Full load efficiency: 90%
1/3 load efficiency: 95%
No load minimum operating temperature: 30ºF
Full load maximum operating temperature: 140ºF
AC Output Socket Type: quadruple Type 2 -3 prong
High input voltage protection: 15V-17V
Low input voltage shutdown: 10V Internal fuse protection
Product size (L x W x H): 19.02”X 7.76”X 6.02”
Weight: unit 19.8 lbs boxed 24 lbs
UL maximum recommended per outlet 1500W
This inverter requires 2 sets of 4 AWT cable if you are going to run at 8000 watts.
