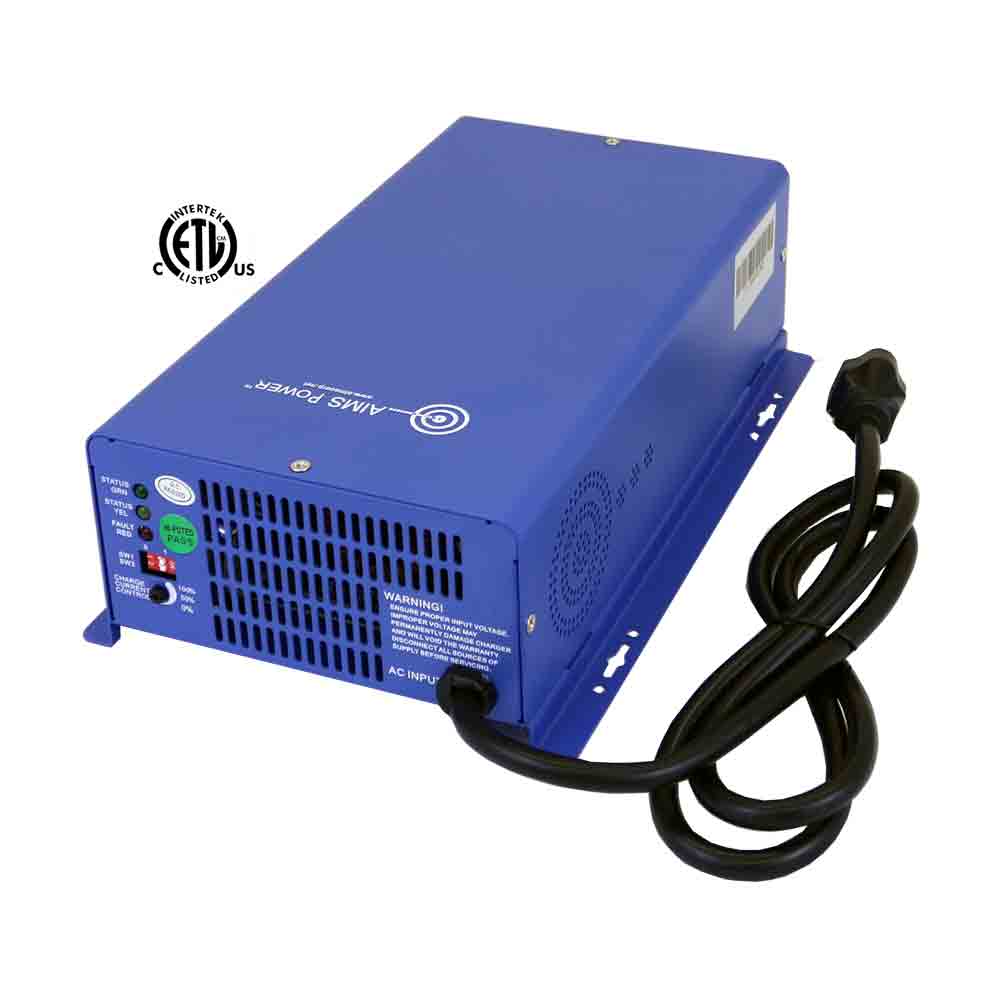

AC Converter / Battery Charger 12/24 VDC Smart Charger 75 Amps – Listed to UL 458/CSA
AC Converter / Battery Charger 12/24 VDC Smart Charger 75 Amps – Listed to UL 458/CSA
Roll over image to zoom in
Click to open expanded view

AC Converter / Battery Charger 12/24 VDC Smart Charger 75 Amps – Listed to UL 458/CSA

$209.00

Out of stock

Boasting versatility and a high charging capacity, the AIMS 12V and 24V AC 75-Amp Converter/Battery Charger from AIMS Power provides wide latitude to meet the demands of many applications. This unit’s broad AC input range of 70VAC to 145VAC can handle many applications and battery technologies. It automatically detects 12VDC and 24VDC battery banks. Useful with generators and shore power, it can charge batteries including open lead acid, AGM, gel and LiFeP04.

SKU: AP-CON120AC12/24DC Category:

$209.00

Description

  • Large charging capacity design 75 Amp for 12Vdc charges a 100 amp hour battery in under an hour up to 90% charge
  • Power supply up to 75 amps at 12Vdc
  • Three stage smart charger with variable charging voltage algorithm for maximizing  battery life (bulk, absorb and float)
  • 4 pre-programmed charging algorithms using the dip switches for the most common charging profiles
  • Charges lead acid, AGM, GEL and LiFPO4 batteries
  • Adjustable charge current control dial to safely charge smaller battery (s)
  • Wide input voltage range, 70Vac to 145Vac for unstable inputs
  • Reverse polarity, over voltage, under voltage, short circuit, over temperature  protections
  • High AC to DC converting efficiency design  >80%
  • Thermal and load based cooling fan
  • Includes battery temperature sensor port to help maintain the life of the battery(s) (battery temperature sensor not included)
  • AC input cord – 4ft
  • Listed to UL 458 and CSA 22.2 NO. 107.1
  • 2 Year warranty
